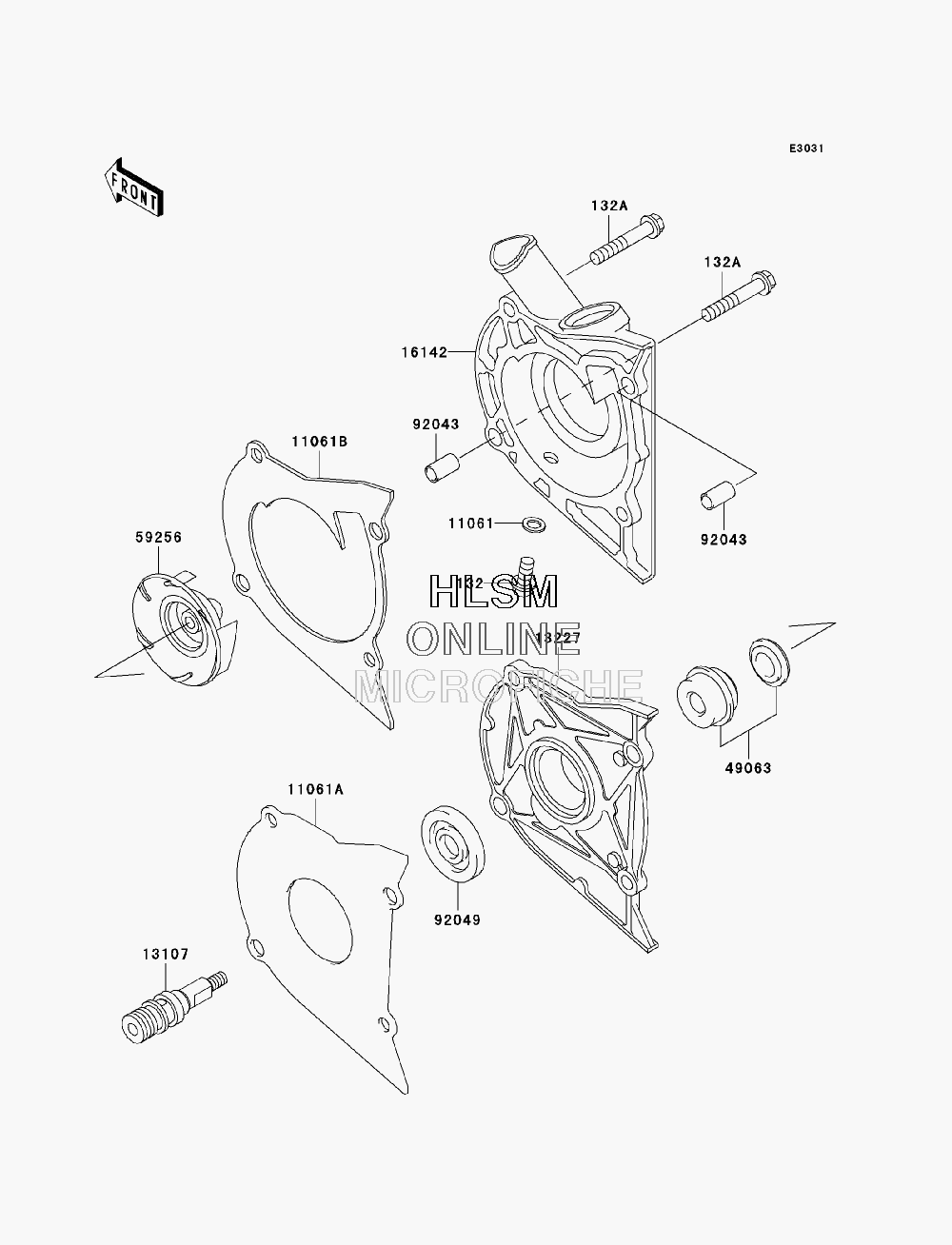

WATER PUMP для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132E0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
1106111061-0107 GASKETGASKET
-
11061A11061-0276 GASKET, PUMP HOUSINGGASKET, PUMP HOUSING
-
11061B11061-0277 GASKET, PUMP COVERGASKET, PUMP COVER
-
1310713107-1203 SHAFT, IMPELLERSHAFT, IMPELLER
-
1322713227-1116 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1614216142-1130 COVER-PUMPCOVER-PUMP
-
4906349063-1056 SEAL-MECHANICALSEAL-MECHANICAL
-
5925659256-1060 IMPELLERIMPELLER
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1215 SEAL-OIL, SC12365SEAL-OIL, SC12365
-
132132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132E0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
1106111061-0107 GASKETGASKET
-
11061A11061-0276 GASKET, PUMP HOUSINGGASKET, PUMP HOUSING
-
11061B11061-0277 GASKET, PUMP COVERGASKET, PUMP COVER
-
1310713107-1203 SHAFT, IMPELLERSHAFT, IMPELLER
-
1322713227-1116 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1614216142-1130 COVER-PUMPCOVER-PUMP
-
4906349063-1056 SEAL-MECHANICALSEAL-MECHANICAL
-
5925659256-1060 IMPELLERIMPELLER
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1215 SEAL-OIL, SC12365SEAL-OIL, SC12365
