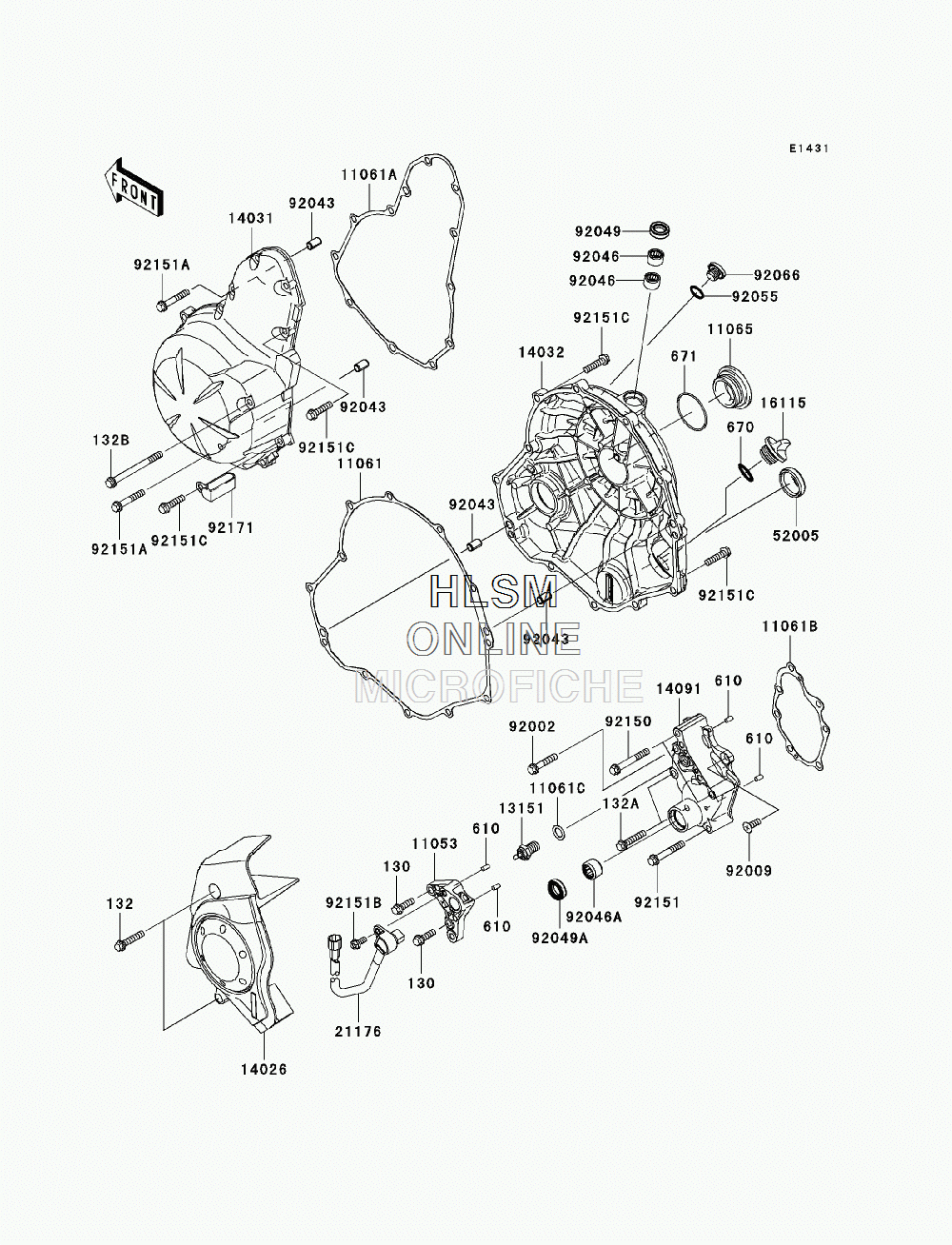

ENGINE COVER для Kawasaki ER-6N (ER650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132BB0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132A132BC0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132B132BC0670 BOLT-FLANGED-SMALL, 6X70BOLT-FLANGED-SMALL, 6X70
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670B2020 O-RING, 20MMO-RING, 20MM
-
671671B2540 O-RING, 40MMO-RING, 40MM
-
1105311053-1739 BRACKETBRACKET
-
1106111061-0164 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061A11061-0165 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061B11061-0166 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
11061C11061-0373 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
1106511065-0281 CAPCAP
-
1315113151-1102 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1402614026-0071 COVER-CHAINCOVER-CHAIN
-
1403114031-0096 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0115 COVER-CLUTCHCOVER-CLUTCH
-
1409114091-1673 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
2117621176-0065 SENSOR, SPEEDSENSOR, SPEED
-
5200552005-0071 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200292002-1534 BOLT, 6X30BOLT, 6X30
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1010 BEARING-NEEDLE, HK1210BEARING-NEEDLE, HK1210
-
92046A92046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
-
92049A92049-1519 SEAL-OIL, TC13225.5SEAL-OIL, TC13225.5
-
9205592055-1011 O-RING, 13.0X1.9O-RING, 13.0X1.9
-
9206692066-0131 PLUG, 12X9.1PLUG, 12X9.1
-
9215092150-1884 BOLT, 6X45BOLT, 6X45
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1135 BOLT, 6X35BOLT, 6X35
-
92151B92151-1305 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
92151C92151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9217192171-1873 CLAMPCLAMP
