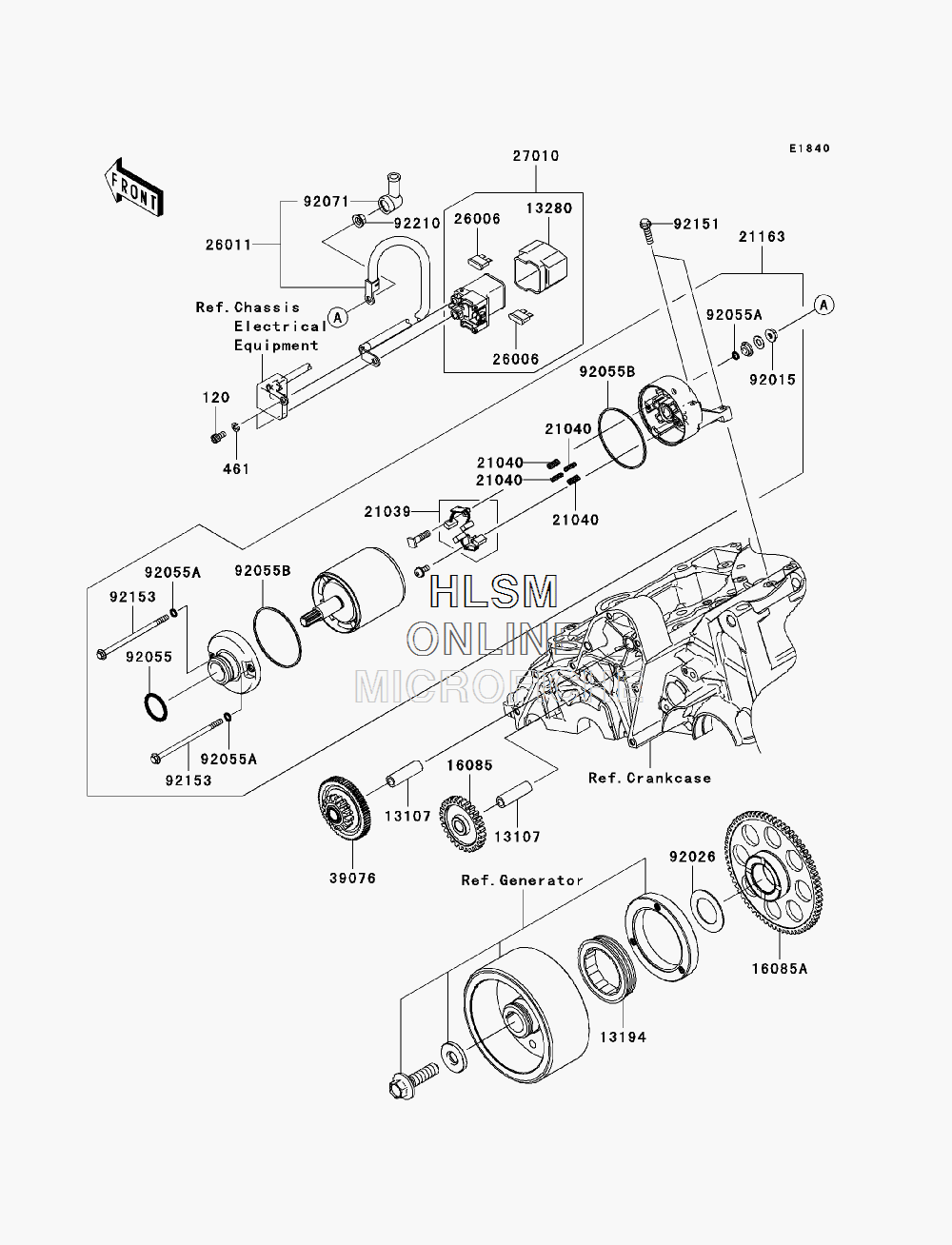

STARTER MOTOR для Kawasaki ER-6N (ER650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CB0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
461461DB0600 WASHER-SPRING, 6MM (BLACK)WASHER-SPRING, 6MM (BLACK)
-
1310713107-1106 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1319413194-1083 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-0301 HOLDERHOLDER
-
1608516085-0074 GEAR, IDLE, 28TGEAR, IDLE, 28T
-
16085A16085-0076 GEAR, 67TGEAR, 67T
-
2103921039-0004 BRUSH, CARBONBRUSH, CARBON
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0040 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, BLADE, 30A (GREEN)FUSE, BLADE, 30A (GREEN)
-
2601126011-0205 WIRE-LEADWIRE-LEAD
-
2701027010-0099 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0006 LIMITER, 16T & 66TLIMITER, 16T & 66T
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202692026-087 SPACER, 29.1X47.5X1.2SPACER, 29.1X47.5X1.2
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9207192071-0024 GROMMETGROMMET
-
9215192151-1937 BOLT, 6X22BOLT, 6X22
-
9215392153-1783 BOLTBOLT
-
9221092210-0188 NUT, 6MMNUT, 6MM
