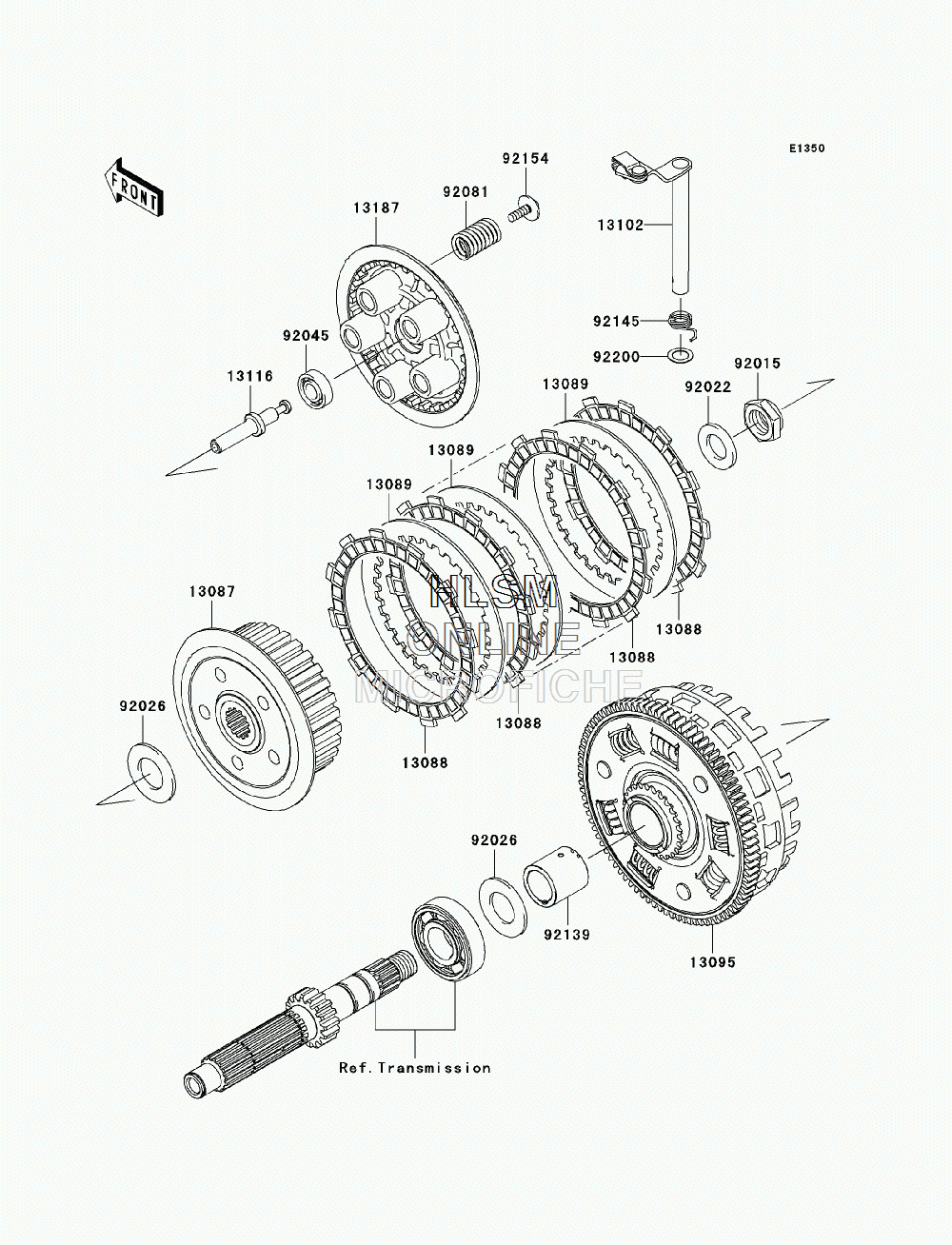

CLUTCH для Kawasaki ER-6N (EUROPEAN) (ER650CBF) - 2011 года выпуска
-
№АртикулНазвание
-
1308713087-0046 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1105 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0016 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
1309513095-0115 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0037 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0035 ROD-PUSHROD-PUSH
-
1318713187-0017 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
9204592045-1235 BEARING-BALL, 6001C3ML01BEARING-BALL, 6001C3ML01
-
9208192081-1033 SPRING, CLUTCHSPRING, CLUTCH
-
9213992139-0106 BUSHINGBUSHING
-
9214592145-0066 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9215492154-0079 BOLT, UPSET-WP, 6X20BOLT, UPSET-WP, 6X20
-
9220092200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- • CLUTCH
- COLOR INFO
- COWLING
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (M.F.S.GREEN)
- DECALS (M.S.BLACK)
- DECALS (ORANGE) (P.WHITE)
- ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SHROUD
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAIL COVER
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PIPE
- WATER PUMP
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
