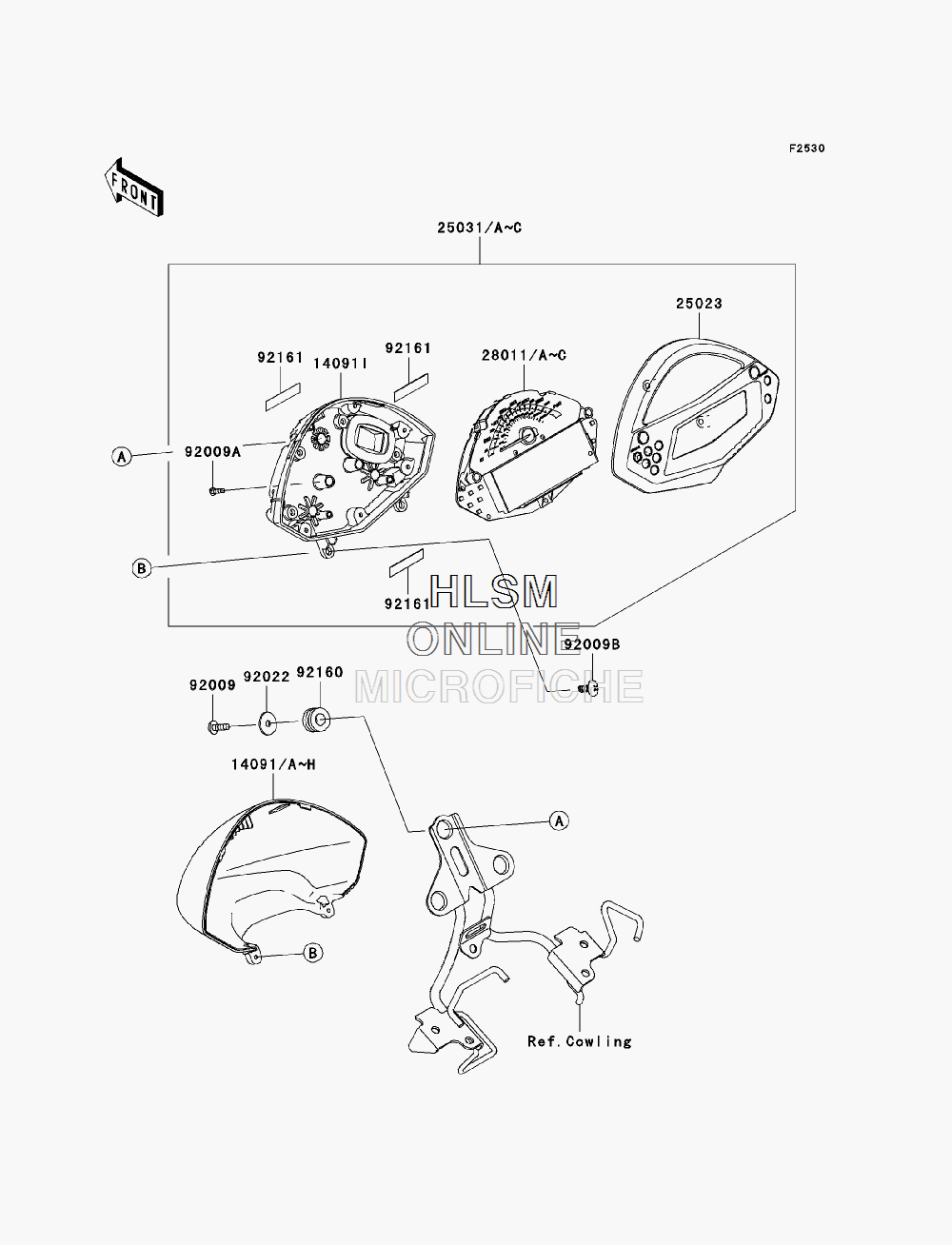

METER(S) для Kawasaki ER-6N (EUROPEAN) (ER650CBF) - 2011 года выпуска
-
№АртикулНазвание
-
1409114091-1588-G3 COVER, METER (P.WHITE) (FOR G3)COVER, METER (P.WHITE) (FOR G3)
-
14091F14091-1588-15Z COVER, METER (M.S.BLACK) (FOR 15Z)COVER, METER (M.S.BLACK) (FOR 15Z)
-
14091G14091-1588-35A COVER, METER (M.F.S.GREEN) (FOR 35A)COVER, METER (M.F.S.GREEN) (FOR 35A)
-
14091I14091-1713 COVER, METER (LOWER)COVER, METER (LOWER)
-
2502325023-0046 COVER-METER CASECOVER-METER CASE
-
25031B25031-0295 METER-ASSY, KPHMETER-ASSY, KPH
-
25031C25031-0296 METER-ASSY, MPHMETER-ASSY, MPH
-
28011B28011-0157 METER, SPEED & LCDMETER, SPEED & LCD
-
28011C28011-0158 METER, SPEED & LCDMETER, SPEED & LCD
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009A92009-1391 SCREW, TAPPING, 3X16SCREW, TAPPING, 3X16
-
92009B92009-1593 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9202292022-1405 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9216092160-1167 DAMPERDAMPER
-
9216192161-0354 DAMPERDAMPER
