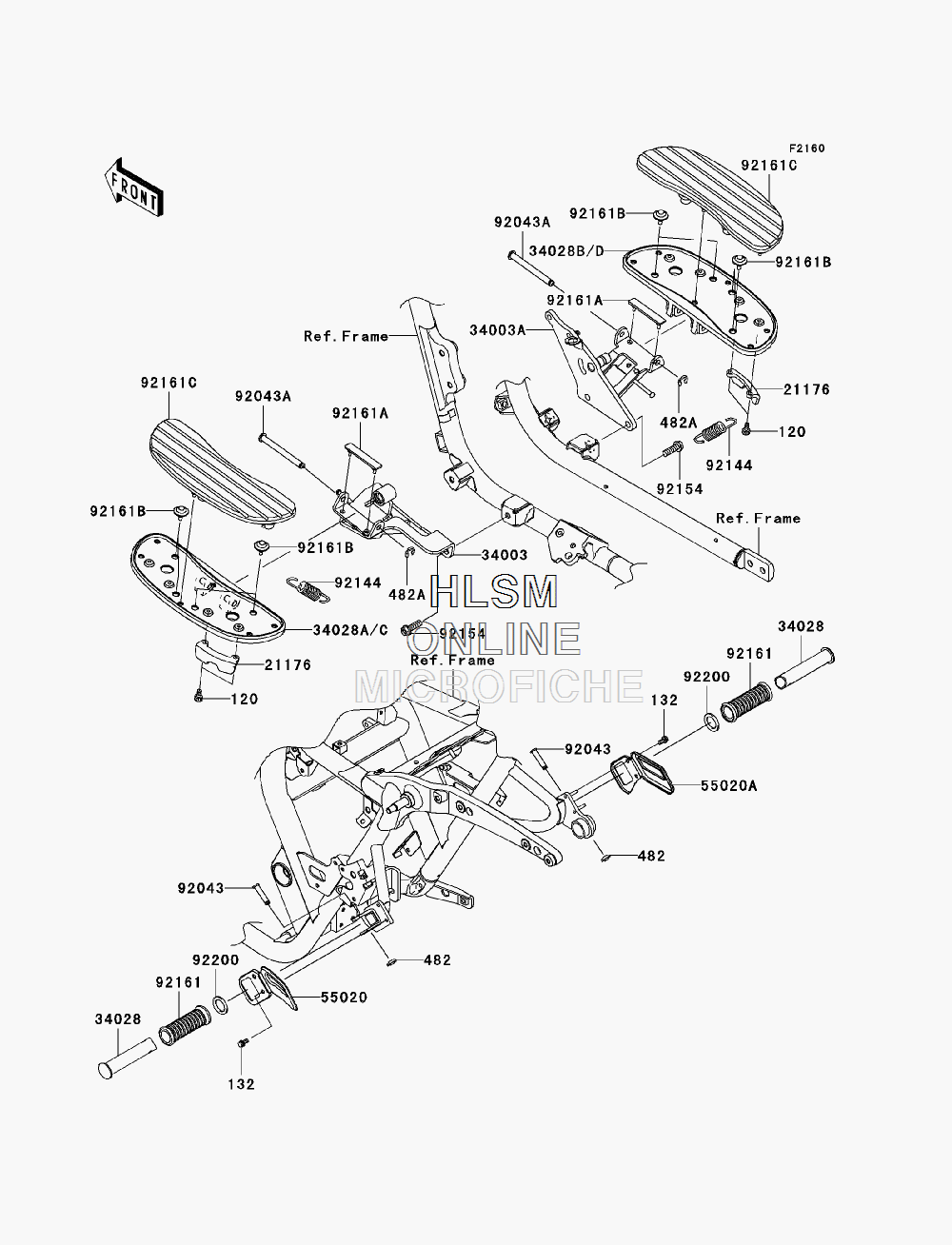

FOOTRESTS для Kawasaki VULCAN 1700 CLASSIC (VN1700ECF) - 2012 года выпуска
-
№АртикулНазвание
-
120120CB0616 BOLT-SOCKET,6X16BOLT-SOCKET,6X16
-
132132BB0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
482A482EA8000 CIRCLIP-TYPE-E,8MMCIRCLIP-TYPE-E,8MM
-
2117621176-0123 SENSOR,BANKSENSOR,BANK
-
3400334003-0085-18R HOLDER-STEP, FRONT, LEFT HAND,F.S.BLACKHOLDER-STEP, FRONT, LEFT HAND,F.S.BLACK
-
34003A34003-0086-18R HOLDER-STEP, FRONT, RIGHT HAND,F.S.BLACKHOLDER-STEP, FRONT, RIGHT HAND,F.S.BLACK
-
3402834028-0017 STEP, REARSTEP, REAR
-
34028C34028-0143 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028D34028-0144 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
5502055020-0485-18R GUARD,STEP, LEFT HAND,F.S.BLACKGUARD,STEP, LEFT HAND,F.S.BLACK
-
55020A55020-0486-18R GUARD,STEP, RIGHT HAND,F.S.BLACKGUARD,STEP, RIGHT HAND,F.S.BLACK
-
9204392043-1339 PIN,8X36.5PIN,8X36.5
-
92043A92043-1707 PIN,10X98.5PIN,10X98.5
-
9214492144-1266 SPRINGSPRING
-
9215492154-0284 BOLT,FLANGED,10X30BOLT,FLANGED,10X30
-
9216192161-0232 DAMPER,STEPDAMPER,STEP
-
92161A92161-0746 DAMPER,STEP HOLDERDAMPER,STEP HOLDER
-
92161B92161-0766 DAMPER,STEPDAMPER,STEP
-
92161C92161-0770 DAMPER,FOOT BOARDDAMPER,FOOT BOARD
-
9220092200-1482 WASHER,22.5X33X2.3WASHER,22.5X33X2.3
