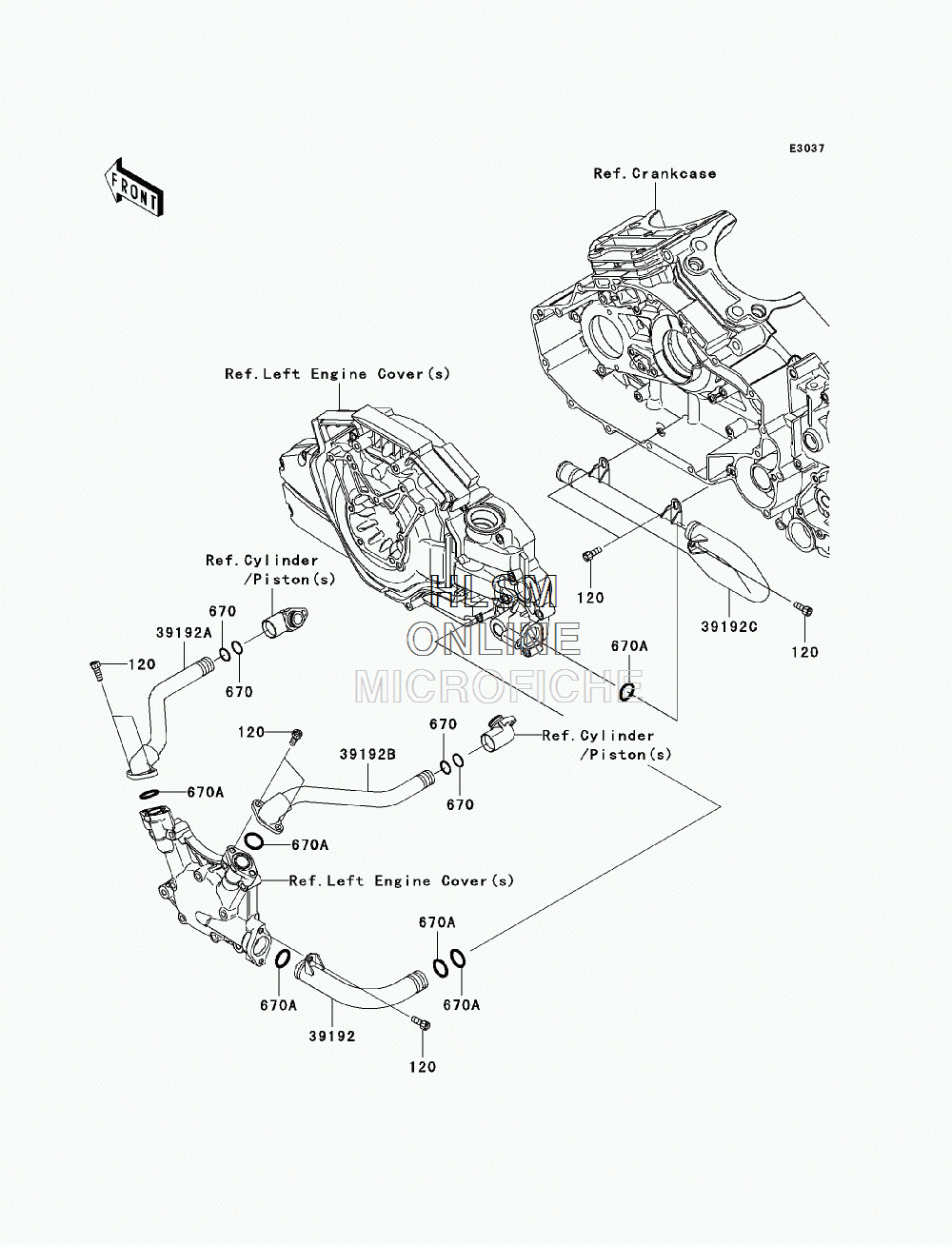

WATER PIPE для Kawasaki VULCAN 1700 CLASSIC (VN1700ECF) - 2012 года выпуска
-
№АртикулНазвание
-
120120CA0616 BOLT-SOCKET,6X16BOLT-SOCKET,6X16
-
670670B2014 O RING,14MMO RING,14MM
-
670A670B2018 O RING,18MMO RING,18MM
-
3919239192-0094 PIPE-WATER,COVER-W/PPIPE-WATER,COVER-W/P
-
39192A39192-0095 PIPE-WATER,COVER-FRONT CYL.PIPE-WATER,COVER-FRONT CYL.
-
39192B39192-0096 PIPE-WATER,COVER-REAR CYL.PIPE-WATER,COVER-REAR CYL.
-
39192C39192-0133 PIPE-WATER,W/P INLETPIPE-WATER,W/P INLET
