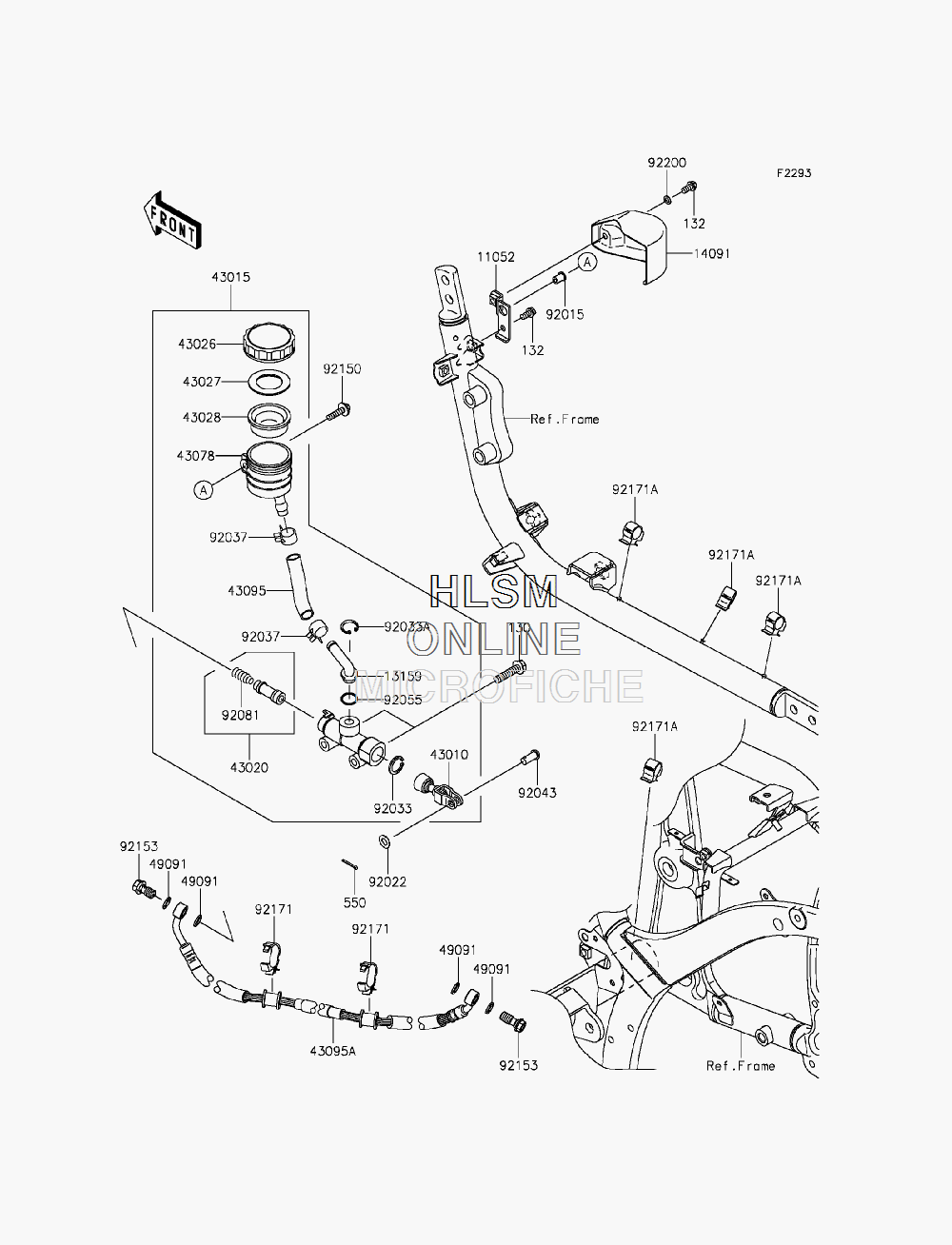

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 900 CUSTOM (VN900CCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130BB0835 BOLT-FLANGED,8X35BOLT-FLANGED,8X35
-
132132BB0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1105211052-1305 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409114091-0536-18R COVER, RESERVOIR TANK,(F.S.BLACK)COVER, RESERVOIR TANK,(F.S.BLACK)
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0081 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4307843078-1178 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0306 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0682 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9201592015-1700 NUTNUT
-
9202292022-1582 WASHER,8.5X16X1.2WASHER,8.5X16X1.2
-
9203392033-0079 RING-SNAP,20.9X24.6X1.2RING-SNAP,20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9203792037-1547 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9204392043-1013 PIN,8X16PIN,8X16
-
9205592055-0741 RING-O,14.8X2.4RING-O,14.8X2.4
-
9208192081-1737 SPRING,MASTER CYLINDERSPRING,MASTER CYLINDER
-
9215092150-1829 BOLT,6X25BOLT,6X25
-
9215392153-1419 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217192171-0782 CLAMPCLAMP
-
92171A92171-1424 CLAMP,DIA=15CLAMP,DIA=15
-
9220092200-1465 WASHER,6.2X10X1WASHER,6.2X10X1
