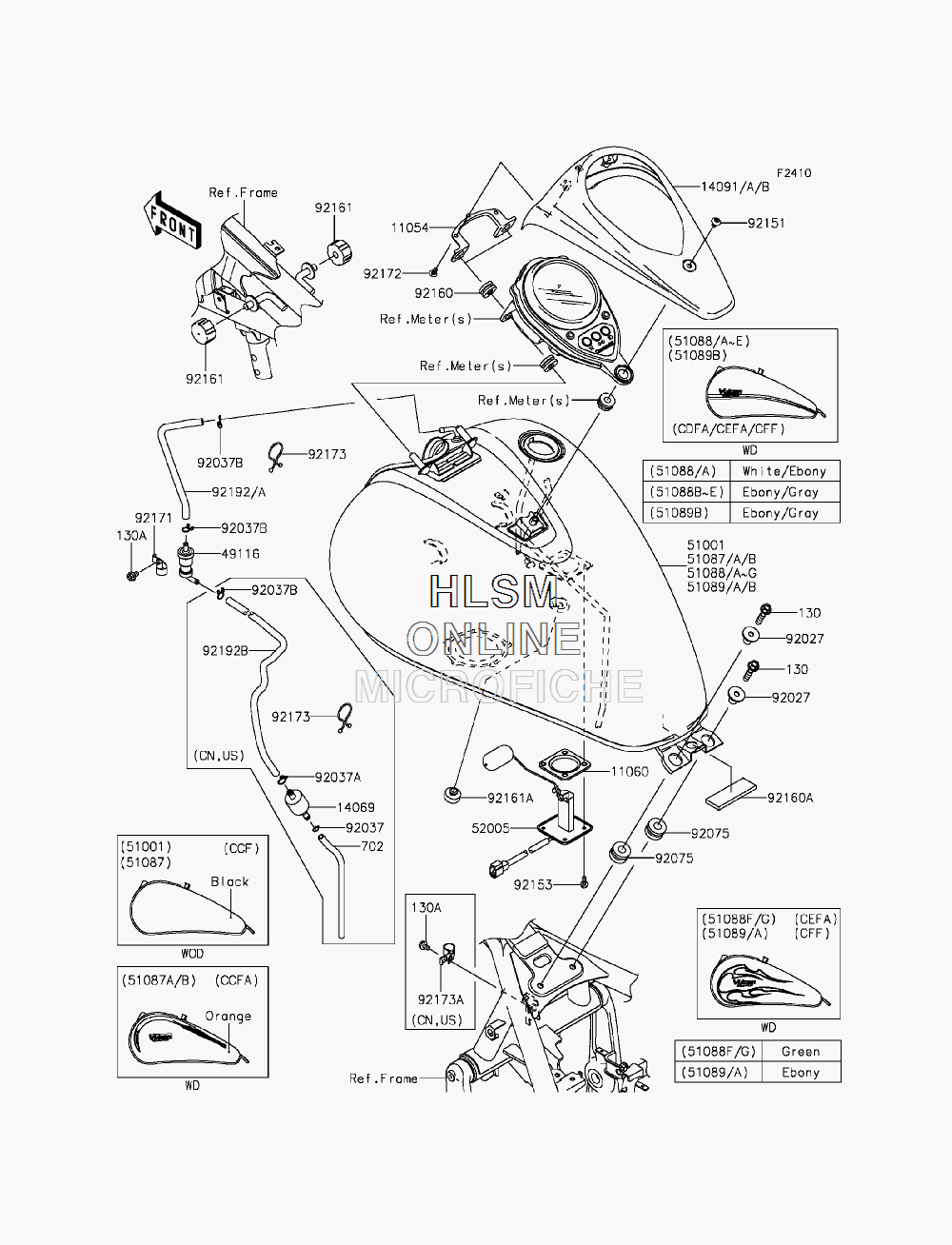

FUEL TANK для Kawasaki VULCAN 900 CUSTOM (VN900CCF) - 2012 года выпуска
-
№АртикулНазвание
-
1105411054-0034 BRACKET,METER, FRONTBRACKET,METER, FRONT
-
1106011060-1952 GASKET,FUEL GAUGEGASKET,FUEL GAUGE
-
1406914069-1004 BREATHER,FUEL TANK (EXCEPT CALIF.)BREATHER,FUEL TANK (EXCEPT CALIF.)
-
1409114091-0516 COVER,METERCOVER,METER
-
4911649116-0014 VALVE-ASSY,CHECKVALVE-ASSY,CHECK
-
5100151001-0336-20 TANK-COMP-FUEL,(P.P.BLACK) (EXCEPT CALIF.)TANK-COMP-FUEL,(P.P.BLACK) (EXCEPT CALIF.)
-
5108751087-5106-20 TANK-COMP-FUEL,(P.P.BLACK) (CALIF. ONLY)TANK-COMP-FUEL,(P.P.BLACK) (CALIF. ONLY)
-
5200552005-0718 GAUGE,FUELGAUGE,FUEL
-
9202792027-1780 COLLAR,L=19.3COLLAR,L=19.3
-
9203792037-010 CLAMP,TUBE (EXCEPT CALIF.)CLAMP,TUBE (EXCEPT CALIF.)
-
92037A92037-1104 CLAMP,HOSE (EXCEPT CALIF.)CLAMP,HOSE (EXCEPT CALIF.)
-
92037B92037-147 CLAMP,TUBE (CALIF. ONLY)CLAMP,TUBE (CALIF. ONLY)
-
92037B92037-147 CLAMP,TUBE (EXCEPT CALIF.)CLAMP,TUBE (EXCEPT CALIF.)
-
9207592075-1736 DAMPERDAMPER
-
9215192151-1940 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9215392153-1421 BOLT,FLANGED,5X12BOLT,FLANGED,5X12
-
9216092160-1162 DAMPERDAMPER
-
92160A92160-1323 DAMPERDAMPER
-
9216192161-0293 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92161A92161-1065 DAMPERDAMPER
-
9217192171-0595 CLAMPCLAMP
-
9217292172-0006 SCREW,TAPPING,5X14SCREW,TAPPING,5X14
-
9217392173-0848 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217392173-0848 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92173A92173-0925 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9219292192-1107 TUBE,BREATHER,L=220 (EXCEPT CALIF.)TUBE,BREATHER,L=220 (EXCEPT CALIF.)
-
92192A92192-1108 TUBE,BREATHER,(BLUE),L=220 (CALIF. ONLY)TUBE,BREATHER,(BLUE),L=220 (CALIF. ONLY)
-
92192B92192-1129 TUBE,5X10X500/350 (EXCEPT CALIF.)TUBE,5X10X500/350 (EXCEPT CALIF.)
-
130130BA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
130A130BB0610 BOLT-FLANGED,6X10 (CALIF. ONLY)BOLT-FLANGED,6X10 (CALIF. ONLY)
-
130A130BB0610 BOLT-FLANGED,6X10 (EXCEPT CALIF.)BOLT-FLANGED,6X10 (EXCEPT CALIF.)
-
702702A06200 TUBE-RUBBER,6X200 (EXCEPT CALIF.)TUBE-RUBBER,6X200 (EXCEPT CALIF.)
