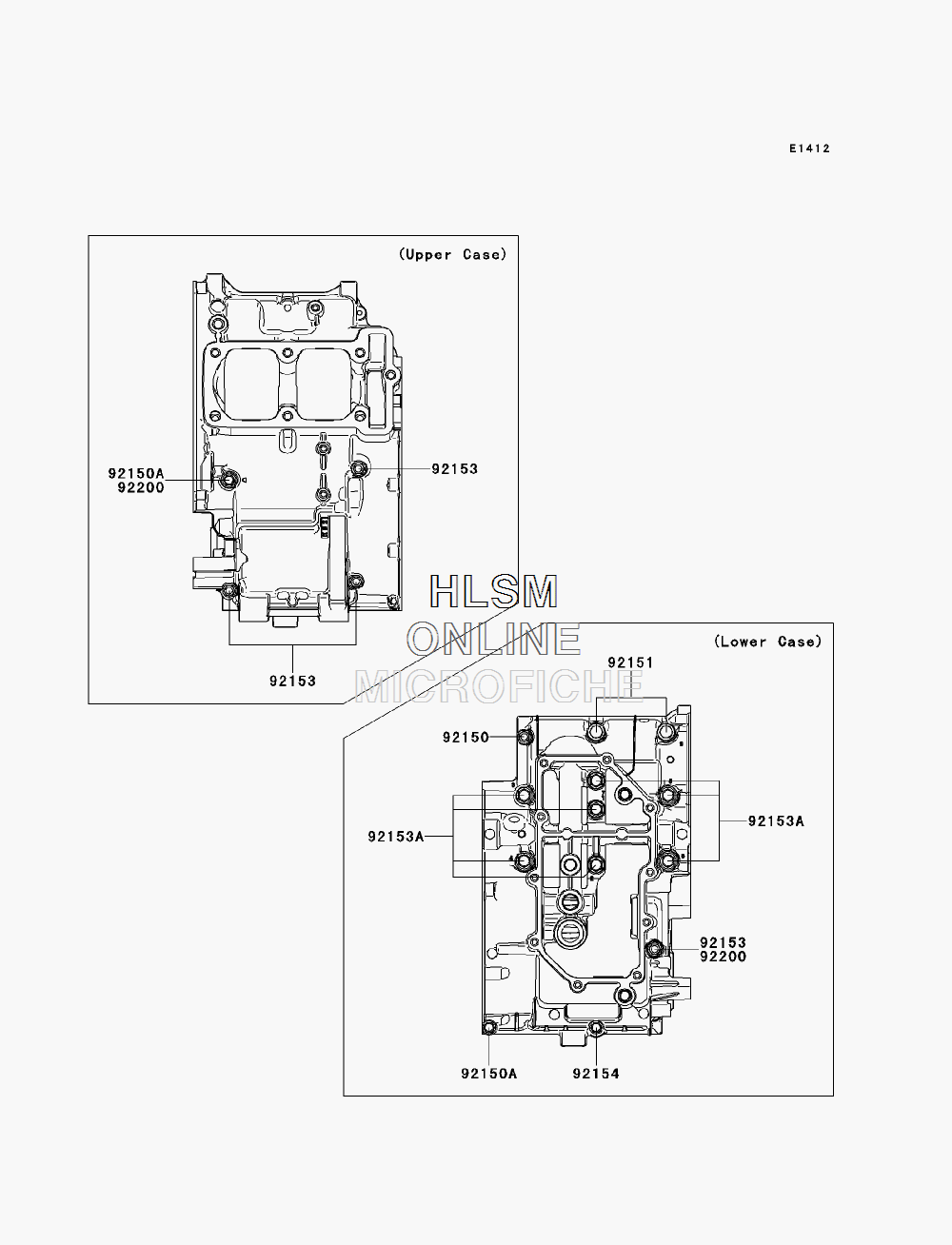

CRANKCASE BOLT PATTERN для Kawasaki NINJA 300 (CANADIAN) (EX300BDF ) - 2013 года выпуска
-
№АртикулНазвание
-
9215092150-1301 BOLT, 6X38BOLT, 6X38
-
92150A92150-1548 BOLT, 6X60BOLT, 6X60
-
9215192151-1462 BOLT, 8X73BOLT, 8X73
-
9215392153-0927 BOLT, 6X85, (WHITE)BOLT, 6X85, (WHITE)
-
92153A92153-1632 BOLT, FLANGED, 8X90BOLT, FLANGED, 8X90
-
9215492154-1189 BOLT, FLANGED, 6X135BOLT, FLANGED, 6X135
-
9220092200-0788 WASHER, 6.3X13.5X1WASHER, 6.3X13.5X1
