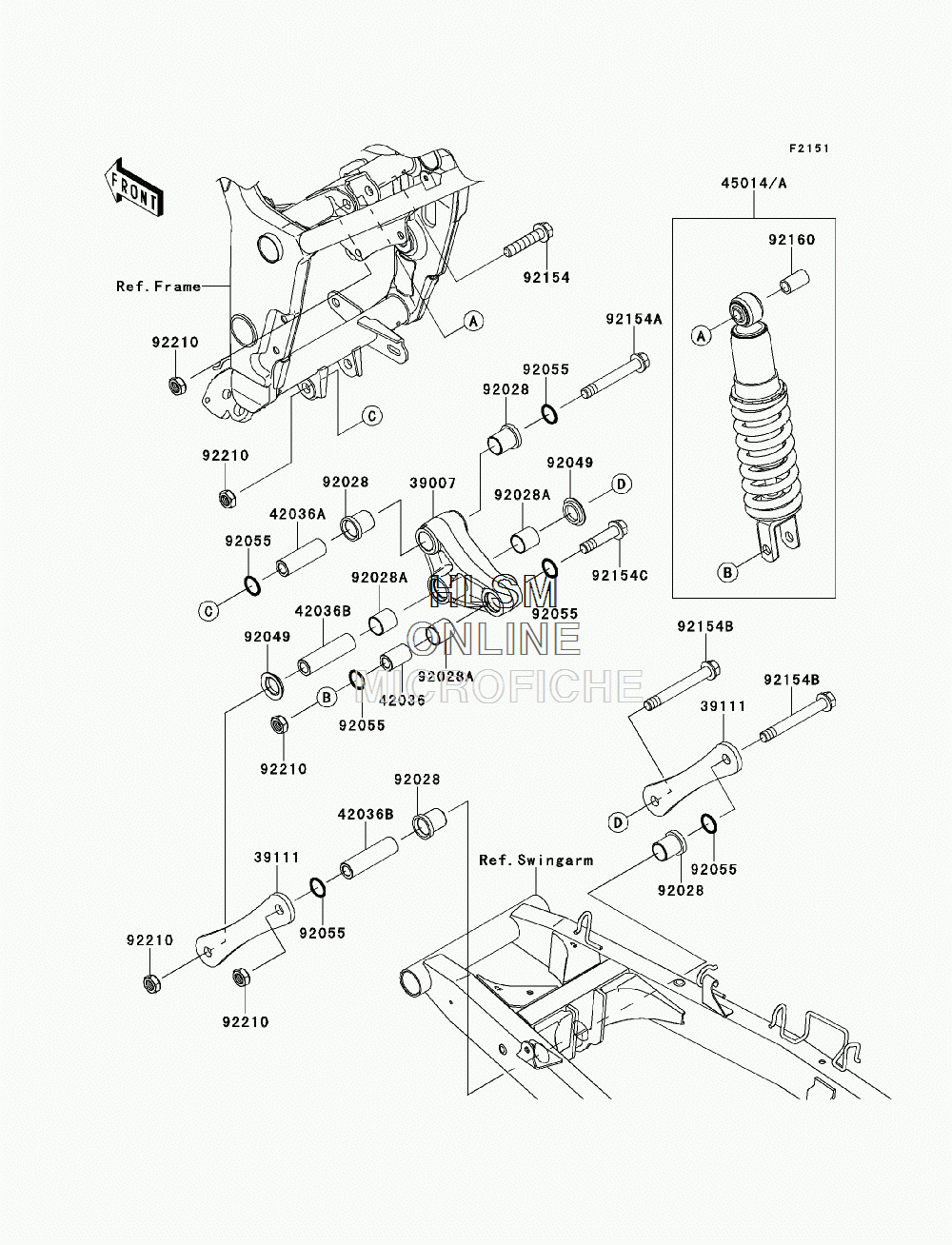

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA 300 (CANADIAN) (EX300BDF ) - 2013 года выпуска
-
№АртикулНазвание
-
3900739007-0355 ARM-SUSP, UNI TRAKARM-SUSP, UNI TRAK
-
3911139111-0076 ROD-TIE, SUSPENSIONROD-TIE, SUSPENSION
-
4203642036-1077 SLEEVE, 12.1X20X32SLEEVE, 12.1X20X32
-
42036A42036-1078 SLEEVE, ARM, FRONTSLEEVE, ARM, FRONT
-
42036B42036-1102 SLEEVE, 12.1X20X74SLEEVE, 12.1X20X74
-
4501445014-0365-23J SHOCK ABSORBER, SPG (BLACK) + BODY (BLACK)SHOCK ABSORBER, SPG (BLACK) + BODY (BLACK)
-
9202892028-1597 BUSHINGBUSHING
-
92028A92028-1598 BUSHINGBUSHING
-
9204992049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
9205592055-0732 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9215492154-0362 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
92154A92154-0940 BOLT, FLANGED, 12X86BOLT, FLANGED, 12X86
-
92154B92154-0941 BOLT, FLANGED, 12X98BOLT, FLANGED, 12X98
-
92154C92154-0942 BOLT, FLANGED, 12X52BOLT, FLANGED, 12X52
-
9216092160-1161 DAMPER, SHOCK ABSORBERDAMPER, SHOCK ABSORBER
-
9221092210-1247 NUT, LOCK, 12MMNUT, LOCK, 12MM
