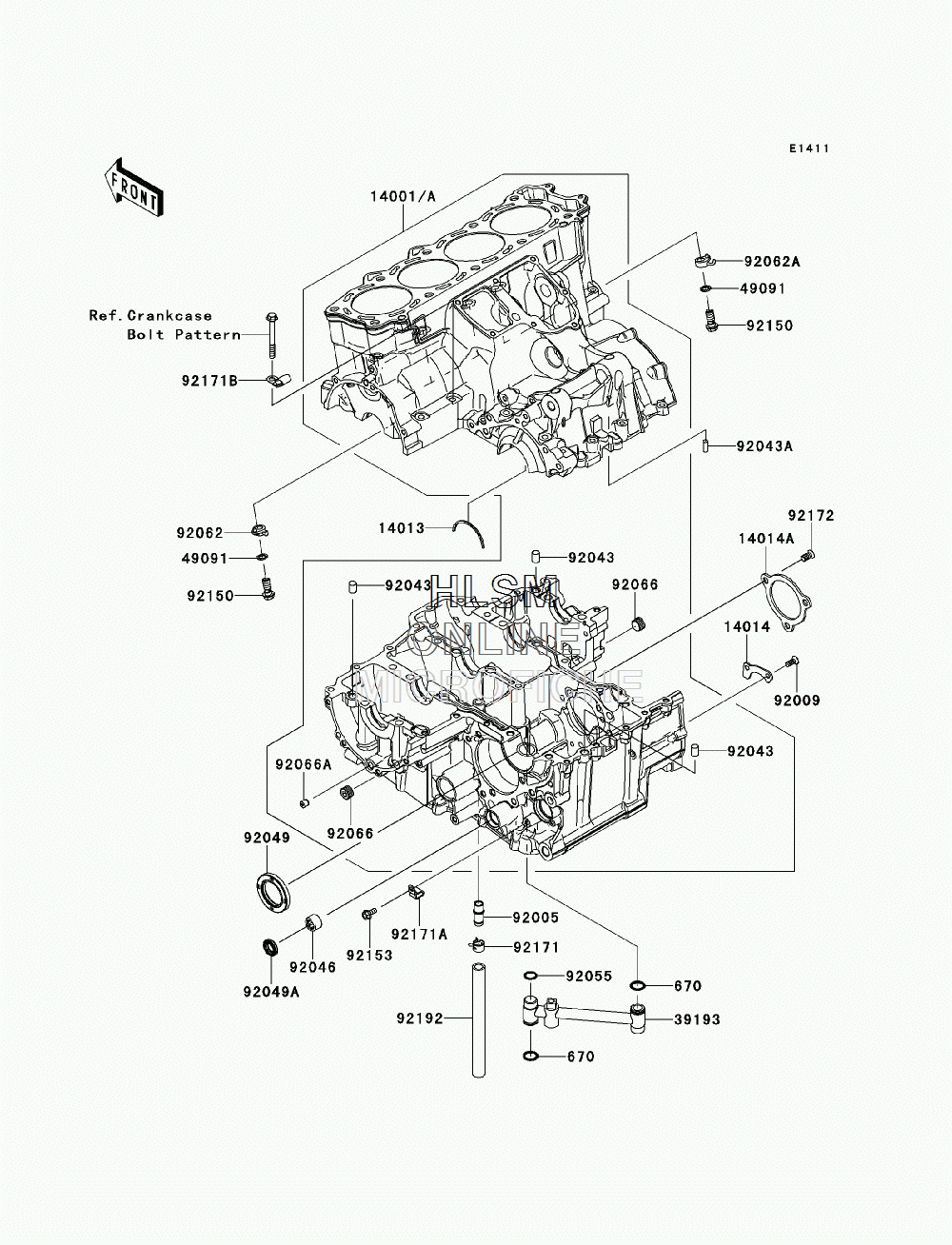

CRANKCASE для Kawasaki NINJA ZX-14R(ZX1400EDFA) - 2013 года выпуска
-
№АртикулНазвание
-
670670D2016 O RING, 16MMO RING, 16MM
-
14001A14001-0595 SET-CRANKCASE (ZXT40EE003021 AND ABOVE)SET-CRANKCASE (ZXT40EE003021 AND ABOVE)
-
1401314013-1051 RING-POSITIONRING-POSITION
-
1401414014-0023 PLATE-POSITIONPLATE-POSITION
-
14014A14014-0038 PLATE-POSITIONPLATE-POSITION
-
3919339193-0576 PIPE-OILPIPE-OIL
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200592005-0043 FITTINGFITTING
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9204392043-1506 PIN, 10X14PIN, 10X14
-
92043A92043-1690 PIN, 6X16PIN, 6X16
-
9204692046-0043 BEARING-NEEDLE, HK1412FMBEARING-NEEDLE, HK1412FM
-
9204992049-0068 SEAL-OIL, TC38 57 8SEAL-OIL, TC38 57 8
-
92049A92049-1520 SEAL-OIL, TC14245SEAL-OIL, TC14245
-
9205592055-0065 RING-O, 13.8X1.9RING-O, 13.8X1.9
-
9206292062-0560 NOZZLENOZZLE
-
92062A92062-0561 NOZZLENOZZLE
-
9206692066-0064 PLUGPLUG
-
92066A92066-0066 PLUGPLUG
-
9215092150-1641 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
9215392153-1571 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9217192171-0533 CLAMPCLAMP
-
92171A92171-0534 CLAMPCLAMP
-
92171B92171-0689 CLAMPCLAMP
-
9217292172-0323 SCREW, CSK-CROS, 8X16SCREW, CSK-CROS, 8X16
-
9219292192-0254 TUBE, 11X17X180TUBE, 11X17X180
