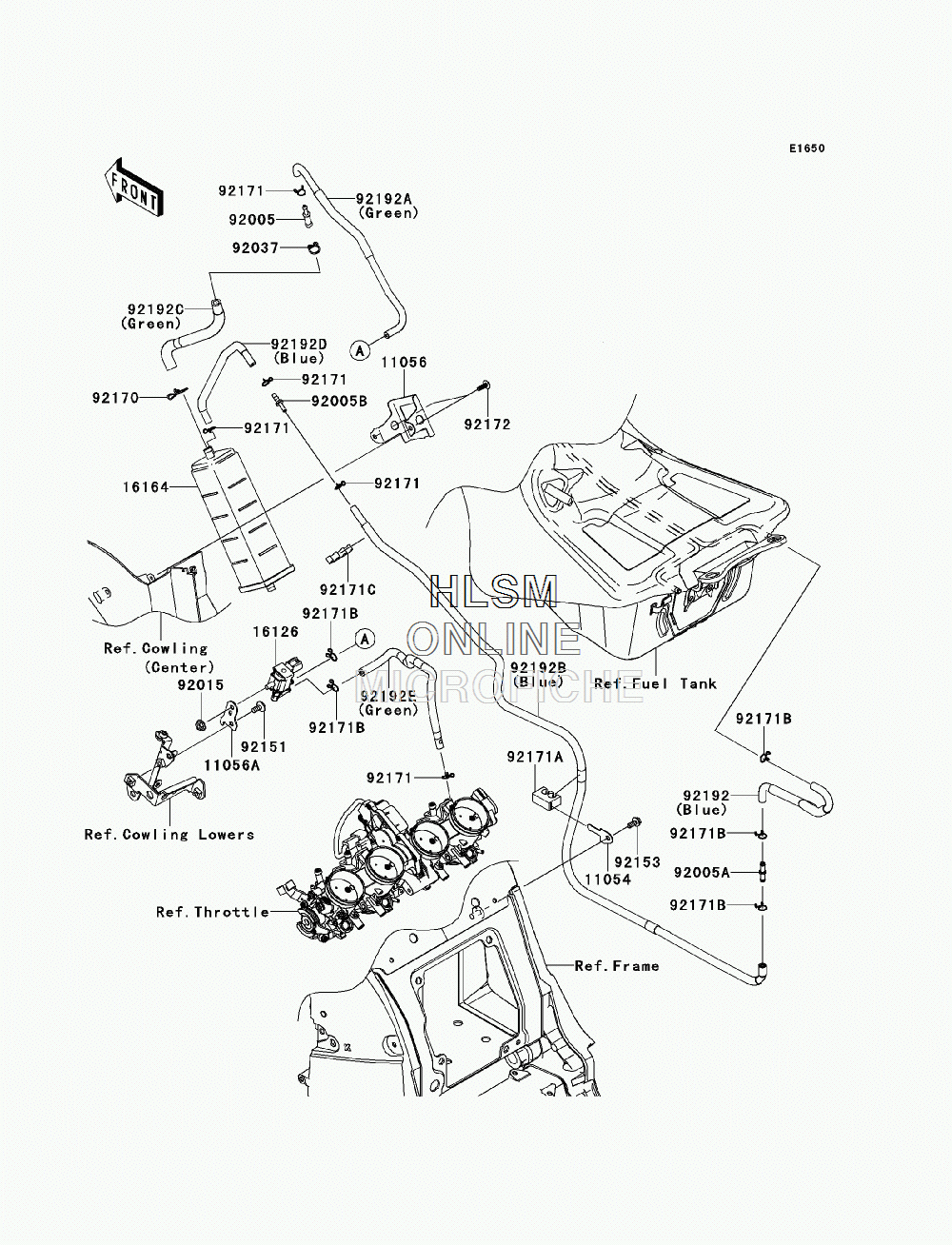

FUEL EVAPORATIVE SYSTEM для Kawasaki NINJA ZX-14R(ZX1400EDFA) - 2013 года выпуска
-
№АртикулНазвание
-
1105411054-0464 BRACKET (CALIF. ONLY)BRACKET (CALIF. ONLY)
-
1105611056-1176 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
11056A11056-1739 BRACKET, SOLENOID VALVE (CALIF. ONLY)BRACKET, SOLENOID VALVE (CALIF. ONLY)
-
1612616126-0705 VALVE, SOLENOID (CALIF. ONLY)VALVE, SOLENOID (CALIF. ONLY)
-
1616416164-0009 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
9200592005-0032 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
92005A92005-0721 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
92005B92005-1206 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9201592015-1367 NUT, FLANGED, 6MM (CALIF. ONLY)NUT, FLANGED, 6MM (CALIF. ONLY)
-
9203792037-1271 CLAMP, 12.5MM (CALIF. ONLY)CLAMP, 12.5MM (CALIF. ONLY)
-
9215192151-1654 BOLT, SOCKET, 6X14 (CALIF. ONLY)BOLT, SOCKET, 6X14 (CALIF. ONLY)
-
9215392153-1571 BOLT, FLANGED, 6X14 (CALIF. ONLY)BOLT, FLANGED, 6X14 (CALIF. ONLY)
-
9217092170-1695 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217192171-0576 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-0693 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171B92171-0718 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171C92171-1213 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217292172-0175 SCREW, TAPPING, 5X16 (CALIF. ONLY)SCREW, TAPPING, 5X16 (CALIF. ONLY)
-
9219292192-0512 TUBE, TANK-CANISTER, (BLUE) (CALIF. ONLY)TUBE, TANK-CANISTER, (BLUE) (CALIF. ONLY)
-
92192A92192-1056 TUBE, 5X9.7X331, (GREEN) (CALIF. ONLY)TUBE, 5X9.7X331, (GREEN) (CALIF. ONLY)
-
92192B92192-1058 TUBE, 4X9.2X1105, (BLUE) (CALIF. ONLY)TUBE, 4X9.2X1105, (BLUE) (CALIF. ONLY)
-
92192C92192-1152 TUBE, CANISTER-VALVE, (GREEN) (CALIF. ONLY)TUBE, CANISTER-VALVE, (GREEN) (CALIF. ONLY)
-
92192D92192-1153 TUBE, 4X9.2X240, (BLUE) (CALIF. ONLY)TUBE, 4X9.2X240, (BLUE) (CALIF. ONLY)
-
92192E92192-1166 TUBE, VALVE-THROTTLE, (GREEN) (CALIF. ONLY)TUBE, VALVE-THROTTLE, (GREEN) (CALIF. ONLY)
