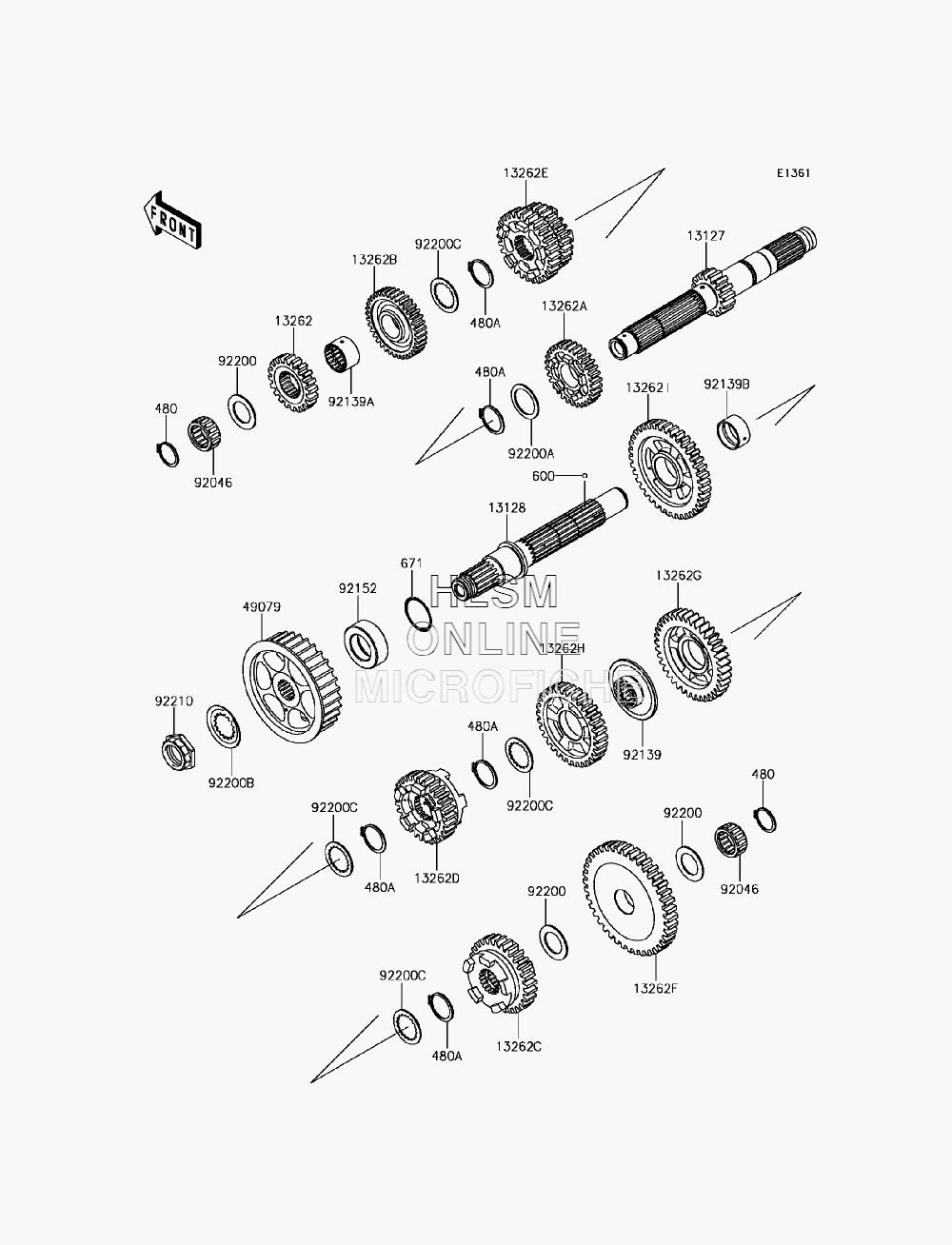

TRANSMISSION для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BEF) - 2014 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL, 5/32BALL-STEEL, 5/32
-
671671D2535 O RINGO RING
-
1312713127-0083 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0057 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1326213262-0603 GEAR, INPUT 2ND, 20TGEAR, INPUT 2ND, 20T
-
13262A13262-0605 GEAR, INPUT 5TH, 30TGEAR, INPUT 5TH, 30T
-
13262B13262-0606 GEAR, INPUT 6TH, 36TGEAR, INPUT 6TH, 36T
-
13262C13262-0611 GEAR, OUTPUT 5TH, 29TGEAR, OUTPUT 5TH, 29T
-
13262D13262-0612 GEAR, OUTPUT 6TH, 29TGEAR, OUTPUT 6TH, 29T
-
13262E13262-0829 GEAR, INPUT 3RD & 4TH, 27T & 28TGEAR, INPUT 3RD & 4TH, 27T & 28T
-
13262F13262-0831 GEAR, OUTPUT LOW, 44TGEAR, OUTPUT LOW, 44T
-
13262G13262-0832 GEAR, OUTPUT 3RD, 38TGEAR, OUTPUT 3RD, 38T
-
13262H13262-0833 GEAR, OUTPUT 4TH, 32TGEAR, OUTPUT 4TH, 32T
-
13262I13262-0834 GEAR, OUTPUT 2ND, 38TGEAR, OUTPUT 2ND, 38T
-
4907949079-0020 PULLEY-BELTPULLEY-BELT
-
9204692046-0007 BEARING-NEEDLE, KT 253515E02 C3BEARING-NEEDLE, KT 253515E02 C3
-
9213992139-0007 BUSHING, OUTPUT 3RD & 4TH GEARBUSHING, OUTPUT 3RD & 4TH GEAR
-
92139A92139-0236 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92139B92139-0237 BUSHING, OUTPUT 2ND GEARBUSHING, OUTPUT 2ND GEAR
-
9215292152-0657 COLLAR, 30X50X17.5COLLAR, 30X50X17.5
-
9220092200-0427 WASHER, 25.3X40X1.6WASHER, 25.3X40X1.6
-
92200A92200-0428 WASHER, 30.3X40X1.5WASHER, 30.3X40X1.5
-
92200B92200-0505 WASHER, 31X50X1WASHER, 31X50X1
-
92200C92200-1381 WASHER, 30.3X40X1.5WASHER, 30.3X40X1.5
-
9221092210-0554 NUT, 25MMNUT, 25MM
