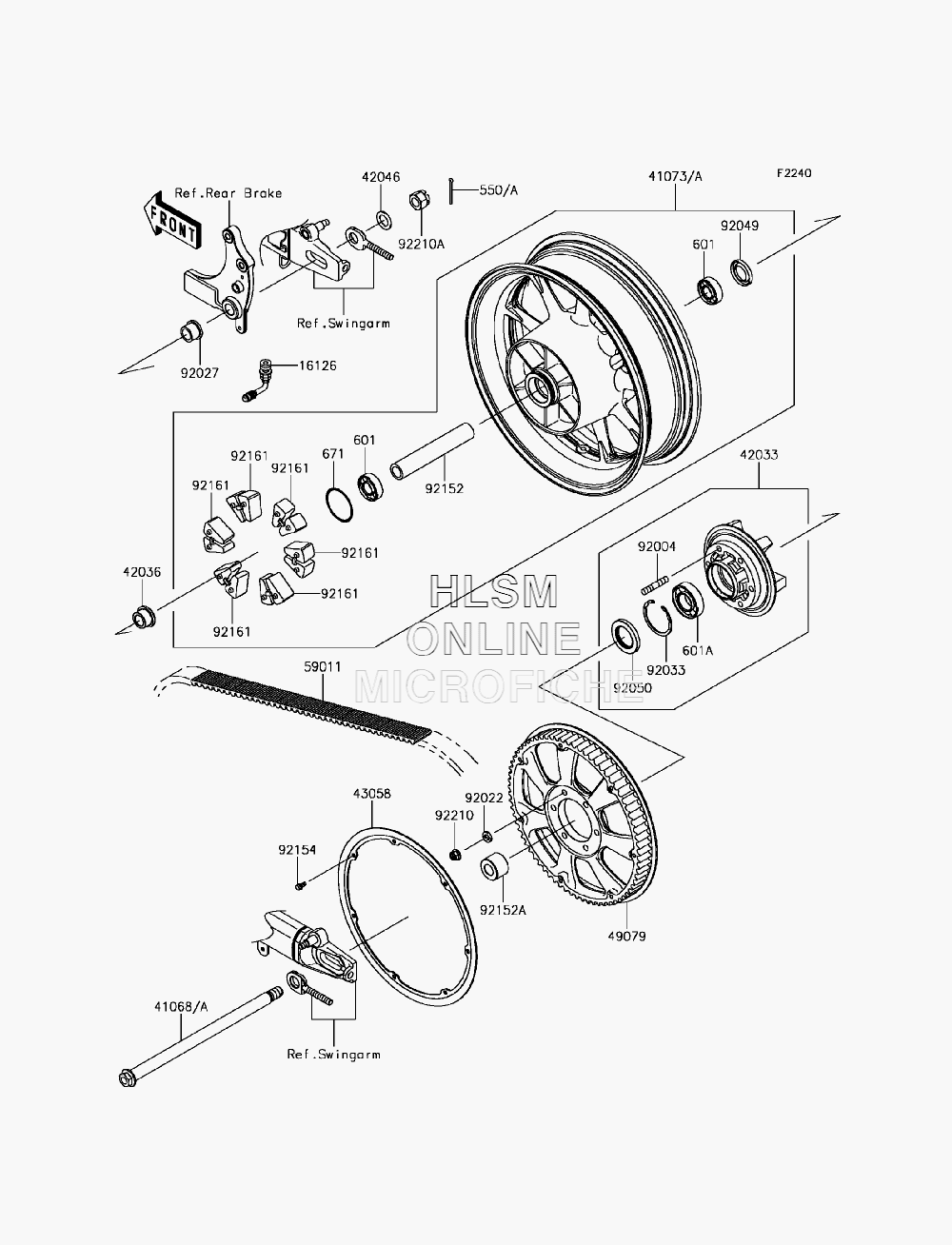

WHEEL - REAR W/ CHAIN для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BEF) - 2014 года выпуска
-
№АртикулНазвание
-
550550AA4035 PIN-COTTER, 4.0X35PIN-COTTER, 4.0X35
-
601601B6204UU BEARING-BALL, 6204UUC3BEARING-BALL, 6204UUC3
-
601A601B6206UU BEARING-BALL, #6206UUC3BEARING-BALL, #6206UUC3
-
671671B2560 O RING, 60MMO RING, 60MM
-
1612616126-1365 VALVEVALVE
-
4106841068-0057 AXLE, REARAXLE, REAR
-
4107341073-0140-18 WHEEL-ASSY, REAR, (BLACK)WHEEL-ASSY, REAR, (BLACK)
-
4203342033-0031 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-0060 SLEEVE, REAR HUB COUPLINGSLEEVE, REAR HUB COUPLING
-
4204642046-003 WASHER, 21X33X2.6WASHER, 21X33X2.6
-
4305843058-0033 RING, PULLEYRING, PULLEY
-
4907949079-0018 PULLEY-BELTPULLEY-BELT
-
5901159011-0029 BELT, DRIVE, 139TBELT, DRIVE, 139T
-
9200492004-0016 STUD, 10X35STUD, 10X35
-
9202292022-1820 WASHER, 10.5X19X3.2WASHER, 10.5X19X3.2
-
9202792027-1902 COLLAR, REAR AXLE, L=21.5COLLAR, REAR AXLE, L=21.5
-
9203392033-1044 RING-SNAP, 62MMRING-SNAP, 62MM
-
9204992049-1056 SEAL-OIL, BJN28475SEAL-OIL, BJN28475
-
9205092050-027 SEAL-OIL, AJN40627SEAL-OIL, AJN40627
-
9215292152-0640 COLLAR, REAR HUB, L=172COLLAR, REAR HUB, L=172
-
92152A92152-0641 COLLAR, REAR AXLE, LEFT HAND, L=28COLLAR, REAR AXLE, LEFT HAND, L=28
-
9215492154-0346 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9216192161-0576 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1134 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
