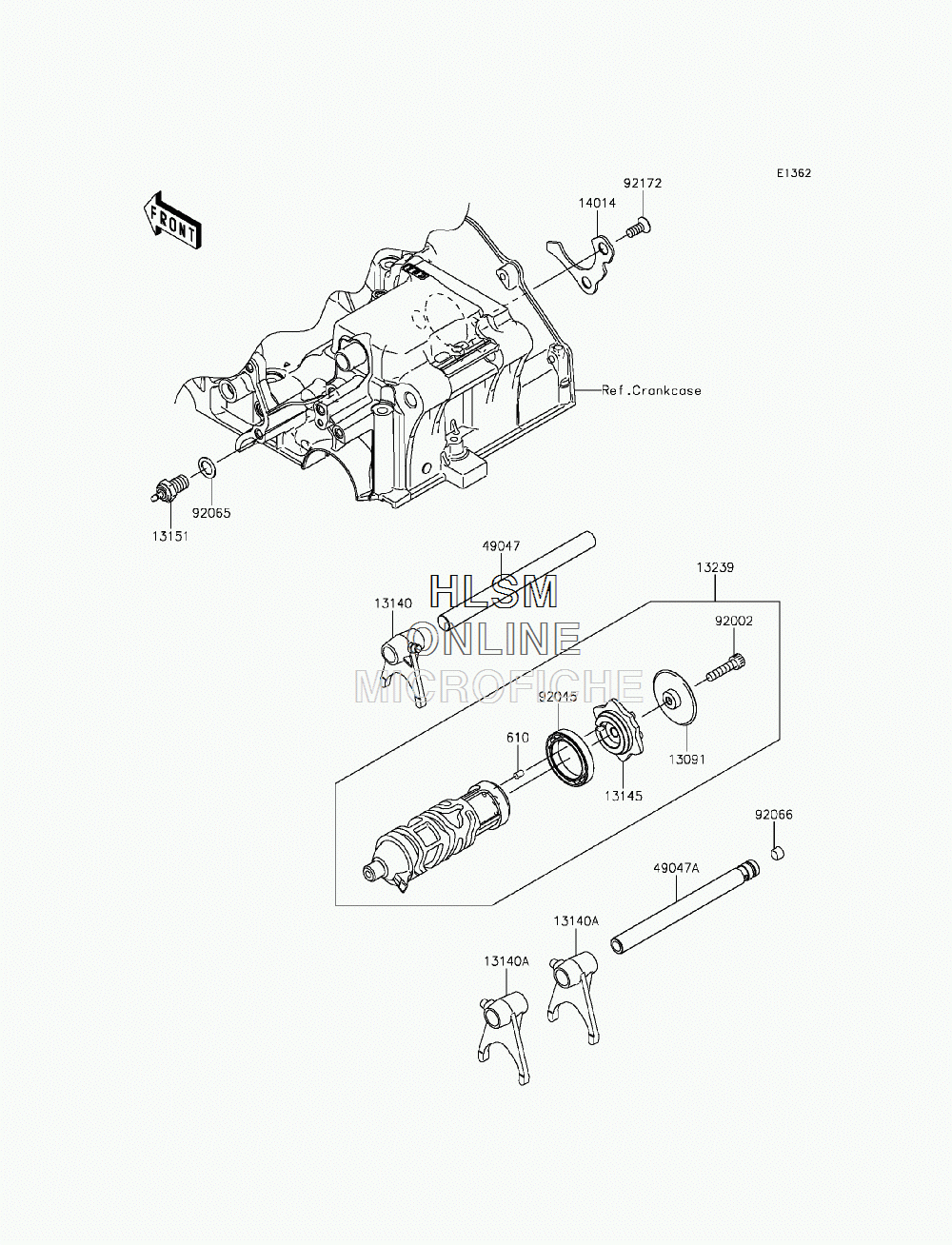

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki NINJA 300 (EX300AFF) - 2015 года выпуска
-
№АртикулНазвание
-
610610A0406 ROLLER,4X6ROLLER,4X6
-
1309113091-1464 HOLDER,CHANGE DRUMHOLDER,CHANGE DRUM
-
1314013140-1148 FORK-SHIFT,INFORK-SHIFT,IN
-
13140A13140-1149 FORK-SHIFT,OUTFORK-SHIFT,OUT
-
1314513145-0556 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-1102 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1323913239-0039 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
1401414014-0564 PLATE-POSITIONPLATE-POSITION
-
4904749047-0625 ROD-SHIFT,INROD-SHIFT,IN
-
49047A49047-0626 ROD-SHIFT,OUTROD-SHIFT,OUT
-
9200292002-1696 BOLT,SOCKET,6X25BOLT,SOCKET,6X25
-
9204592045-1152 BEARING-BALL,6806BEARING-BALL,6806
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9206692066-1246 PLUGPLUG
-
9217292172-0812 SCREW,6X15SCREW,6X15
