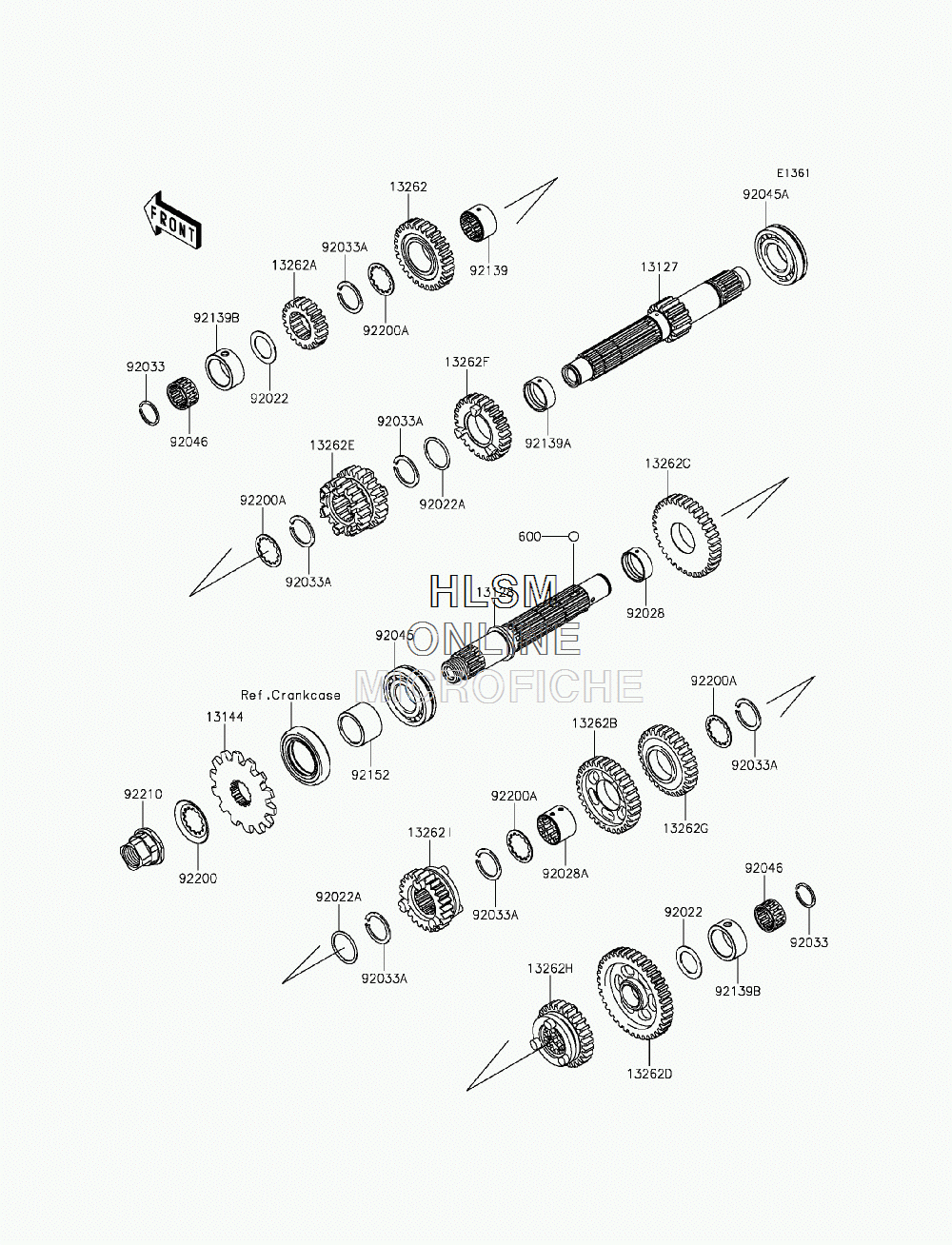

TRANSMISSION для Kawasaki NINJA 300 (EX300AFF) - 2015 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL-STEEL,5/32BALL-STEEL,5/32
-
1312713127-0656 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0685 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0566 SPROCKET-OUTPUT,14TSPROCKET-OUTPUT,14T
-
1326213262-0920 GEAR,INPUT TOP,28TGEAR,INPUT TOP,28T
-
13262A13262-1091 GEAR,INPUT 2ND,19TGEAR,INPUT 2ND,19T
-
13262B13262-1092 GEAR,OUTPUT 3RD,31TGEAR,OUTPUT 3RD,31T
-
13262C13262-1093 GEAR,OUTPUT 2ND,34TGEAR,OUTPUT 2ND,34T
-
13262D13262-1094 GEAR,OUTPUT LOW,38TGEAR,OUTPUT LOW,38T
-
13262E13262-1098 GEAR,INPUT 3RD & 4TH,22T & 25TGEAR,INPUT 3RD & 4TH,22T & 25T
-
13262F13262-1099 GEAR,INPUT 5TH,27TGEAR,INPUT 5TH,27T
-
13262G13262-1100 GEAR,OUTPUT 4TH,29TGEAR,OUTPUT 4TH,29T
-
13262H13262-1101 GEAR,OUTPUT 5TH,27TGEAR,OUTPUT 5TH,27T
-
13262I13262-1102 GEAR,OUTPUT TOP,24TGEAR,OUTPUT TOP,24T
-
9202292022-112 WASHER,20.5X30X1,STEELWASHER,20.5X30X1,STEEL
-
92022A92022-161 WASHER,25.3X30X1WASHER,25.3X30X1
-
9202892028-1564 BUSHING,9.4X25X28BUSHING,9.4X25X28
-
92028A92028-1858 BUSHING,OUTPUT 3RD & 4TH GEARBUSHING,OUTPUT 3RD & 4TH GEAR
-
9203392033-015 RING-SNAP,20MMRING-SNAP,20MM
-
92033A92033-026 RING-SNAP,24MMRING-SNAP,24MM
-
9204592045-0735 BEARING-BALL,6TM-6205NX3BEARING-BALL,6TM-6205NX3
-
92045A92045-1013 BEARING-BALL,#6205NX3BEARING-BALL,#6205NX3
-
9204692046-0607 BEARING-NEEDLE,20X25X12.8BEARING-NEEDLE,20X25X12.8
-
9213992139-0781 BUSHING,26X28X16.6BUSHING,26X28X16.6
-
92139A92139-0793 BUSHING,25X28X10.4BUSHING,25X28X10.4
-
92139B92139-0810 BUSHING,25X33X14BUSHING,25X33X14
-
9215292152-1860 COLLAR,25X32X21.6COLLAR,25X32X21.6
-
9220092200-0851 WASHERWASHER
-
92200A92200-1389 WASHERWASHER
-
9221092210-0605 NUT,M20NUT,M20
