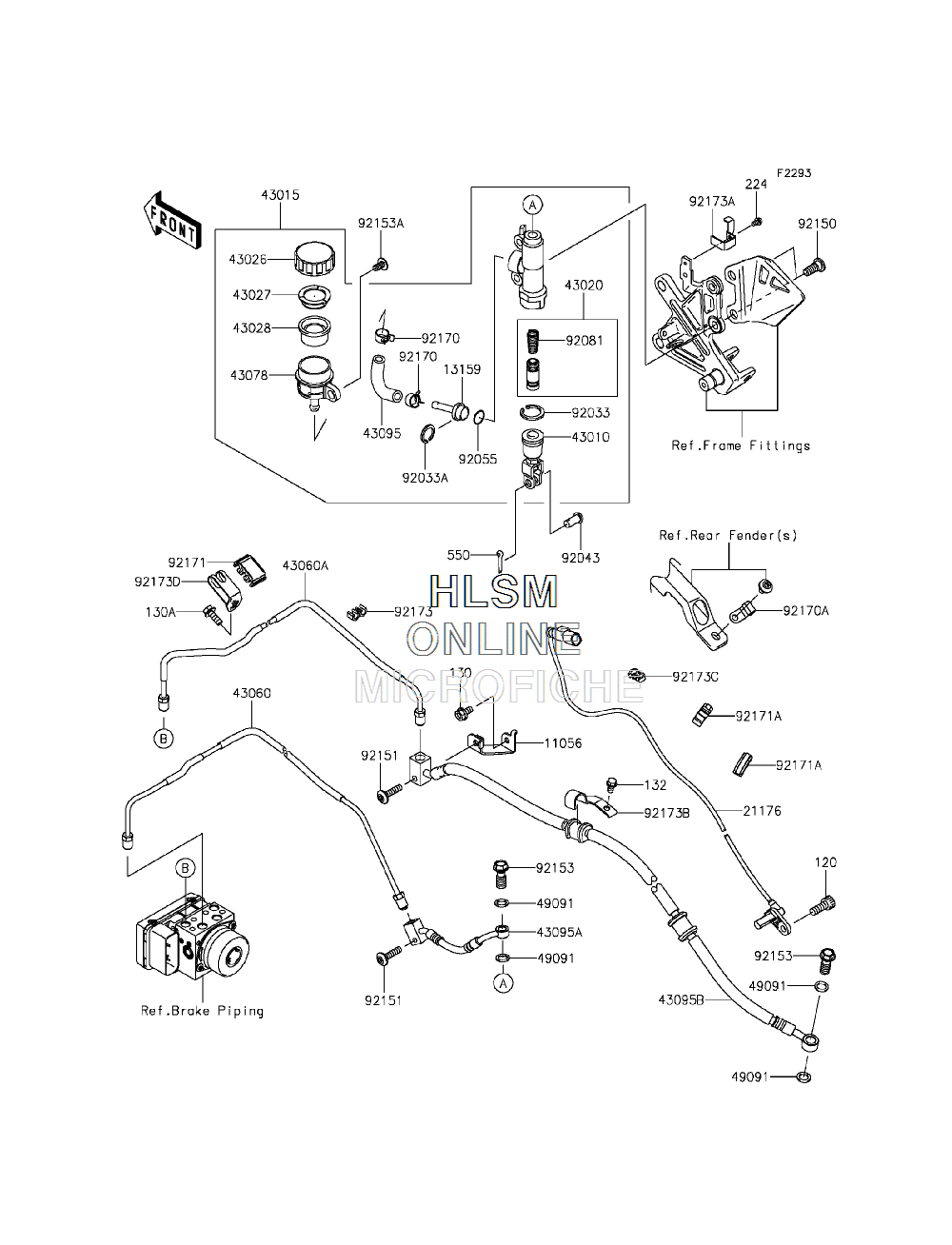

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA H2 (ZX1000NFF) - 2015 года выпуска
-
№АртикулНазвание
-
1105611056-7024 BRACKET, RESERVOIR TANK CAPBRACKET, RESERVOIR TANK CAP
-
1315913159-1056 CONNECTORCONNECTOR
-
2117621176-0793 SENSOR, WHEEL SPEED, REARSENSOR, WHEEL SPEED, REAR
-
4301043010-0016 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0618 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4305943059-1548 HOSE-BRAKE, M/CYLINDERHOSE-BRAKE, M/CYLINDER
-
4306043060-0321 PIPE-BRAKE, REAR M/CPIPE-BRAKE, REAR M/C
-
43060A43060-0322 PIPE-BRAKE, REAR CALIPERPIPE-BRAKE, REAR CALIPER
-
4307843078-0575 RESERVOIRRESERVOIR
-
4309543095-0856 HOSE-BRAKE, HU-REAR M/C PIPEHOSE-BRAKE, HU-REAR M/C PIPE
-
43095A43095-0857 HOSE-BRAKE, HU-REAR CALIPER PIPEHOSE-BRAKE, HU-REAR CALIPER PIPE
-
43095B43095-0858 HOSE-BRAKE, REAR CALIPERHOSE-BRAKE, REAR CALIPER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202692026-0789 SPACER, REAR SENSOR, T0.5SPACER, REAR SENSOR, T0.5
-
92026A92026-0790 SPACER, REAR SENSOR, T1.0SPACER, REAR SENSOR, T1.0
-
92026B92026-0791 SPACER, REAR SENSOR, T1.5SPACER, REAR SENSOR, T1.5
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215392153-0912 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215492154-0745 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154A92154-1121 BOLT, BANJO, 10X20.8BOLT, BANJO, 10X20.8
-
92154B92154-1532 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154C92154-1554 BOLT, BANJO, 10X19BOLT, BANJO, 10X19
-
92154D92154-1555 BOLT, BANJO, 10X32.3BOLT, BANJO, 10X32.3
-
92154E92154-1564 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92154F92154-1712 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
92154G92154-1735 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154H92154-1806 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0921 CLAMPCLAMP
-
9217392173-1378 CLAMP, SWING ARM, MIDCLAMP, SWING ARM, MID
-
92173A92173-1379 CLAMP, SWING ARM, FRONT, LOWERCLAMP, SWING ARM, FRONT, LOWER
-
92173B92173-1380 CLAMP, SWING ARM, REAR, LOWERCLAMP, SWING ARM, REAR, LOWER
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
132132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
92173C92173-1381 CLAMP, BRAKE PIPECLAMP, BRAKE PIPE
-
92173D92173-1382 CLAMP, SWING ARM, FRONT, UPPERCLAMP, SWING ARM, FRONT, UPPER
-
92173E92173-1383 CLAMP, SWING ARM, REAR, UPPERCLAMP, SWING ARM, REAR, UPPER
-
92173F92173-1384 CLAMP, REAR BRAKE HOLDERCLAMP, REAR BRAKE HOLDER
