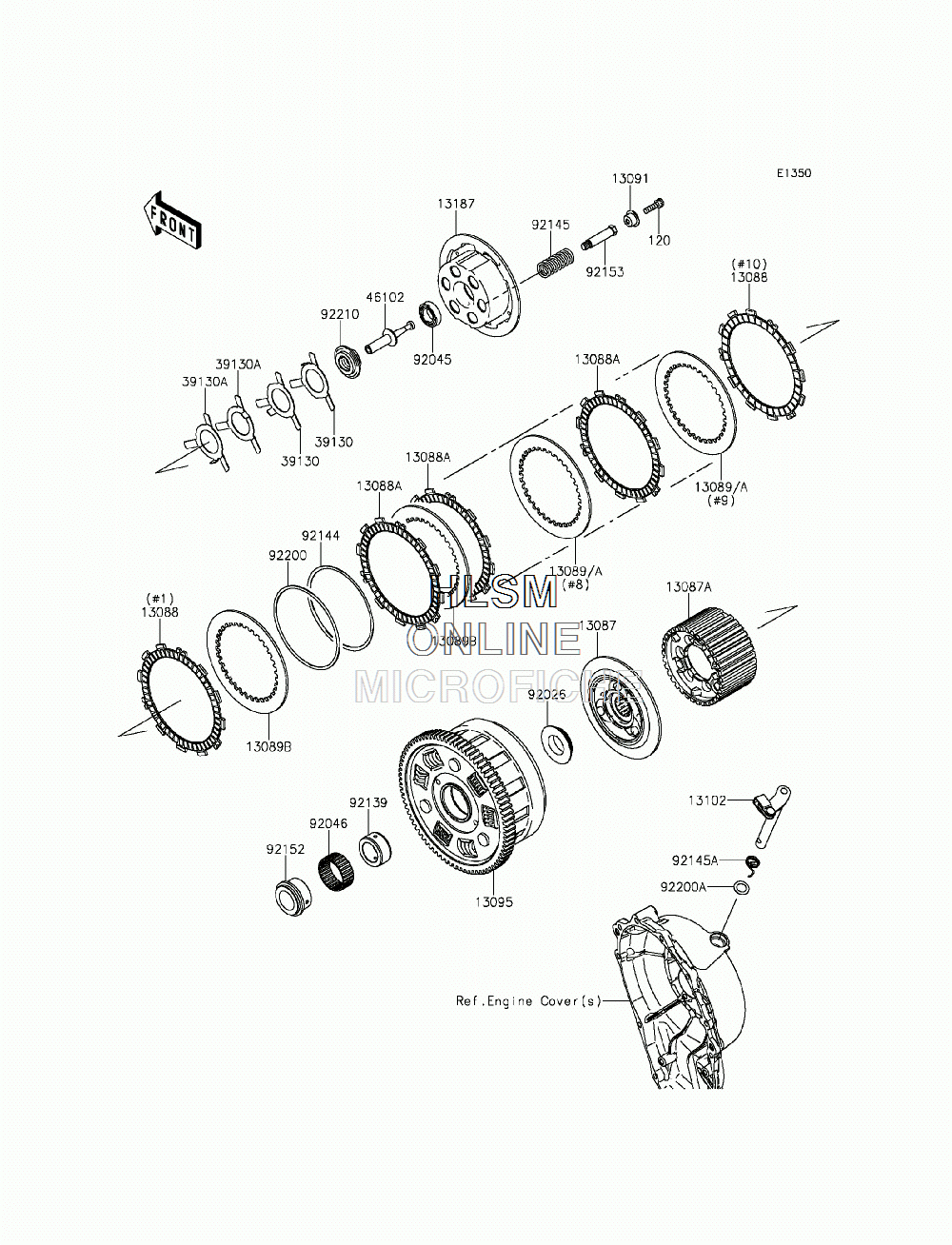

CLUTCH для Kawasaki NINJA H2 (ZX1000NFF) - 2015 года выпуска
-
№АртикулНазвание
-
120120Q0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
1308713087-0575 HUB-CLUTCHHUB-CLUTCH
-
13087A13087-0576 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0575 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0576 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0027 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089A13089-0028 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
13089B13089-0030 PLATE-CLUTCH, T=2.9PLATE-CLUTCH, T=2.9
-
1309113091-1840 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0577 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0719 ROD-PUSHROD-PUSH
-
13116A13116-0720 ROD-PUSHROD-PUSH
-
1318713187-0024 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323113231-0005 RELEASE-ASSY-CLUTCHRELEASE-ASSY-CLUTCH
-
3913039130-1078 SPRING-LEAFSPRING-LEAF
-
39130A39130-1079 SPRING-LEAFSPRING-LEAF
-
9202292022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-0792 SPACERSPACER
-
9204692046-0041 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
9213992139-0304 BUSHING, 25X38X17.3BUSHING, 25X38X17.3
-
9214592145-1250 SPRINGSPRING
-
92145A92145-1662 SPRINGSPRING
-
9215292152-0866 COLLARCOLLAR
-
9215392153-0797 BOLTBOLT
-
9215492154-1623 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92154A92154-1624 BOLT, SOCKET, 6X65BOLT, SOCKET, 6X65
-
9220092200-1580 WASHER, T=1.2WASHER, T=1.2
-
9221092210-0397 NUTNUT
