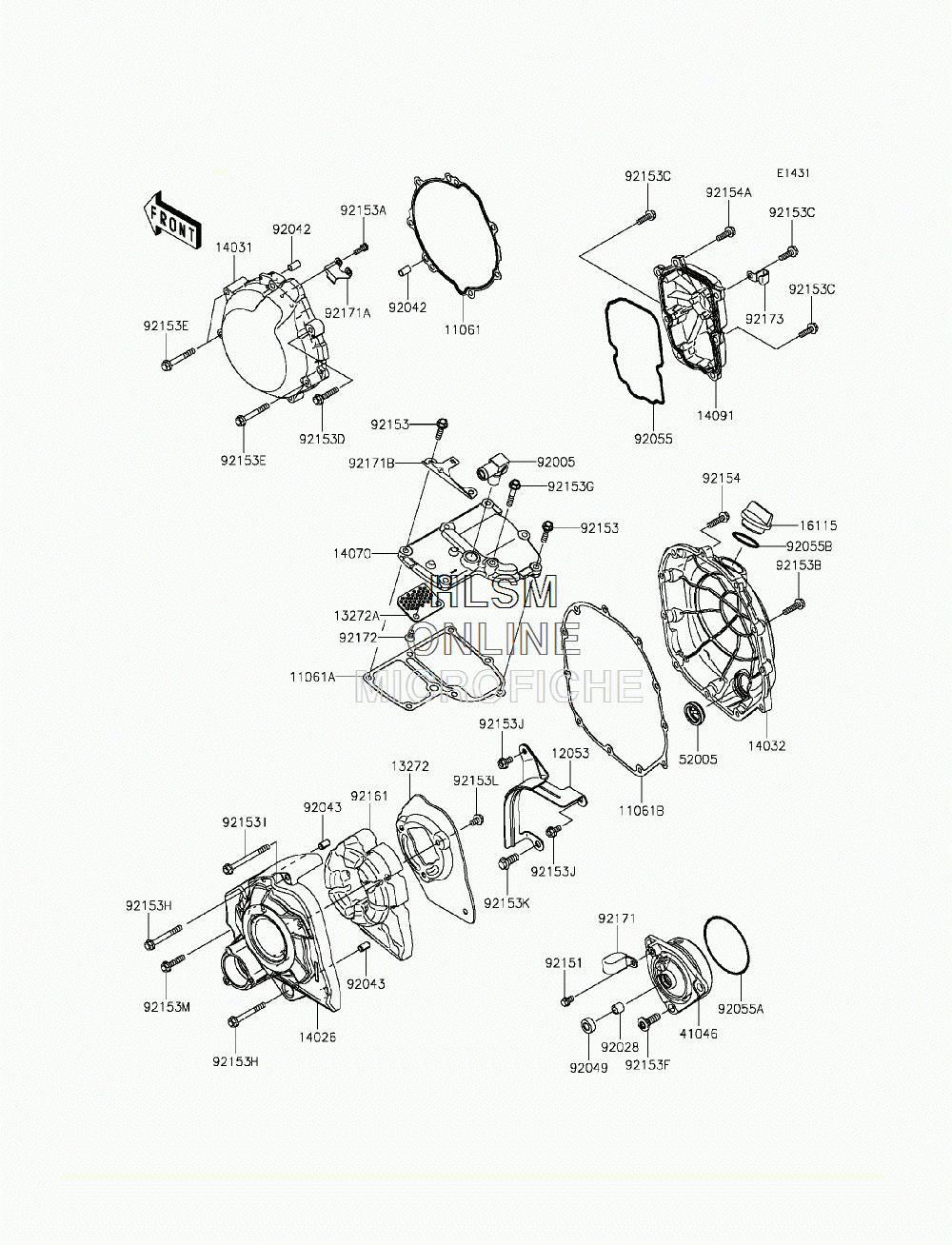

ENGINE COVER для Kawasaki NINJA ZX-14R ABS (ZX1400FFFA) - 2015 года выпуска
-
№АртикулНазвание
-
1106111061-0197 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11061A11061-0808 GASKET,BREATHER BODYGASKET,BREATHER BODY
-
11061B11061-0810 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
1205312053-0097 GUIDE-CHAINGUIDE-CHAIN
-
1327213272-0037 PLATEPLATE
-
13272A13272-1311 PLATEPLATE
-
1402614026-0094 COVER-CHAINCOVER-CHAIN
-
1403114031-0083 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0570 COVER-CLUTCHCOVER-CLUTCH
-
1407014070-0061 BODY-BREATHERBODY-BREATHER
-
1409114091-0896 COVER,PULSERCOVER,PULSER
-
1611516115-1009 CAP-OIL FILLERCAP-OIL FILLER
-
4104641046-0574 HOUSING-BEARINGHOUSING-BEARING
-
5200552005-0024 GAUGEGAUGE
-
9200592005-0044 FITTINGFITTING
-
9202892028-1750 BUSHING,8X12X10BUSHING,8X12X10
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204992049-1566 SEAL-OILSEAL-OIL
-
9205592055-0086 RING-O,PULSER COVERRING-O,PULSER COVER
-
92055A92055-0087 RING-O,75X2.5RING-O,75X2.5
-
92055B92055-049 RING-O,31.5X2.6RING-O,31.5X2.6
-
9215192151-1233 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9215392153-1071 BOLT,6X25BOLT,6X25
-
92153A92153-1286 BOLT,SOCKET,5X14BOLT,SOCKET,5X14
-
92153B92153-1569 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
92153C92153-1572 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
92153D92153-1574 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
92153E92153-1575 BOLT,FLANGED,6X45BOLT,FLANGED,6X45
-
92153F92153-1578 BOLT,SOCKET,8X25BOLT,SOCKET,8X25
-
92153G92153-1579 BOLT,FLANGED,6X35BOLT,FLANGED,6X35
-
92153H92153-1581 BOLT,FLANGED,6X52BOLT,FLANGED,6X52
-
92153I92153-1583 BOLT,FLANGED,6X68BOLT,FLANGED,6X68
-
92153J92153-1596 BOLT,FLANGED,6X12BOLT,FLANGED,6X12
-
92153K92153-1682 BOLT,FLANGED-SMALL,8X20BOLT,FLANGED-SMALL,8X20
-
92153L92153-1925 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
92153M92153-1951 BOLT,FLANGED,6X28BOLT,FLANGED,6X28
-
9215492154-1358 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
92154A92154-1359 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
9216192161-0837 DAMPER,CHAIN COVERDAMPER,CHAIN COVER
-
9217192171-0594 CLAMPCLAMP
-
92171A92171-0768 CLAMPCLAMP
-
92171B92171-0769 CLAMPCLAMP
-
9217292172-0747 SCREW-CSK-CROS,6X12SCREW-CSK-CROS,6X12
-
9217392173-0982 CLAMPCLAMP
