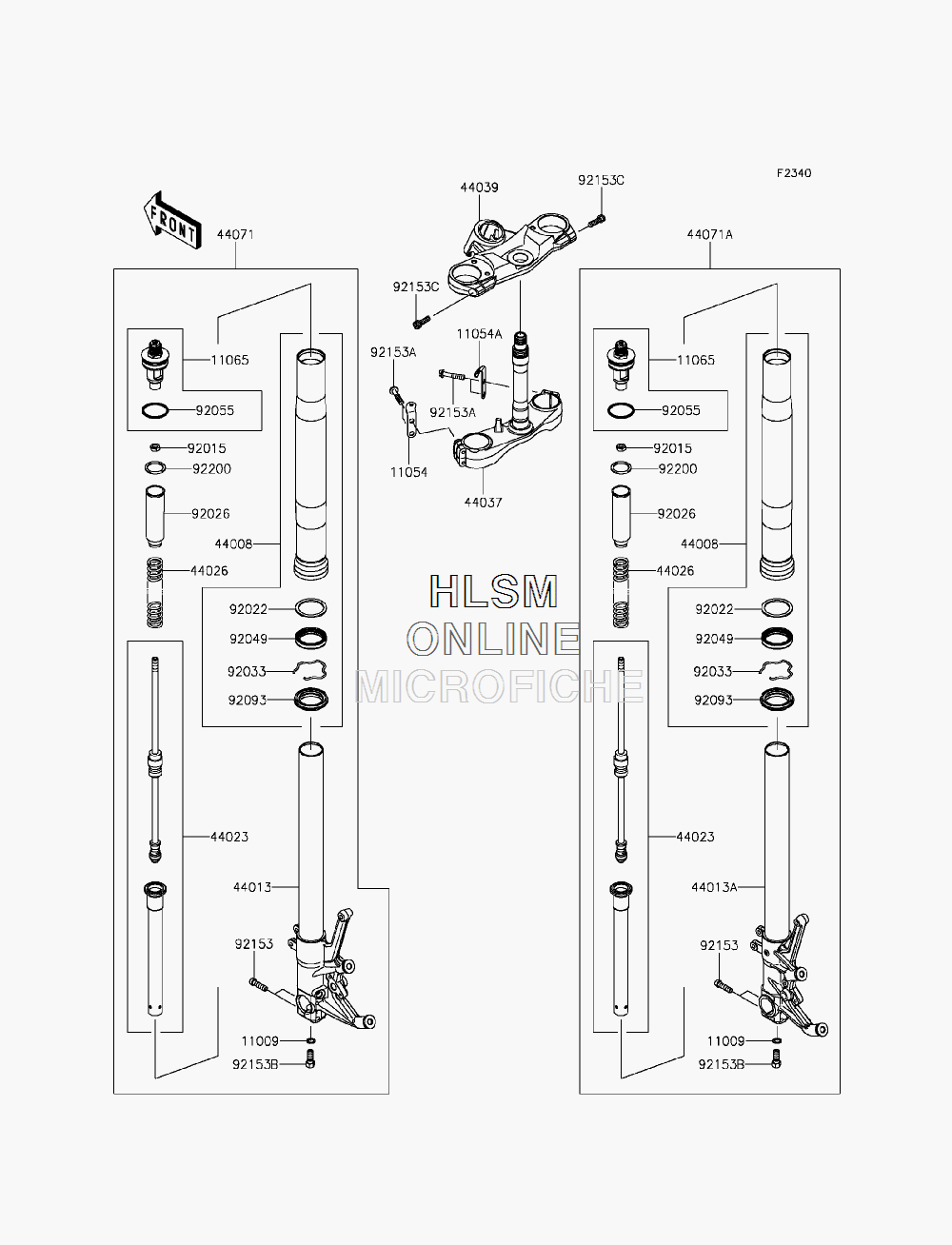

FRONT FORK для Kawasaki NINJA ZX-14R ABS (ZX1400FFFA) - 2015 года выпуска
-
№АртикулНазвание
-
1100911009-1325 GASKET,10.5X15X1.5GASKET,10.5X15X1.5
-
1105411054-0480 BRACKET,HARNESS CLAMP, LEFT HANDBRACKET,HARNESS CLAMP, LEFT HAND
-
11054A11054-0481 BRACKET,UNDER BRACKET, RIGHT HANDBRACKET,UNDER BRACKET, RIGHT HAND
-
1106511065-0757-44F CAP,P.AJ (G.B.GREEN)+T.AJ (SILVER)CAP,P.AJ (G.B.GREEN)+T.AJ (SILVER)
-
4400844008-0052-499 PIPE-FORK OUTER,(A.BLACK)PIPE-FORK OUTER,(A.BLACK)
-
4401344013-0185-44G PIPE-FORK INNER, LEFT HAND,(BLACK+GREEN)PIPE-FORK INNER, LEFT HAND,(BLACK+GREEN)
-
44013A44013-0186-44G PIPE-FORK INNER, RIGHT HAND,(BLACK+GREEN)PIPE-FORK INNER, RIGHT HAND,(BLACK+GREEN)
-
4402344023-0096 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0160 SPRING-FRONT FORKSPRING-FRONT FORK
-
4403744037-0039 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0113-40S HOLDER-FORK UPPER,(F.S.BLACK)HOLDER-FORK UPPER,(F.S.BLACK)
-
4407144071-0773-50J DAMPER-ASSY,FORK, LEFT HAND,(A.BLACK)DAMPER-ASSY,FORK, LEFT HAND,(A.BLACK)
-
44071A44071-0774-50J DAMPER-ASSY,FORK, RIGHT HAND,(A.BLACK)DAMPER-ASSY,FORK, RIGHT HAND,(A.BLACK)
-
9201592015-1905 NUTNUT
-
9202292022-1299 WASHERWASHER
-
9202692026-0736 SPACERSPACER
-
9203392033-1077 RING-SNAPRING-SNAP
-
9204992049-1522 SEAL-OIL,FORK OUTER TUBESEAL-OIL,FORK OUTER TUBE
-
9205592055-1333 RING-O,FORK,AIR TUBERING-O,FORK,AIR TUBE
-
9209392093-1480 SEAL,FORK OUTER TUBESEAL,FORK OUTER TUBE
-
9215392153-0006 BOLT,SOCKET,8X40BOLT,SOCKET,8X40
-
92153A92153-0484 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92153B92153-0548 BOLT,SOCKET,10X25BOLT,SOCKET,10X25
-
92153C92153-1625 BOLT,SOCKET,8X25BOLT,SOCKET,8X25
-
9220092200-0085 WASHERWASHER
