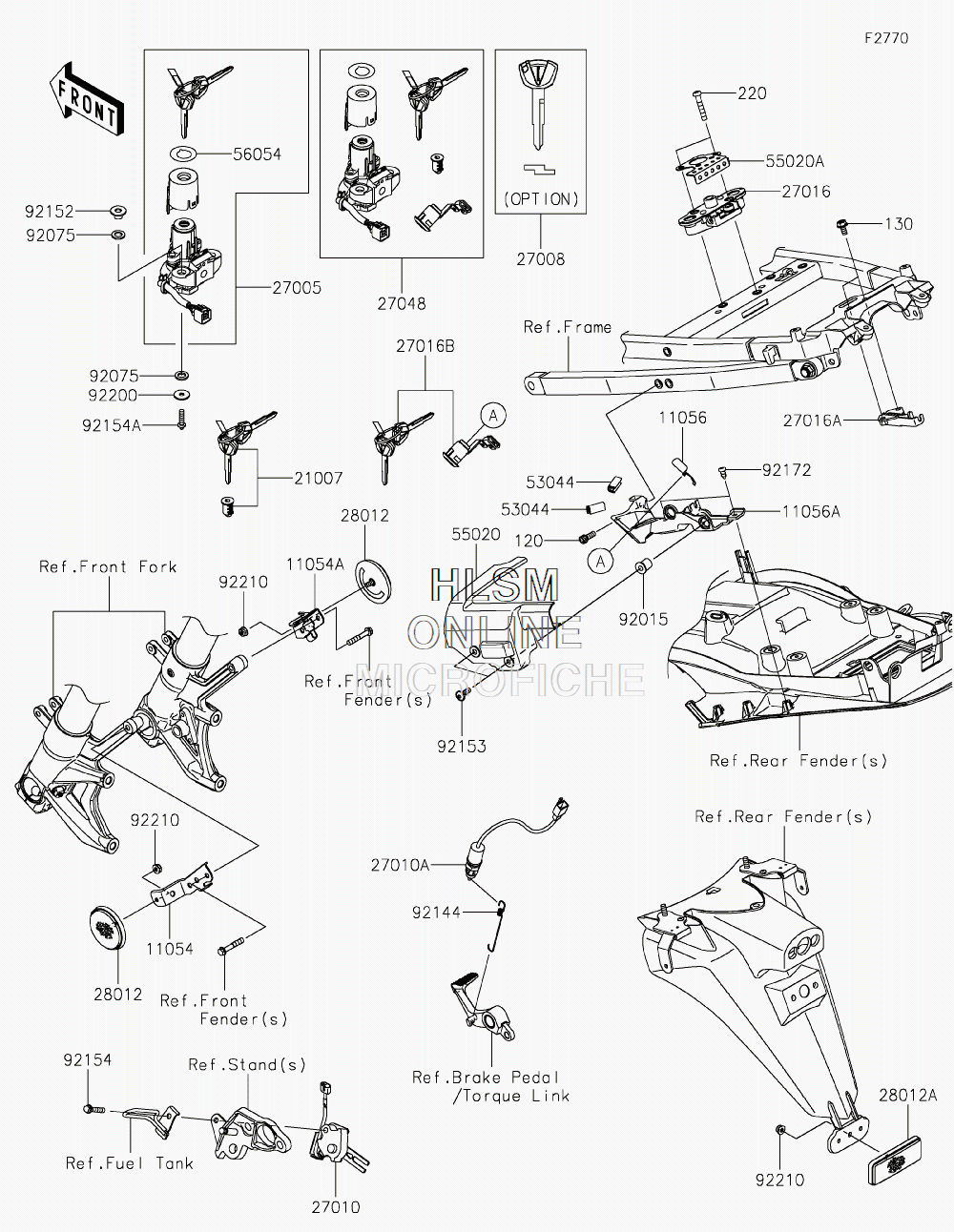

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-14R ABS SE (ZX1400JGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105411054-0692 BRACKET, REFLECTOR, FRONT, LEFT HANDBRACKET, REFLECTOR, FRONT, LEFT HAND
-
11054A11054-1227 BRACKET, REFLECTOR, FRONT, RIGHT HANDBRACKET, REFLECTOR, FRONT, RIGHT HAND
-
1105611056-0238 BRACKET, CLASPBRACKET, CLASP
-
11056A11056-1512 BRACKETBRACKET
-
120120CA0616 BOLT-SOCKET, 6X16BOLT-SOCKET, 6X16
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
2100721007-5068 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
220220AA0635 SCREW-PAN-CROS, 6X35SCREW-PAN-CROS, 6X35
-
2700527005-0568 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0069 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0064 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0035 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-1115 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016B27016-5374 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704827048-5013 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0008 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5304453044-0031 TRIM, L=22TRIM, L=22
-
5502055020-0816 GUARD, CABLEGUARD, CABLE
-
55020A55020-0855 GUARD, SEAT STRIKERGUARD, SEAT STRIKER
-
5605456054-0969 MARK, IGNITION SWITCHMARK, IGNITION SWITCH
-
9201592015-1700 NUTNUT
-
9207592075-1564 DAMPERDAMPER
-
9214492144-1753 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215292152-1611 COLLAR, 6.2X10.3X10COLLAR, 6.2X10.3X10
-
9215392153-0478 BOLT, 6X18BOLT, 6X18
-
9215492154-1857 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154A92154-1858 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9217292172-0239 SCREW, TAPPING, 5X12SCREW, TAPPING, 5X12
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
