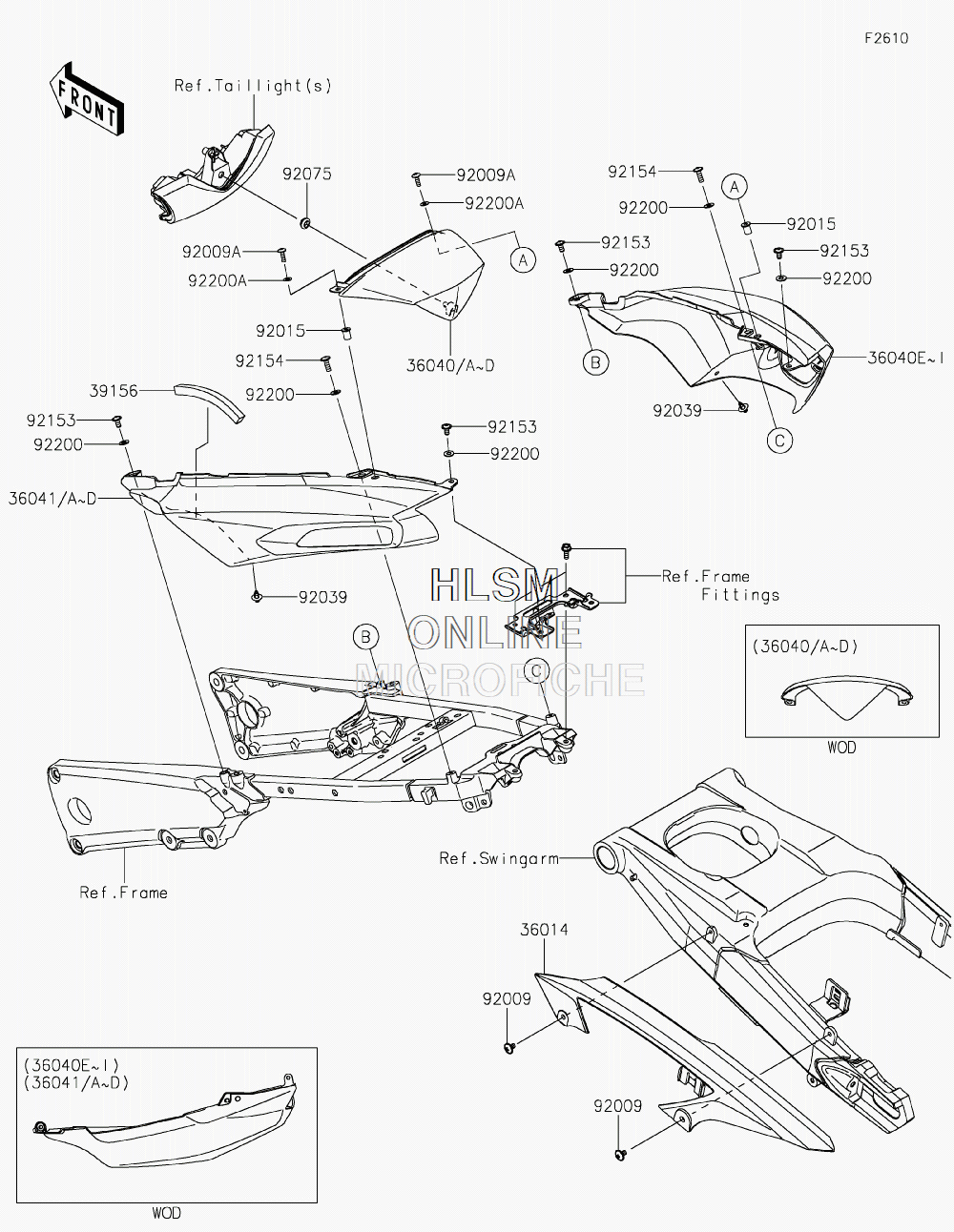

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA ZX-14R ABS SE (ZX1400JGF) - 2016 года выпуска
-
№АртикулНазвание
-
3601436014-0030 CASE-CHAINCASE-CHAIN
-
36040C36040-0058-51B COVER-TAIL, CENTER, (M.M.C.GRAY) (FOR 51B)COVER-TAIL, CENTER, (M.M.C.GRAY) (FOR 51B)
-
36040D36040-0058-660 COVER-TAIL, CENTER, (M.S.BLACK) (FOR 40R)COVER-TAIL, CENTER, (M.S.BLACK) (FOR 40R)
-
36040H36040-0137-51B COVER-TAIL, RIGHT HAND, (M.M.C.GRAY) (FOR 51B)COVER-TAIL, RIGHT HAND, (M.M.C.GRAY) (FOR 51B)
-
36040I36040-0137-660 COVER-TAIL, RIGHT HAND, (M.S.BLACK) (FOR 40R)COVER-TAIL, RIGHT HAND, (M.S.BLACK) (FOR 40R)
-
36041C36041-0027-51B COVER-TAIL, LEFT HAND, (M.M.C.GRAY) (FOR 51B)COVER-TAIL, LEFT HAND, (M.M.C.GRAY) (FOR 51B)
-
36041D36041-0027-660 COVER-TAIL, LEFT HAND, (M.S.BLACK) (FOR 40R)COVER-TAIL, LEFT HAND, (M.S.BLACK) (FOR 40R)
-
3915639156-1958 PAD, 12X124X12PAD, 12X124X12
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
92009A92009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-1289 RIVETRIVET
-
9207592075-1011 DAMPER, 6X16X7DAMPER, 6X16X7
-
9215392153-1617 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215492154-0139 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9220092200-1388 WASHER, 6.5X14X1WASHER, 6.5X14X1
-
92200A92200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BATTERY CASE
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE LINES
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CENTER STAND
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CLUTCH MASTER CYLINDER
- COLOR INFO
- COOLING SYSTEM
- COWLING - CENTER
- COWLING - LOWERS
- COWLING - UPPER
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT/PISTON(S)
- CYLINDER HEAD
- CYLINDER HEAD COVER
- DECALS (GRAY)
- DECALS (GREEN)
- ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF. ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL COOLER
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- • SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAIL GRIP
- TAILLIGHT(S)
- THROTTLE BODY ASSY
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
