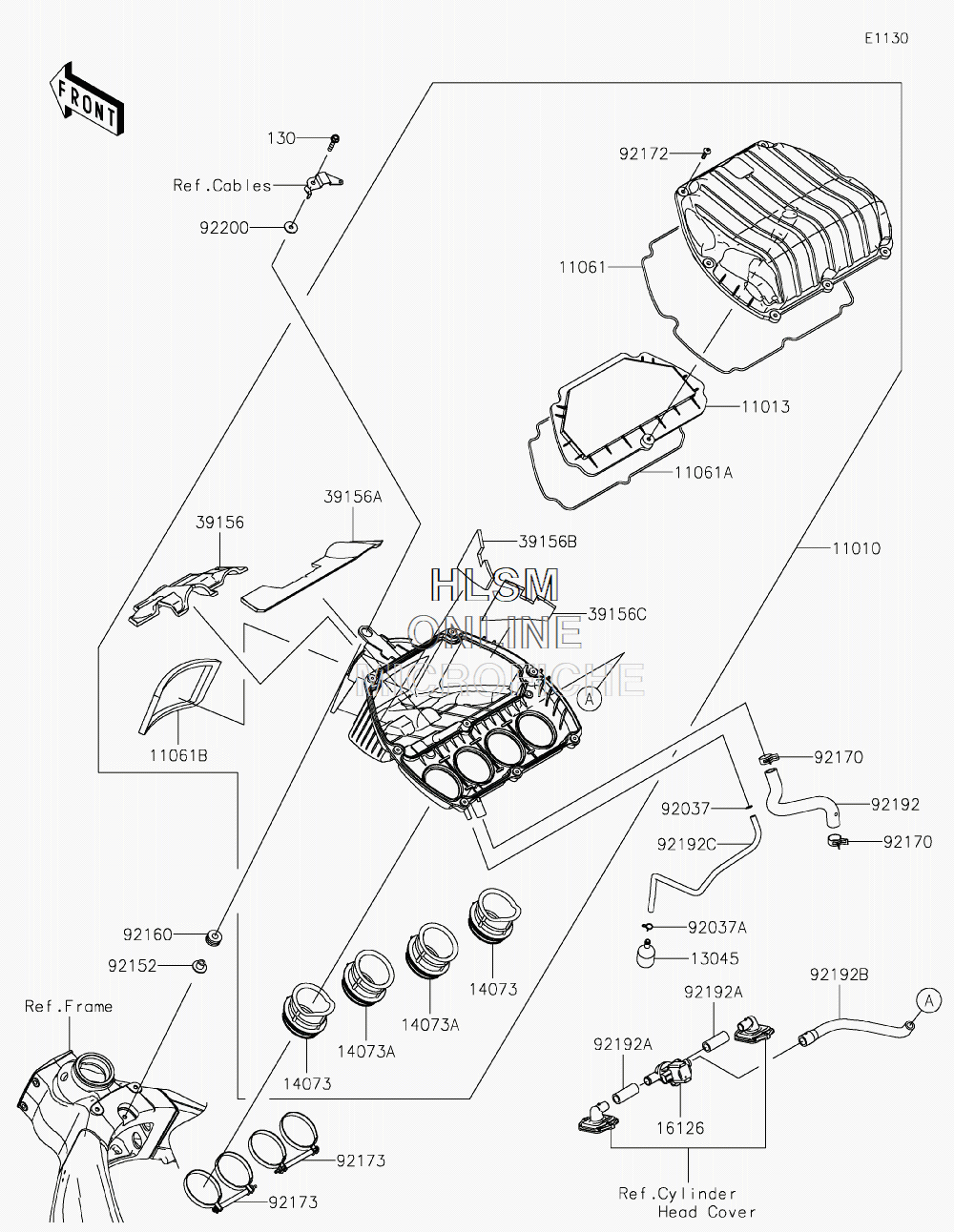

AIR CLEANER для Kawasaki NINJA ZX-6R ABS KRT EDITION (ZX636FGFA) - 2016 года выпуска
-
№АртикулНазвание
-
1101011010-0764 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-0036 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106111061-0379 GASKET, UPPER CASEGASKET, UPPER CASE
-
11061A11061-0380 GASKET, LOWER CASEGASKET, LOWER CASE
-
11061B11061-0381 GASKET, FRAME-A/CGASKET, FRAME-A/C
-
130130BB0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1304513045-1057 RECEIVER-OILRECEIVER-OIL
-
1407314073-0742 DUCT, FUNNEL #1 & #4DUCT, FUNNEL #1 & #4
-
14073A14073-0766 DUCT, FUNNEL #2 & #3DUCT, FUNNEL #2 & #3
-
1612616126-0745 VALVE, AIR SWITCHINGVALVE, AIR SWITCHING
-
3915639156-0513 PAD, FRONTPAD, FRONT
-
39156A39156-0514 PAD, REARPAD, REAR
-
39156B39156-0515 PAD, LEFT HANDPAD, LEFT HAND
-
39156C39156-0516 PAD, RIGHT HANDPAD, RIGHT HAND
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1712 CLAMPCLAMP
-
9215292152-0547 COLLAR, 6.5X10.5X13.1COLLAR, 6.5X10.5X13.1
-
9216092160-1162 DAMPERDAMPER
-
9217092170-1060 CLAMPCLAMP
-
9217292172-1072 SCREWSCREW
-
9217392173-0115 CLAMPCLAMP
-
9219292192-0429 TUBE, BLOWBYTUBE, BLOWBY
-
92192A92192-0851 TUBE, 12X17.6X44TUBE, 12X17.6X44
-
92192B92192-0879 TUBE, ASV-A/CTUBE, ASV-A/C
-
92192C92192-1254 TUBE, 6X9X430TUBE, 6X9X430
-
9220092200-1087 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
