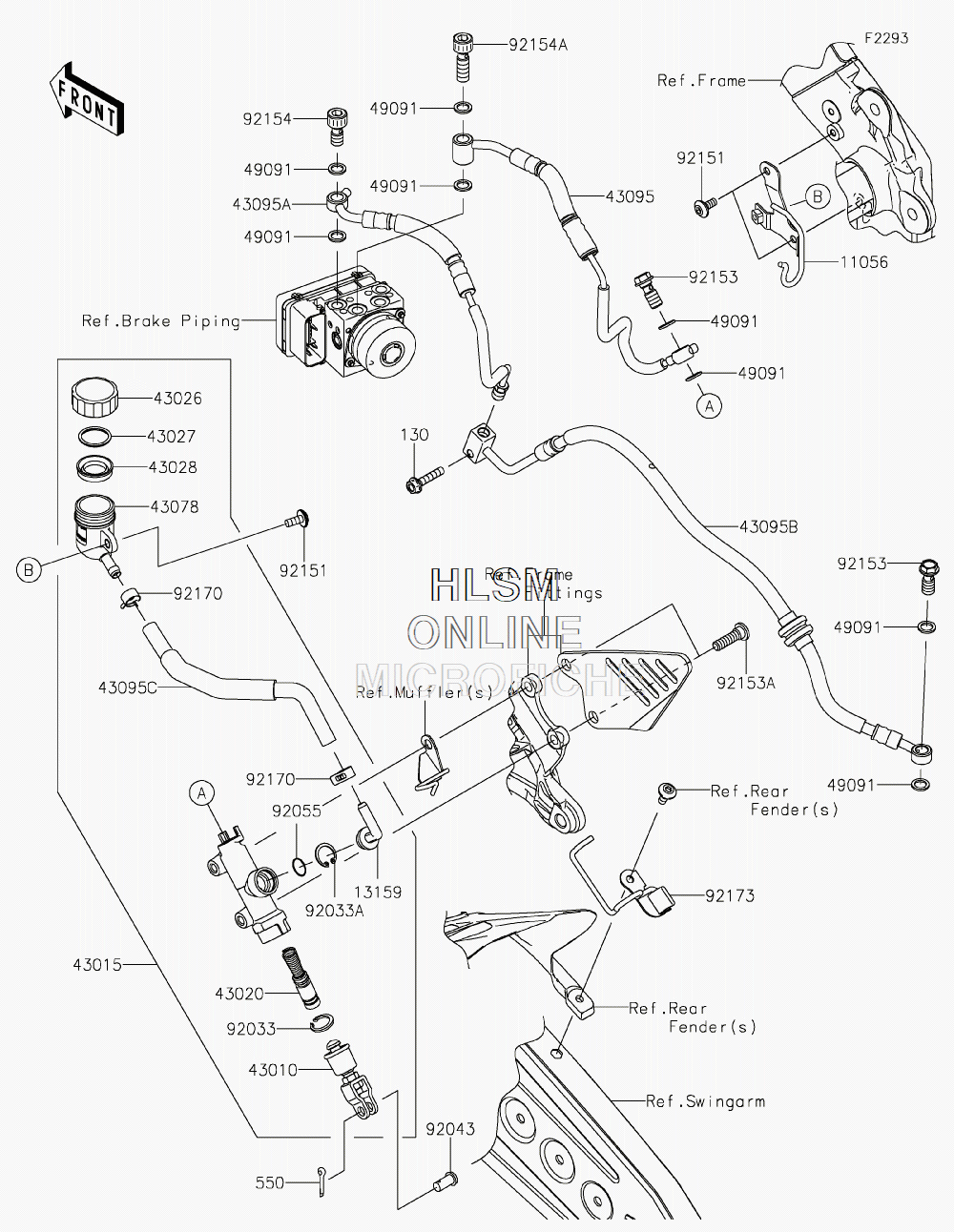

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-6R ABS KRT EDITION (ZX636FGFA) - 2016 года выпуска
-
№АртикулНазвание
-
1105611056-2051 BRACKETBRACKET
-
130130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0575 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1070 CAP-BRAKECAP-BRAKE
-
4302743027-1054 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1073 DIAPHRAGMDIAPHRAGM
-
4307843078-1102 RESERVOIRRESERVOIR
-
4309543095-0731 HOSE-BRAKE, REAR, MC-HU, JOINTHOSE-BRAKE, REAR, MC-HU, JOINT
-
43095A43095-0732 HOSE-BRAKE, REAR, HU-MC, JOINTHOSE-BRAKE, REAR, HU-MC, JOINT
-
43095B43095-0736 HOSE-BRAKE, REAR, HU-CALIPERHOSE-BRAKE, REAR, HU-CALIPER
-
43095C43095-0737 HOSE-BRAKE, REAR MCHOSE-BRAKE, REAR MC
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215492154-1121 BOLT, BANJO, 10X20.8BOLT, BANJO, 10X20.8
-
92154A92154-1122 BOLT, BANJO, 10X32.3BOLT, BANJO, 10X32.3
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217392173-1048 CLAMPCLAMP
