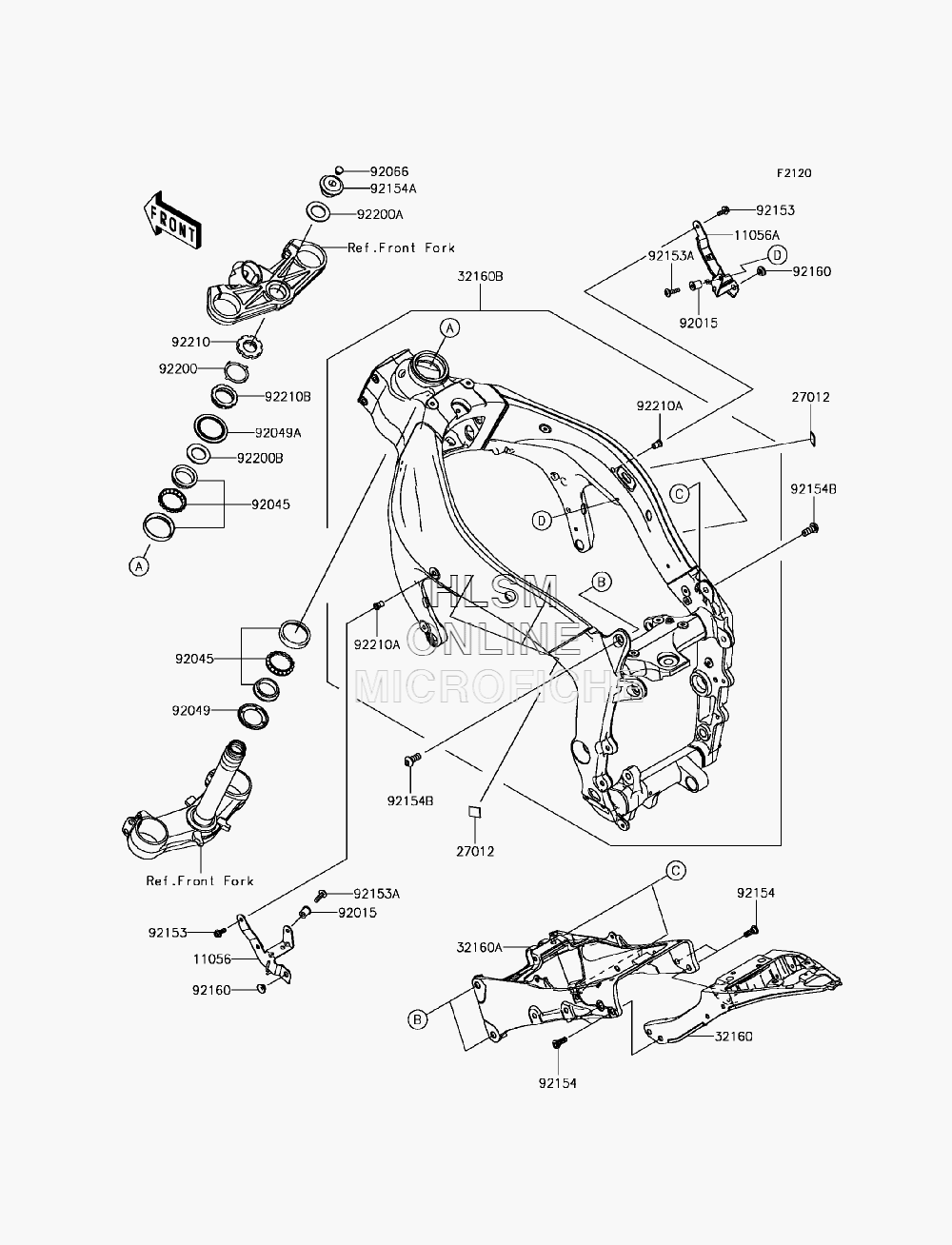

FRAME для Kawasaki NINJA ZX-6R (ZX636EGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105611056-1961 BRACKET, COWLING, LEFT HANDBRACKET, COWLING, LEFT HAND
-
11056A11056-2390 BRACKET, COWLING, RIGHT HANDBRACKET, COWLING, RIGHT HAND
-
2701227012-0741 HOOK, 30X30X3.2HOOK, 30X30X3.2
-
3216032160-0398 FRAME-COMP, REAR, REARFRAME-COMP, REAR, REAR
-
32160A32160-0399 FRAME-COMP, REAR, FRONTFRAME-COMP, REAR, FRONT
-
32160B32160-0642 FRAME-COMPFRAME-COMP
-
9201592015-1700 NUTNUT
-
9204592045-1384 BEARING-BALL, SF07A17PX1V1BEARING-BALL, SF07A17PX1V1
-
9204992049-0022 SEAL-OIL, DS35X55X4SEAL-OIL, DS35X55X4
-
92049A92049-0742 SEAL-OIL, 43X55.5X8.6SEAL-OIL, 43X55.5X8.6
-
9206692066-0071 PLUGPLUG
-
9215392153-0713 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92153A92153-1356 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9215492154-0077 BOLT, SOCKET, 8X23BOLT, SOCKET, 8X23
-
92154A92154-1167 BOLT, 26X18BOLT, 26X18
-
92154B92154-1900 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
9216092160-1613 DAMPERDAMPER
-
9220092200-0036 WASHERWASHER
-
92200A92200-0081 WASHER, 27X42X2.3WASHER, 27X42X2.3
-
92200B92200-0862 WASHER, 36X47X0.6WASHER, 36X47X0.6
-
9221092210-0095 NUT, 35MMNUT, 35MM
-
92210A92210-0099 NUT, 6MMNUT, 6MM
-
92210B92210-0823 NUT, 35MMNUT, 35MM
