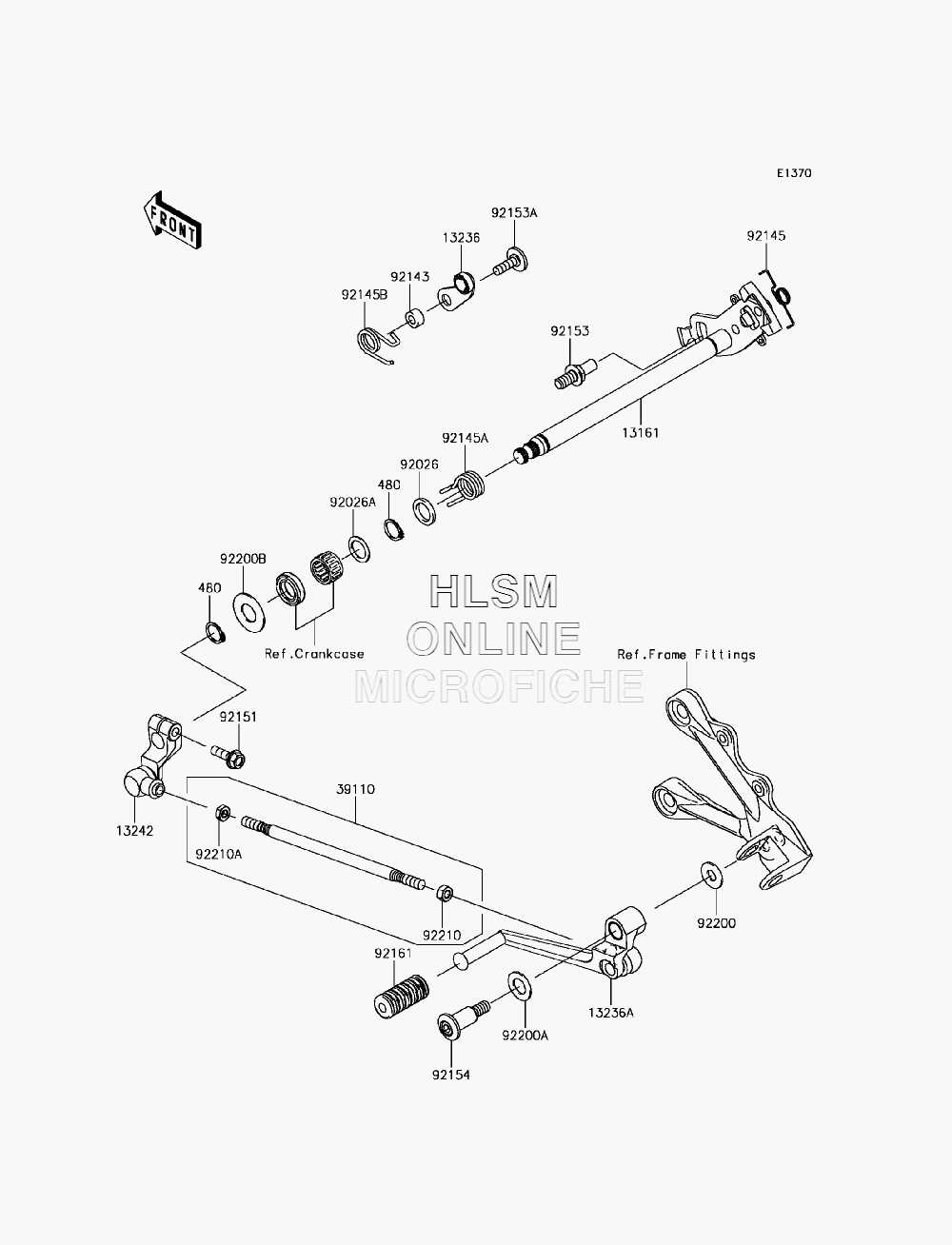

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-6R (ZX636EGF) - 2016 года выпуска
-
№АртикулНазвание
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
1316113161-0054 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-0114 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
13236A13236-0723 LEVER-COMP, CHANGE PEDALLEVER-COMP, CHANGE PEDAL
-
1324213242-0093 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
3911039110-0021 ROD-ASSY-TIEROD-ASSY-TIE
-
9202692026-0107 SPACER, 14X20X2.3SPACER, 14X20X2.3
-
92026A92026-1534 SPACER, 14X20X1.0SPACER, 14X20X1.0
-
9214392143-1595 COLLARCOLLAR
-
9214592145-0414 SPRINGSPRING
-
92145A92145-0415 SPRING, RETURNSPRING, RETURN
-
92145B92145-0717 SPRING, DRUM POSITIONSPRING, DRUM POSITION
-
9215192151-1226 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9215392153-0421 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92153A92153-1505 BOLT, 6X20BOLT, 6X20
-
9215492154-0109 BOLT, SOCKET, 8X37BOLT, SOCKET, 8X37
-
9216192161-1300 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9220092200-0198 WASHER, 8.5X20X1.5WASHER, 8.5X20X1.5
-
92200A92200-0199 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
92200B92200-0265 WASHERWASHER
-
9221092210-1100 NUT, 6MMNUT, 6MM
-
92210A92210-1101 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
