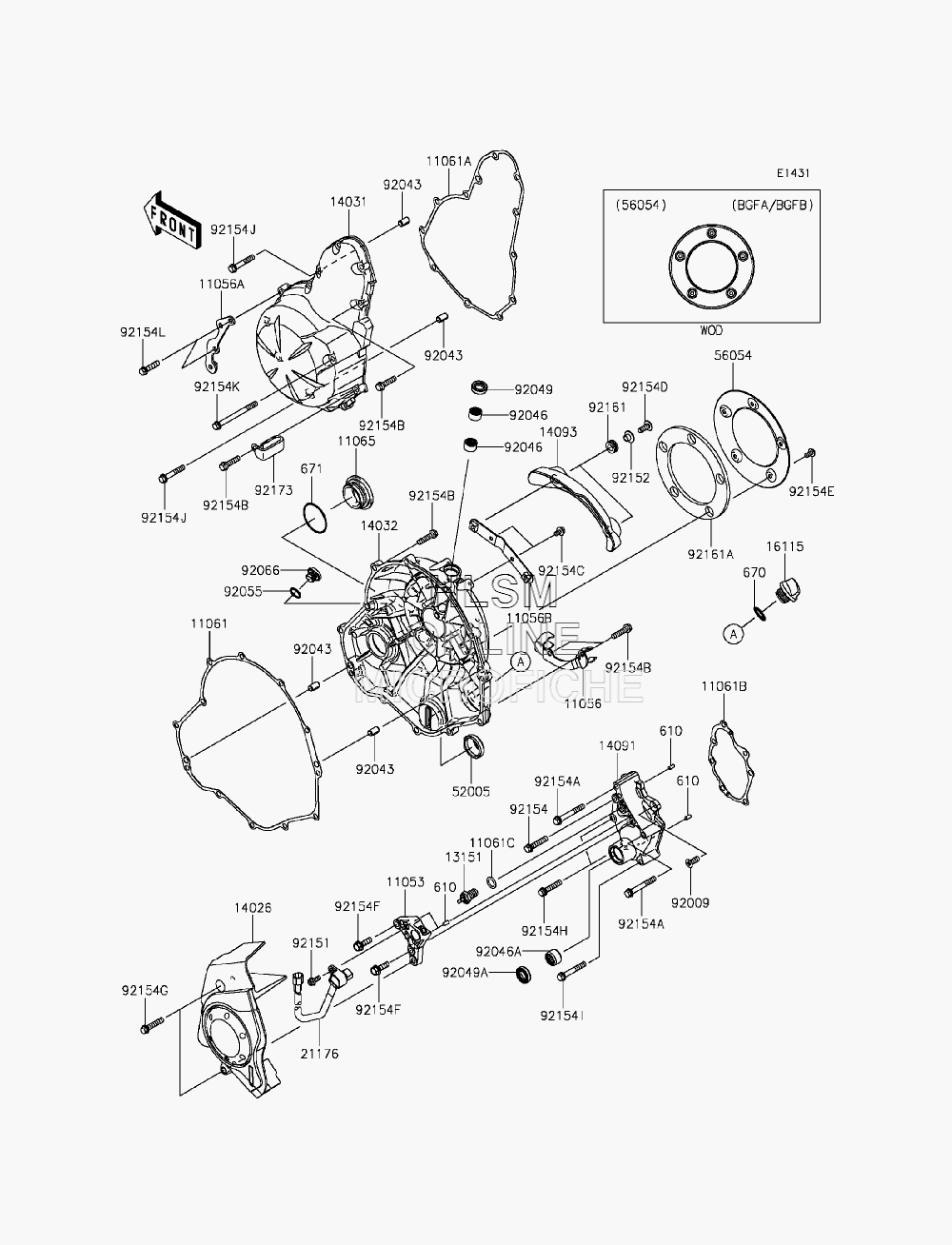

ENGINE COVER для Kawasaki VULCAN S ABS SE (EN650BGFA) - 2016 года выпуска
-
№АртикулНазвание
-
1105311053-1739 BRACKETBRACKET
-
1105611056-4259 BRACKET, BRAKE HOSE, REARBRACKET, BRAKE HOSE, REAR
-
11056A11056-4435 BRACKET, RESERVOIRBRACKET, RESERVOIR
-
11056B11056-7318 BRACKET, RELEASE COVERBRACKET, RELEASE COVER
-
1106111061-0164 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061A11061-0165 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061B11061-0166 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
11061C11061-0373 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
1106511065-0281 CAPCAP
-
1315113151-1102 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1402614026-0092 COVER-CHAINCOVER-CHAIN
-
1403114031-0599 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0591 COVER-CLUTCHCOVER-CLUTCH
-
1409114091-1673 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
1409314093-0258 COVER, CLUTCH RELEASECOVER, CLUTCH RELEASE
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
2117621176-0065 SENSOR, SPEEDSENSOR, SPEED
-
5200552005-0071 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5605456054-1832 MARK, CLUTCH COVERMARK, CLUTCH COVER
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
92046A92046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
-
92049A92049-1519 SEAL-OIL, TC13225.5SEAL-OIL, TC13225.5
-
9205592055-1011 RING-O, 13.0X1.9RING-O, 13.0X1.9
-
9206692066-0131 PLUG, 12X9.1PLUG, 12X9.1
-
9215192151-1305 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9215292152-1602 COLLAR, 6.3X8.3X7.2COLLAR, 6.3X8.3X7.2
-
9215492154-0727 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154A92154-0728 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
92154B92154-0819 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92154C92154-0964 BOLT, FLANGED, 5X8BOLT, FLANGED, 5X8
-
92154D92154-1678 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92154E92154-1691 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
92154F92154-1771 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
92154G92154-1772 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154H92154-1773 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
670670B2020 O RING, 20MMO RING, 20MM
-
671671B2540 O RING, 40MMO RING, 40MM
-
92154I92154-1774 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
92154J92154-1779 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
92154K92154-1780 BOLT, FLANGED, 6X70BOLT, FLANGED, 6X70
-
92154L92154-1785 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216192161-0664 DAMPER, 8.3X16X6.4DAMPER, 8.3X16X6.4
-
92161A92161-1767 DAMPERDAMPER
-
9217392173-0725 CLAMPCLAMP
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE LINES
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COWLING
- COWLING - UPPER
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DECALS (BLUE/BLACK)
- • ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FENDER - STRUT COVER
- FOG LAMP
- FOOT PEG
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE - TIE ROD (OPTIONAL)
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HANDLEBAR (OPTIONAL)
- HEADLIGHT(S)
- HELMET LOCK ETC.
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER COVER
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SEAT - PASSENGER
- SEAT - REDUCED REACH
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR W/ SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PIPE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
