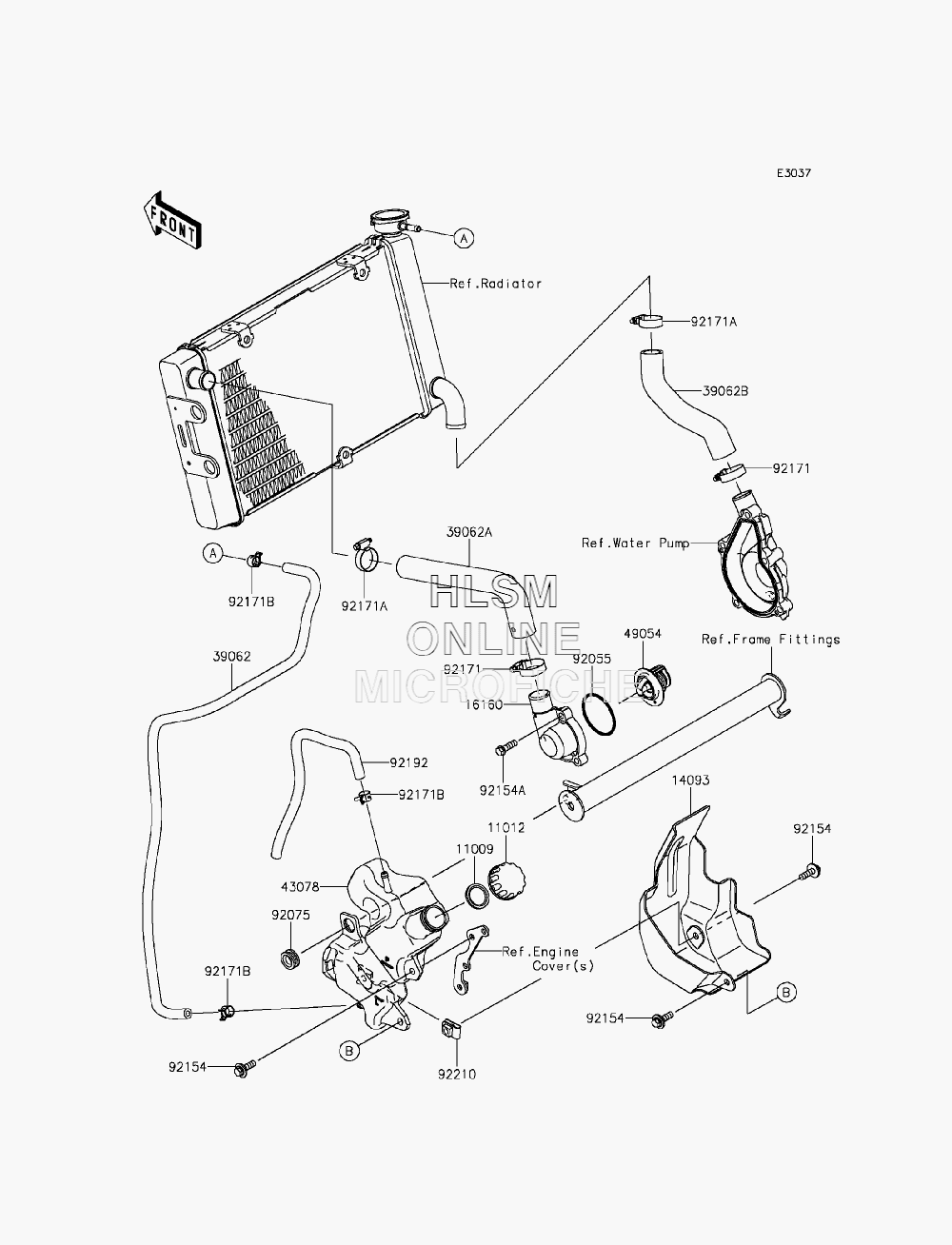

WATER PIPE для Kawasaki VULCAN S ABS SE (EN650BGFA) - 2016 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1409314093-0098 COVER, RESERVOIRCOVER, RESERVOIR
-
1616016160-0766 BODY, THERMOBODY, THERMO
-
3906239062-0670 HOSE-COOLING, RADI.-RESERVOIRHOSE-COOLING, RADI.-RESERVOIR
-
39062A39062-0671 HOSE-COOLING, HEAD-RADIATORHOSE-COOLING, HEAD-RADIATOR
-
39062B39062-0672 HOSE-COOLING, RADIATOR-PUMPHOSE-COOLING, RADIATOR-PUMP
-
4307843078-0579 RESERVOIRRESERVOIR
-
4905449054-0001 THERMOSTATTHERMOSTAT
-
9205592055-0160 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207592075-1634 DAMPERDAMPER
-
9215492154-1577 BOLT, FLANGED-WP, 6X20BOLT, FLANGED-WP, 6X20
-
92154A92154-1778 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217192171-0261 CLAMPCLAMP
-
92171A92171-0337 CLAMPCLAMP
-
92171B92171-1992 CLAMP, 10.5X8X0.7CLAMP, 10.5X8X0.7
-
9219292192-1387 TUBE, BREATHERTUBE, BREATHER
-
9221092210-0933 NUT, CLIP, 6MMNUT, CLIP, 6MM
