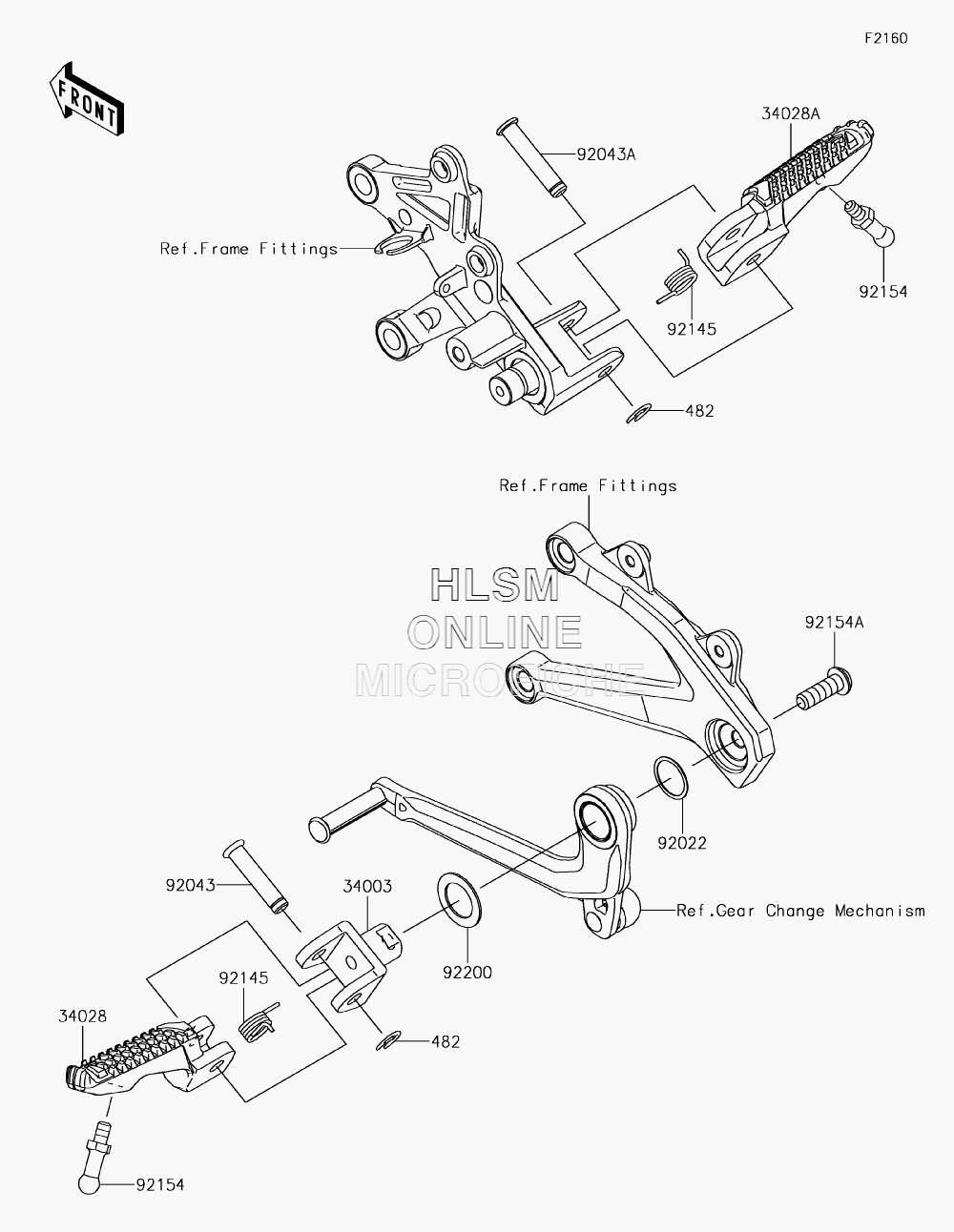

FOOTRESTS для Kawasaki NINJA H2R (ZX1000YHF) - 2017 года выпуска
-
№АртикулНазвание
-
3400334003-0161-53G HOLDER-STEP, LEFT HAND, (GRAY)HOLDER-STEP, LEFT HAND, (GRAY)
-
3402834028-0342 STEP, LEFT HANDSTEP, LEFT HAND
-
34028A34028-0343 STEP, RIGHT HANDSTEP, RIGHT HAND
-
482482EB7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
9202292022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9204392043-0856 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-0857 PIN, 8X40.5PIN, 8X40.5
-
9214592145-1656 SPRING, 13X1.6SPRING, 13X1.6
-
9215492154-1718 BOLT, BANK SENSOR, 6X10BOLT, BANK SENSOR, 6X10
-
92154A92154-1737 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9220092200-1680 WASHER, 18.3X28X1WASHER, 18.3X28X1
