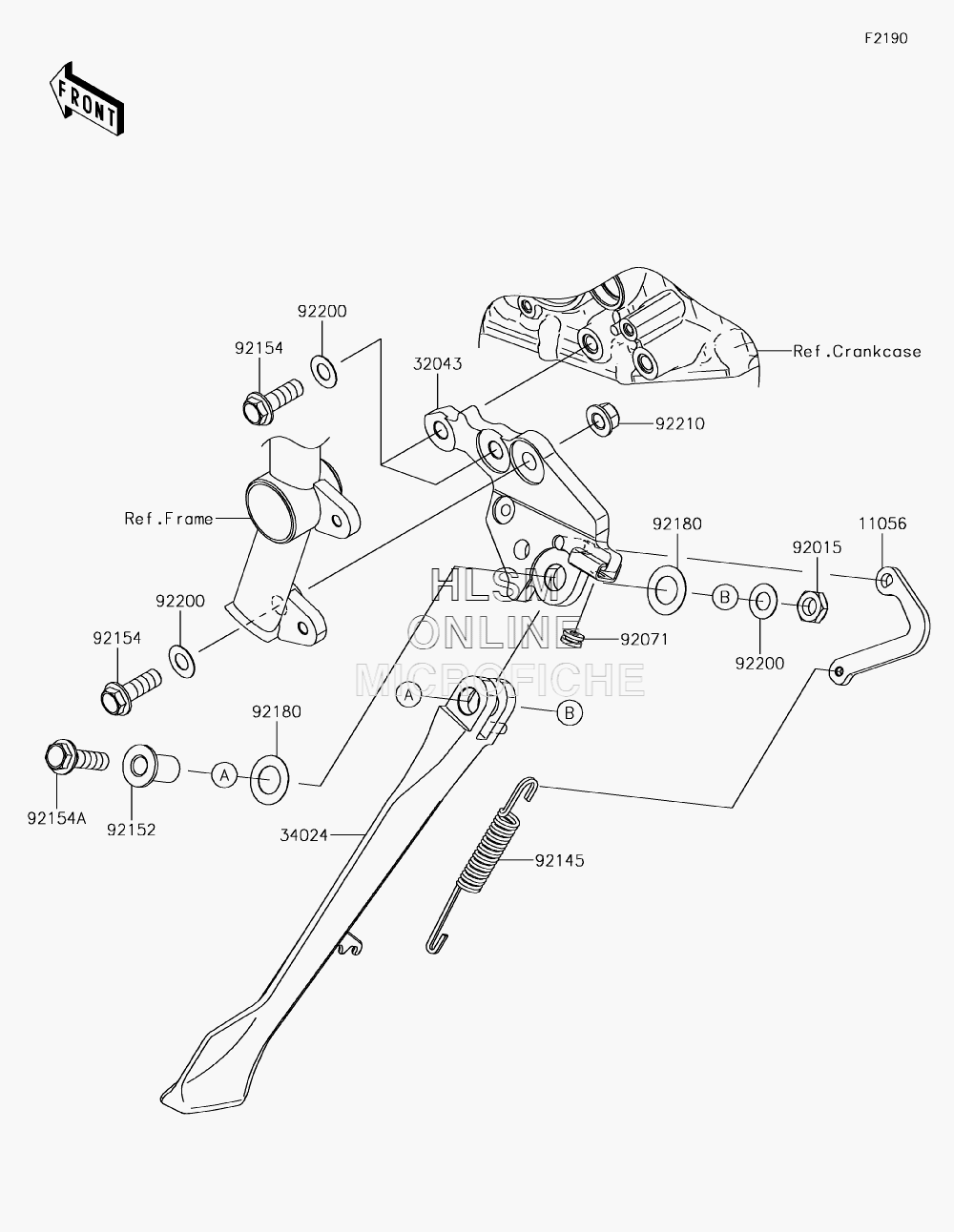

STAND(S) для Kawasaki NINJA H2R (ZX1000YHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-4484 BRACKET, LINKBRACKET, LINK
-
3204332043-0609 BRACKET-STANDBRACKET-STAND
-
3402434024-0135 STAND-SIDESTAND-SIDE
-
9201592015-1188 NUT, LOCK, 10MM, (BLACK)NUT, LOCK, 10MM, (BLACK)
-
9207192071-2126 GROMMET, 1.8X12X6GROMMET, 1.8X12X6
-
9214592145-1639 SPRING, SIDE STANDSPRING, SIDE STAND
-
9215292152-1951 COLLAR, 10.2X24X27.6COLLAR, 10.2X24X27.6
-
9215492154-1645 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
92154A92154-1808 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9218092180-0812 SHIM, 16X28X0.4SHIM, 16X28X0.4
-
9220092200-1732 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
