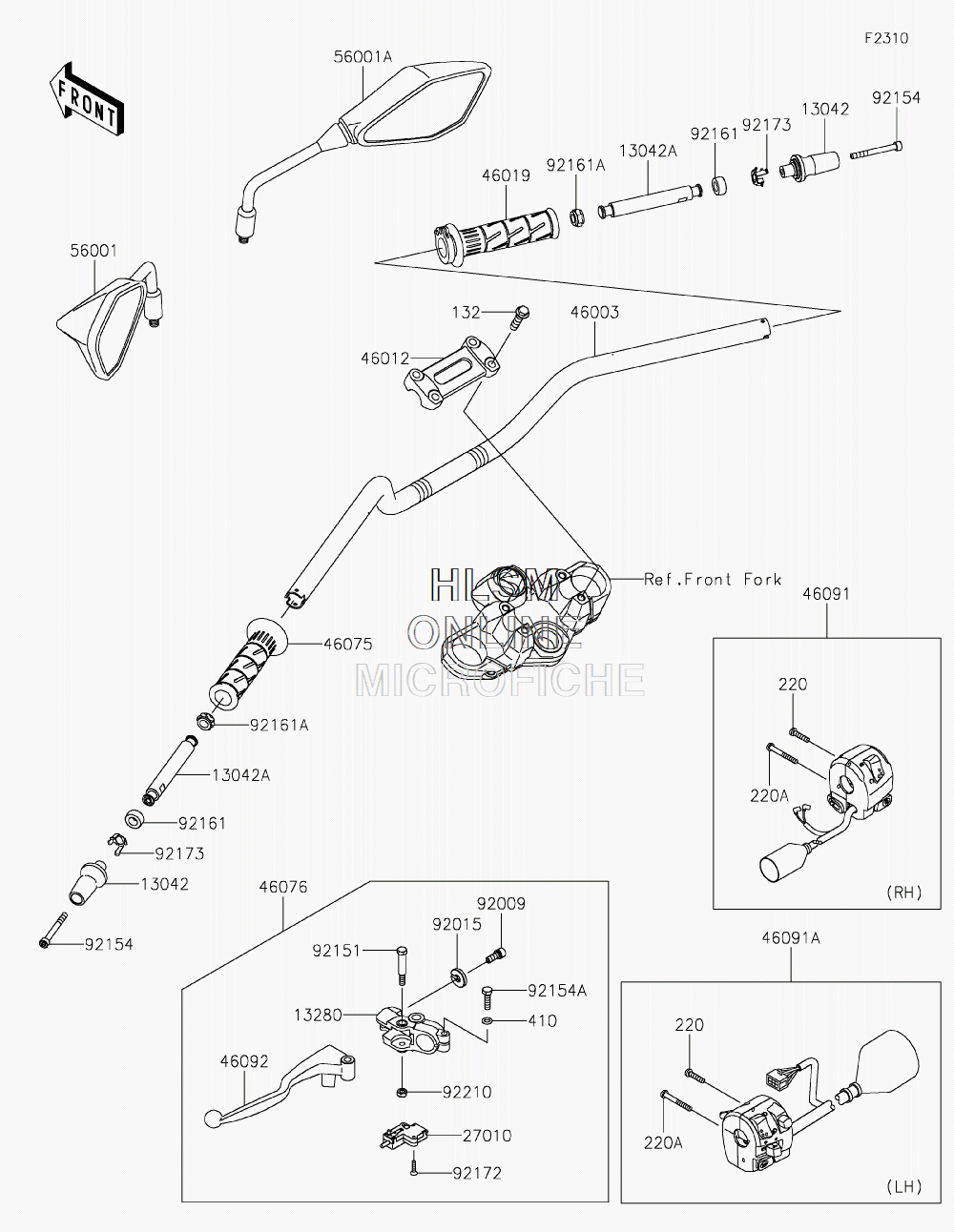

HANDLEBAR для Kawasaki VERSYS-X 300 (KLE300BHF) - 2017 года выпуска
-
№АртикулНазвание
-
1304213042-0742 WEIGHT, HANDLE, OUTERWEIGHT, HANDLE, OUTER
-
13042A13042-0761 WEIGHT, HANDLE, INNERWEIGHT, HANDLE, INNER
-
132132BC0830 BOLT-FLANGED-SMALL, 8X30BOLT-FLANGED-SMALL, 8X30
-
1328013280-0105 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
220220AB0522 SCREW-PAN-CROS, 5X22SCREW-PAN-CROS, 5X22
-
220A220AB0540 SCREW-PAN-CROS, 5X40SCREW-PAN-CROS, 5X40
-
2701027010-0729 SWITCH, CLUTCHSWITCH, CLUTCH
-
410410AB0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
4600346003-0696-18R HANDLE, (F.S.BLACK) (FOR ALL COLORS)HANDLE, (F.S.BLACK) (FOR ALL COLORS)
-
4601246012-0010-18R HOLDER-HANDLE, UPPER, (F.S.BLACK) (FOR ALL COLORS)HOLDER-HANDLE, UPPER, (F.S.BLACK) (FOR ALL COLORS)
-
4601946019-0060 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0564 GRIP, HANDLE, LEFT HANDGRIP, HANDLE, LEFT HAND
-
4607646076-0143 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0352 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-0353 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-0571 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
5600156001-0299 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-0300 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9200992009-1134 SCREW, CABLE ADJUST, 8MM, (BLACK)SCREW, CABLE ADJUST, 8MM, (BLACK)
-
9201592015-1197 NUT, CABLE ADJUST LOCK, 8MM, (BLACK)NUT, CABLE ADJUST LOCK, 8MM, (BLACK)
-
9215192151-1986 BOLT, LEVER SETBOLT, LEVER SET
-
9215492154-1299 BOLT, SOCKET, 6X55BOLT, SOCKET, 6X55
-
92154A92154-1422 BOLT, UPSET, 6X22BOLT, UPSET, 6X22
-
9216192161-1926 DAMPERDAMPER
-
92161A92161-1930 DAMPER, 10X16X10, INNERDAMPER, 10X16X10, INNER
-
9217292172-0788 SCREW, 3X16SCREW, 3X16
-
9217392173-1386 CLAMP, WEIGHTCLAMP, WEIGHT
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
