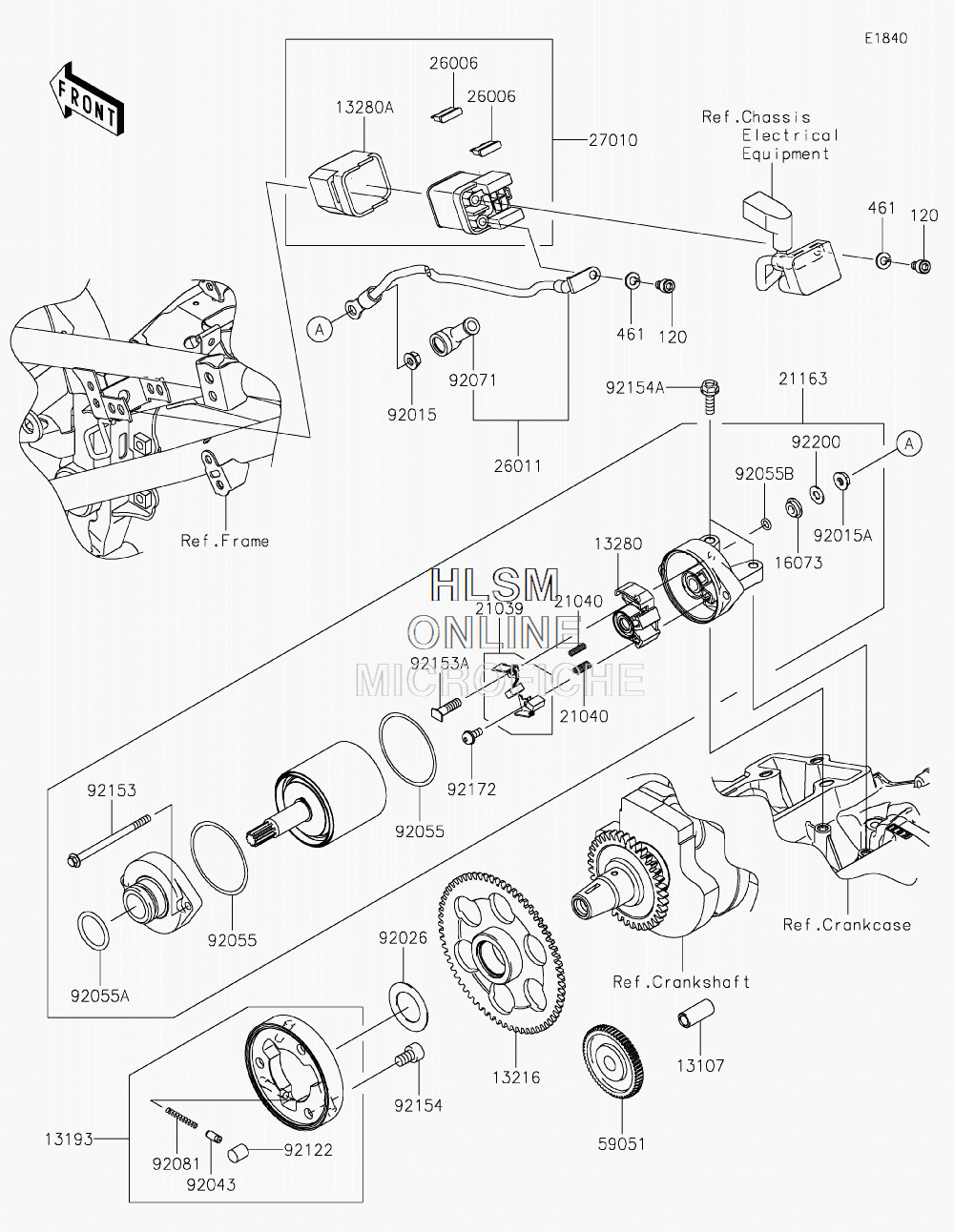

STARTER MOTOR для Kawasaki VERSYS-X 300 (KLE300BHF) - 2017 года выпуска
-
№АртикулНазвание
-
120120CB0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
1310713107-0743 SHAFT, 7.8X12X26.5SHAFT, 7.8X12X26.5
-
1319313193-1002 CLUTCH-ASSY-ONEWAYCLUTCH-ASSY-ONEWAY
-
1321613216-0880 GEAR-COMP, ONEWAY CLUTCH, 65TGEAR-COMP, ONEWAY CLUTCH, 65T
-
1328013280-0261 HOLDERHOLDER
-
13280A13280-0301 HOLDERHOLDER
-
1607316073-0053 INSULATORINSULATOR
-
2103921039-0005 BRUSH, CARBON SETBRUSH, CARBON SET
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0717 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, BLADE, 30A, (GREEN)FUSE, BLADE, 30A, (GREEN)
-
2601126011-0958 WIRE-LEAD, STARTERWIRE-LEAD, STARTER
-
2701027010-0099 SWITCH, MAGNETICSWITCH, MAGNETIC
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
5905159051-0722 GEAR-SPUR, IDLERGEAR-SPUR, IDLER
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202692026-0846 SPACER, 25.2X40X1.0SPACER, 25.2X40X1.0
-
9204392043-132 PINPIN
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
9207192071-0705 GROMMETGROMMET
-
9208192081-159 SPRING, COILSPRING, COIL
-
9212292122-006 ROLLERROLLER
-
9215392153-1851 BOLT, SETBOLT, SET
-
92153A92153-1866 BOLTBOLT
-
9215492154-0175 BOLT, SOCKET, 8X13BOLT, SOCKET, 8X13
-
92154A92154-0786 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217292172-0334 SCREWSCREW
-
9220092200-0386 WASHERWASHER
