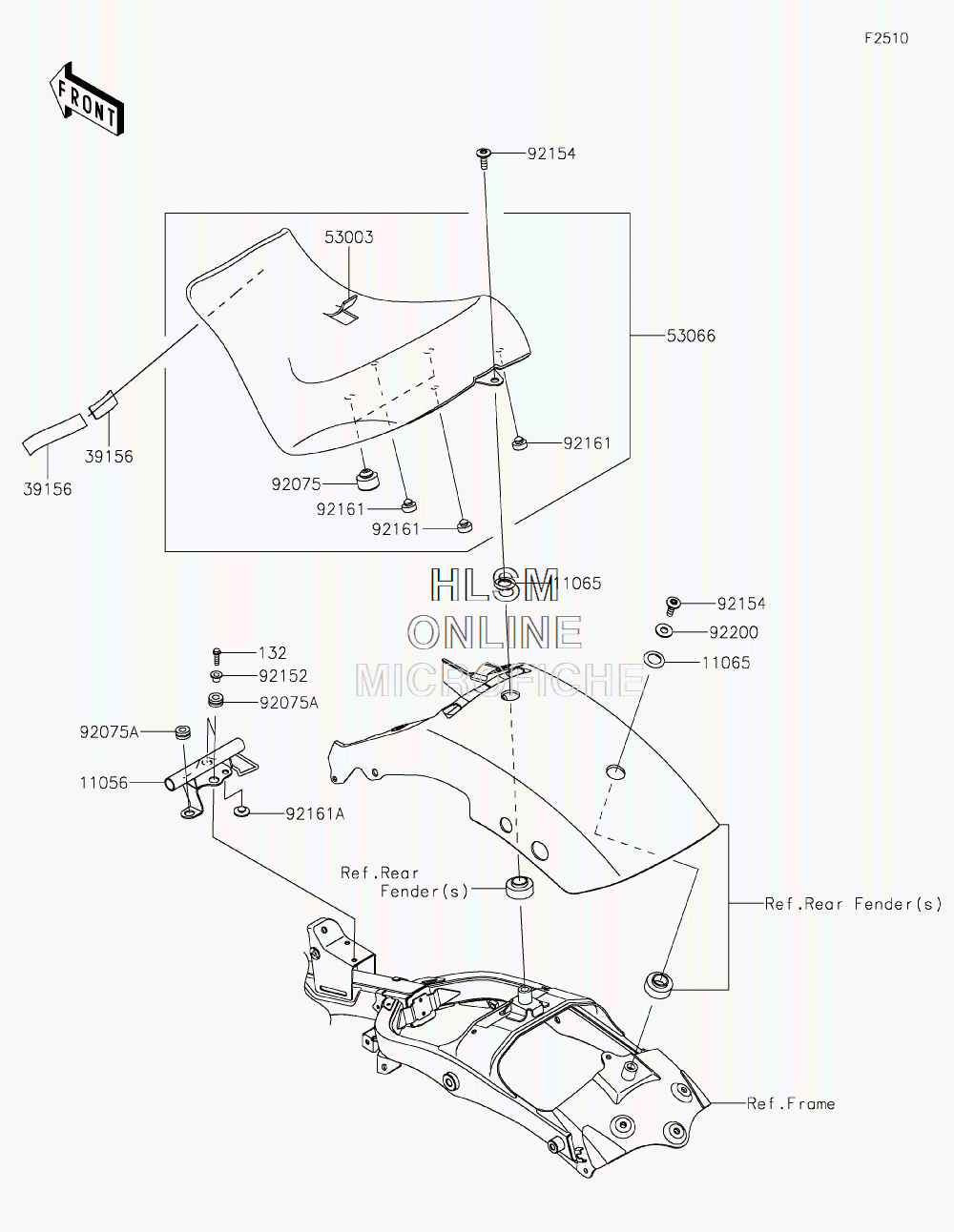

SEAT для Kawasaki VULCAN S (EN650CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-4009 BRACKET, SEATBRACKET, SEAT
-
1106511065-0872 CAPCAP
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
3915639156-1934 PAD, 20X100X2PAD, 20X100X2
-
5300353003-0387-MA LEATHER, FRONT SEAT, (BLACK)LEATHER, FRONT SEAT, (BLACK)
-
5306653066-0502-MA SEAT-ASSY, FRONT, (BLACK)SEAT-ASSY, FRONT, (BLACK)
-
9207592075-015 DAMPERDAMPER
-
92075A92075-1880 DAMPERDAMPER
-
9215292152-0977 COLLAR, 6.8X10X11.6COLLAR, 6.8X10X11.6
-
9215492154-1805 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216192161-0855 DAMPER, 10X20X8DAMPER, 10X20X8
-
92161A92161-1685 DAMPER, 8X22X10DAMPER, 8X22X10
-
9220092200-0987 WASHER, 10.5X24X2WASHER, 10.5X24X2
