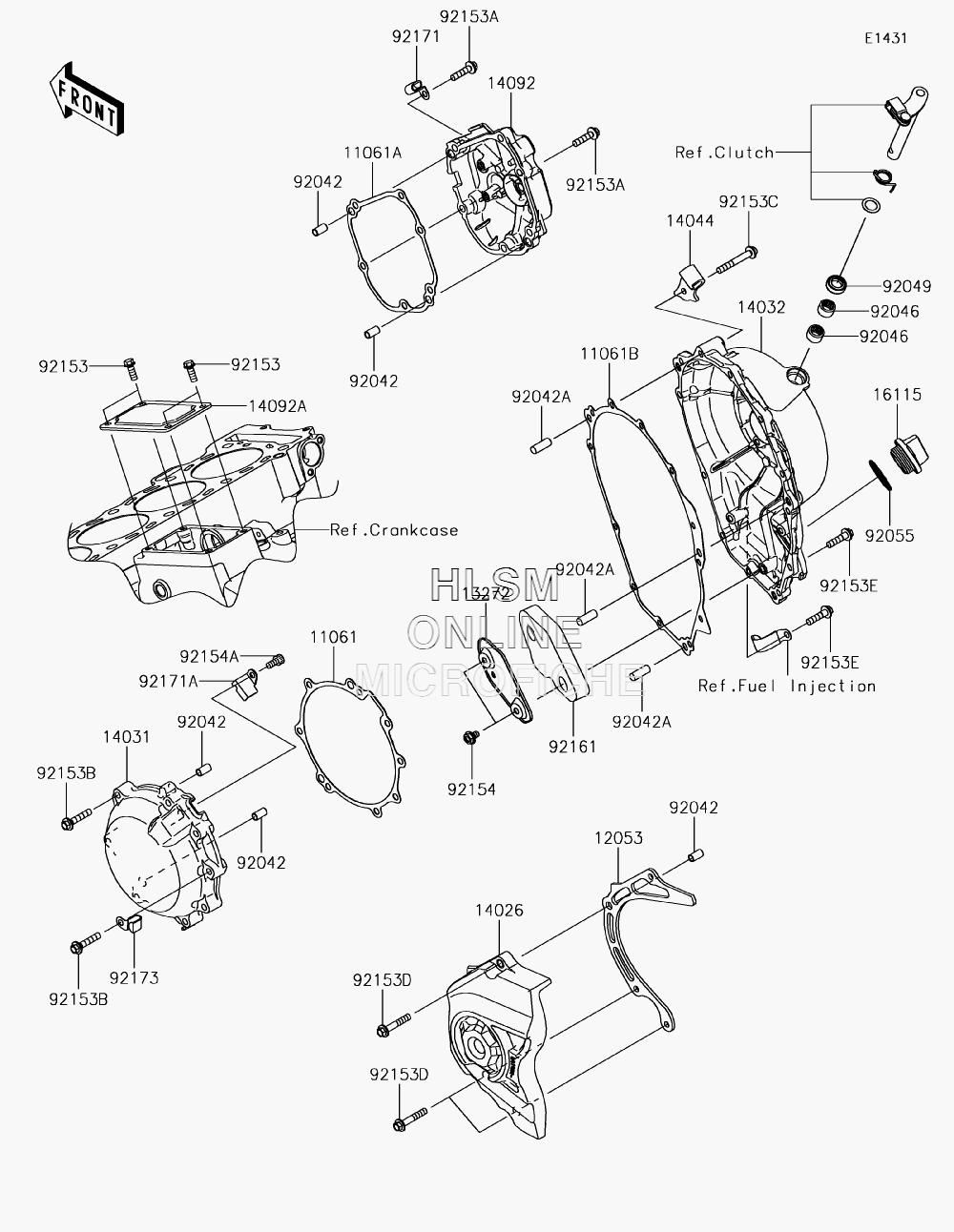

ENGINE COVER для Kawasaki NINJA ZX-10R (ZX1000RJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0441 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-0442 GASKET, PULSER COVERGASKET, PULSER COVER
-
11061B11061-0735 GASKETGASKET
-
1205312053-0229 GUIDE-CHAINGUIDE-CHAIN
-
1327213272-0892 PLATEPLATE
-
1402614026-0124 COVER-CHAINCOVER-CHAIN
-
1403114031-0555 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0560 COVER-CLUTCHCOVER-CLUTCH
-
1404414044-0566 HOLDER-CABLEHOLDER-CABLE
-
1409214092-0152 COVER, PULSERCOVER, PULSER
-
14092A14092-0153 COVER, STARTERCOVER, STARTER
-
1611516115-1009 CAP-OIL FILLERCAP-OIL FILLER
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
92042A92042-044 PIN, DOWEL, 8X22PIN, DOWEL, 8X22
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
-
9205592055-049 RING-O, 31.5X2.6RING-O, 31.5X2.6
-
9215392153-0695 BOLT, 6X16BOLT, 6X16
-
92153A92153-1569 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92153B92153-1574 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92153C92153-1575 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
92153D92153-1579 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
92153E92153-1716 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9215492154-0492 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
92154A92154-1889 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-0873 DAMPER, CLUTCH COVERDAMPER, CLUTCH COVER
-
9217192171-0534 CLAMPCLAMP
-
92171A92171-0938 CLAMPCLAMP
-
9217392173-0082 CLAMPCLAMP
