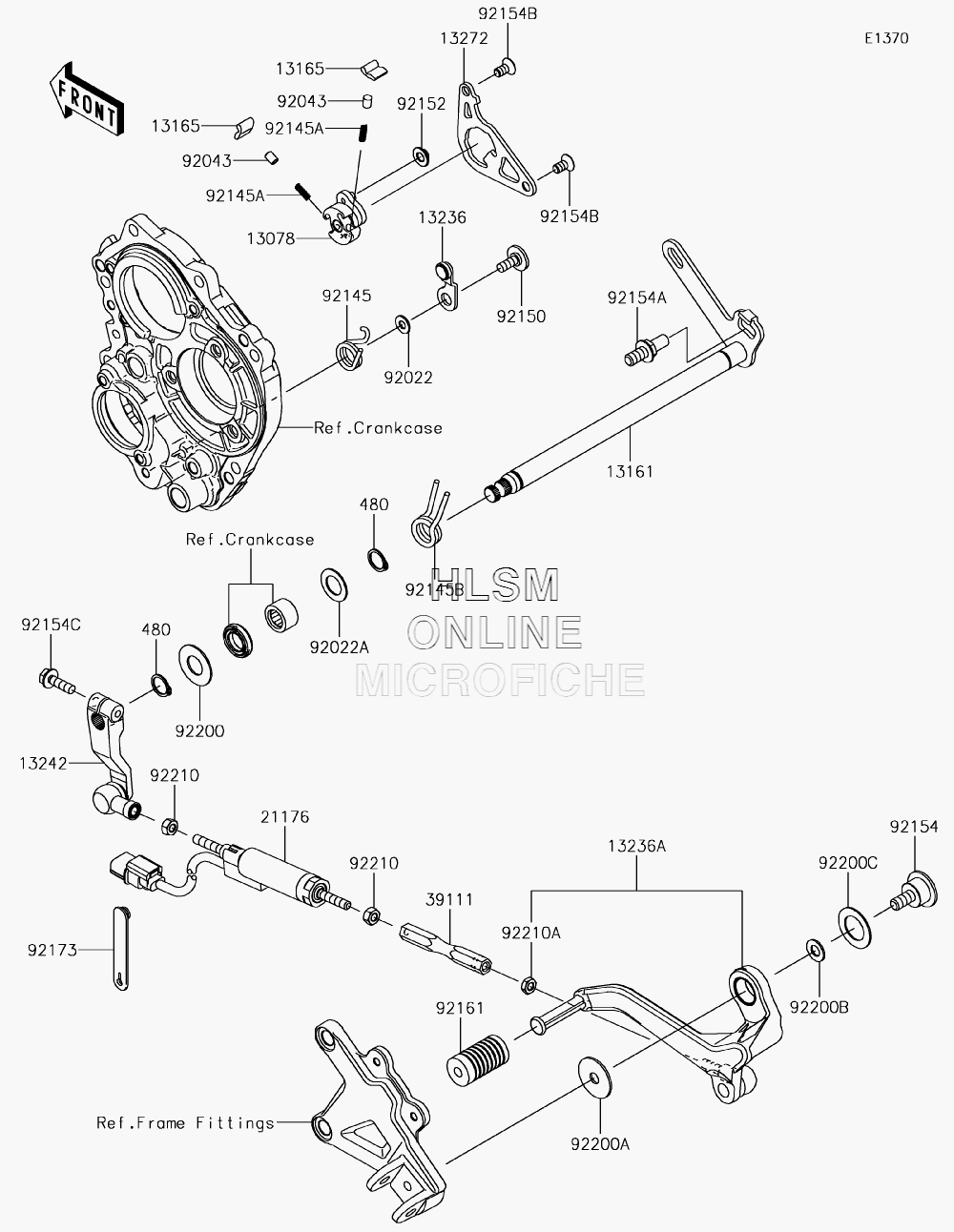

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-10R (ZX1000RJF) - 2018 года выпуска
-
№АртикулНазвание
-
1307813078-0012 RATCHETRATCHET
-
1316113161-0078 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-0018 PAWLPAWL
-
1323613236-0192 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
13236A13236-0769 LEVER-COMP, CHANGE PEDALLEVER-COMP, CHANGE PEDAL
-
1324213242-0128 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
1327213272-2171 PLATEPLATE
-
2117621176-0811 SENSOR, QUICK SHIFTERSENSOR, QUICK SHIFTER
-
3911139111-0338 ROD-TIEROD-TIE
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
92022A92022-272 WASHER, 14.3X24X1WASHER, 14.3X24X1
-
9204392043-1676 PIN, PLUNGERPIN, PLUNGER
-
9214592145-0849 SPRINGSPRING
-
92145A92145-1490 SPRINGSPRING
-
92145B92145-1734 SPRINGSPRING
-
9215092150-1673 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9215292152-1414 COLLARCOLLAR
-
9215492154-1884 BOLTBOLT
-
92154A92154-1885 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92154B92154-1886 BOLT, TORX, 6X8.7BOLT, TORX, 6X8.7
-
92154C92154-2090 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9216192161-0871 DAMPERDAMPER
-
9217392173-1526 CLAMPCLAMP
-
9220092200-0265 WASHERWASHER
-
92200A92200-0810 WASHER, 8.2X30X1.5WASHER, 8.2X30X1.5
-
92200B92200-0811 WASHER, 8.2X18X1.2WASHER, 8.2X18X1.2
-
92200C92200-0812 WASHER, 18.3X30X1WASHER, 18.3X30X1
-
9221092210-1100 NUT, 6MMNUT, 6MM
-
92210A92210-1101 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
