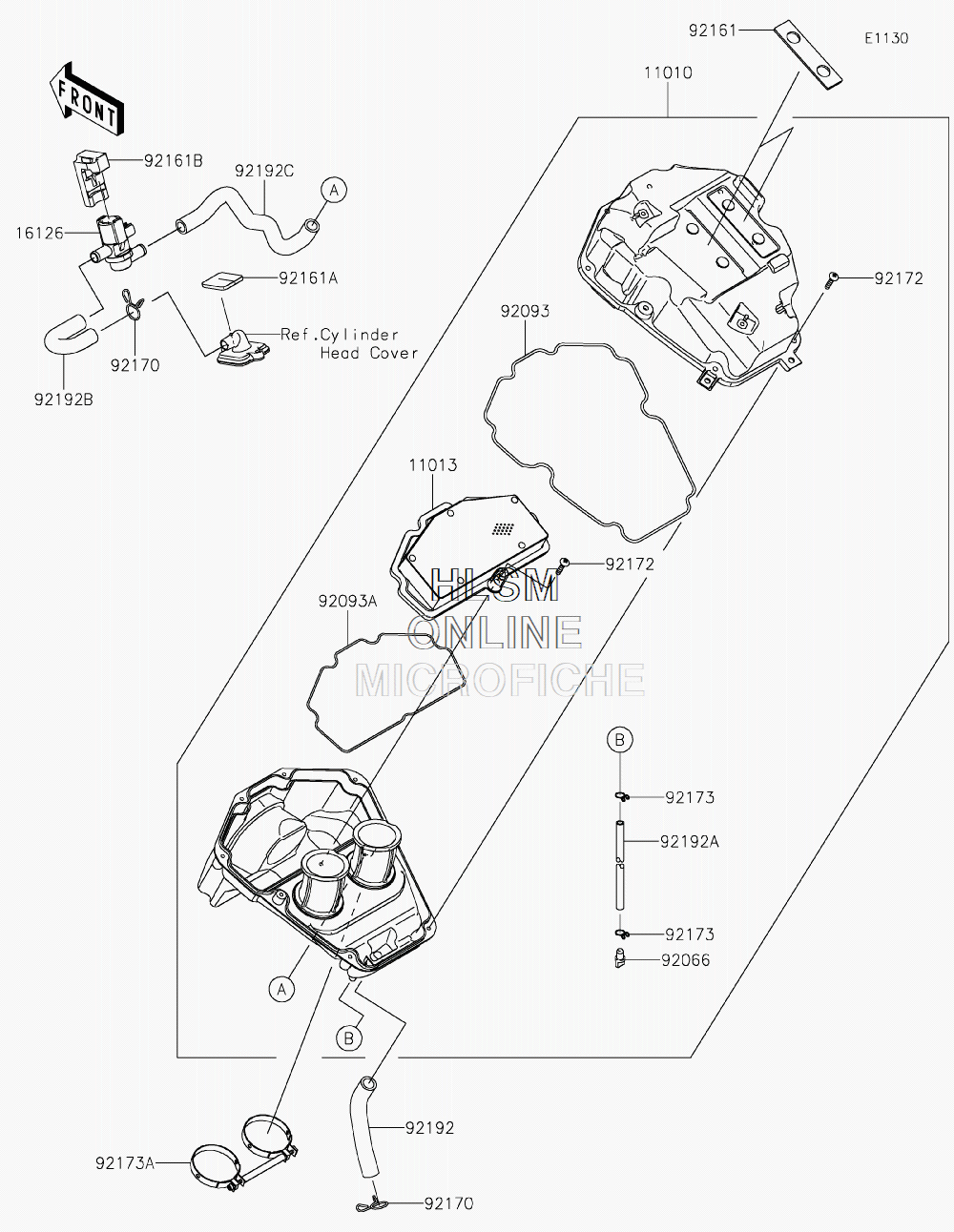

AIR CLEANER для Kawasaki Z650 ABS (ER650HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1101011010-0852 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-0745 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1612616126-0019 VALVE, AIR SWITINGVALVE, AIR SWITING
-
9206692066-0782 PLUG, DRAINPLUG, DRAIN
-
9209392093-0610 SEALSEAL
-
92093A92093-0611 SEAL, ELEMENTSEAL, ELEMENT
-
9216192161-1428 DAMPERDAMPER
-
92161A92161-1899 DAMPERDAMPER
-
92161B92161-1933 DAMPERDAMPER
-
9217092170-1017 CLAMPCLAMP
-
9217292172-0891 SCREW, 5X25SCREW, 5X25
-
9217392173-1044 CLAMP, 10MMCLAMP, 10MM
-
92173A92173-1698 CLAMPCLAMP
-
9219292192-0958 TUBE, BREATHERTUBE, BREATHER
-
92192A92192-1380 TUBE, DRAIN, L=245TUBE, DRAIN, L=245
-
92192B92192-1698 TUBE, ASV-HEADTUBE, ASV-HEAD
-
92192C92192-1699 TUBE, A/C-ASVTUBE, A/C-ASV
Все узлы модели:
- • AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE LINES
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COOLING SYSTEM
- COWLING
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DECALS (BLACK)
- DECALS (C.L.GREEN)
- DECALS (M.M.C.GREEN)
- ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRAME SLIDER
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF. ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- PADS
- PANNIER
- RADIATOR
- RADIATOR SCREEN
- SEAT
- SEAT COVER - SINGLE
- SEAT-HIGH (OPTIONAL)
- SHROUD
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TANK BAG
- THROTTLE BODY ASSY
- TIRES
- TOPCASE BRACKET
- TRANSMISSION
- TURN SIGNALS
- U-LOCK BRACKET ETC.
- VALVE(S)
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
