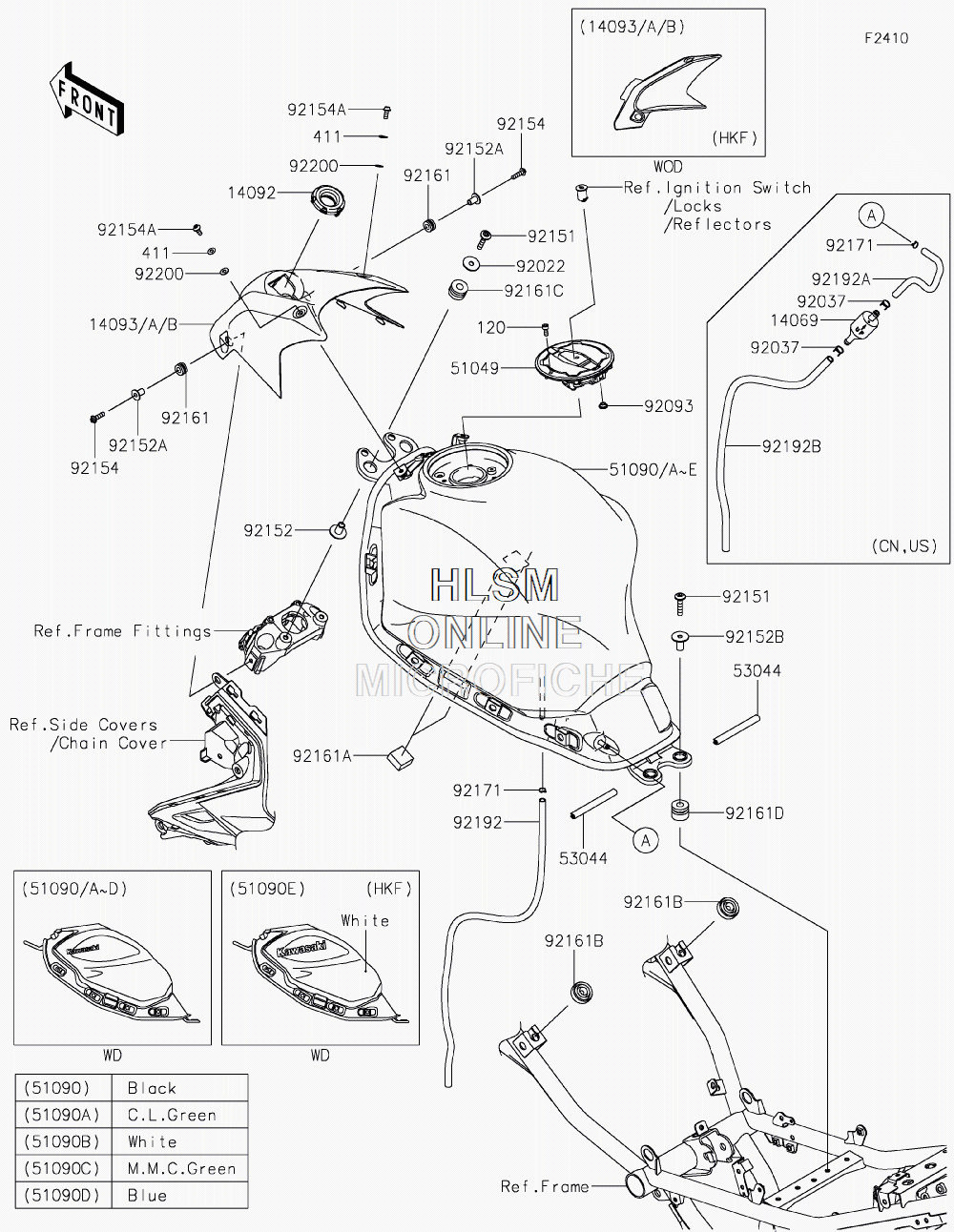

FUEL TANK для Kawasaki Z650 ABS (ER650HJF) - 2018 года выпуска
-
№АртикулНазвание
-
120120CA0512 BOLT-SOCKET, 5X12BOLT-SOCKET, 5X12
-
1406914069-1004 BREATHER, FUEL TANK (EXCEPT CALIF.)BREATHER, FUEL TANK (EXCEPT CALIF.)
-
1409214092-1033 COVER, IGNITION SW.COVER, IGNITION SW.
-
14093A14093-0483-660 COVER, TANK, (M.S.BLACK) (FOR 51P/660)COVER, TANK, (M.S.BLACK) (FOR 51P/660)
-
14093B14093-0483-739 COVER, TANK, (M.F.S.BLACK) (FOR 36T)COVER, TANK, (M.F.S.BLACK) (FOR 36T)
-
411411AA0500 WASHER-PLAIN, 5MMWASHER-PLAIN, 5MM
-
5104951049-0735 CAP-TANKCAP-TANK
-
5109051090-5054-739 TANK-COMP-FUEL, (M.F.S.BLACK) (FOR 660)TANK-COMP-FUEL, (M.F.S.BLACK) (FOR 660)
-
51090A51090-5056-51P TANK-COMP-FUEL, (C.L.GREEN) (FOR 51P)TANK-COMP-FUEL, (C.L.GREEN) (FOR 51P)
-
51090C51090-5171-36T TANK-COMP-FUEL, (M.M.C.GREEN) (FOR 36T)TANK-COMP-FUEL, (M.M.C.GREEN) (FOR 36T)
-
5304453044-0556 TRIM, L=85TRIM, L=85
-
9202292022-228 WASHER, 7X24X1.6WASHER, 7X24X1.6
-
9203792037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9209392093-1030 SEAL, FUEL TANK CAPSEAL, FUEL TANK CAP
-
9215192151-1605 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9215292152-1655 COLLAR, 6.5X10X17.6COLLAR, 6.5X10X17.6
-
92152A92152-2229 COLLAR, 5.6X16X14.2COLLAR, 5.6X16X14.2
-
92152B92152-2325 COLLAR, 6.5X10X21.1COLLAR, 6.5X10X21.1
-
9215492154-0210 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
-
92154A92154-1421 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
9216192161-0685 DAMPER, 8X16X8.6DAMPER, 8X16X8.6
-
92161A92161-0792 DAMPER, T=13DAMPER, T=13
-
92161B92161-1368 DAMPER, 14X30X10DAMPER, 14X30X10
-
92161C92161-1482 DAMPER, 10X24X15DAMPER, 10X24X15
-
92161D92161-1929 DAMPER, 10X24X19DAMPER, 10X24X19
-
9217192171-1973 CLAMP, 8X0.7 (CALIF. ONLY)CLAMP, 8X0.7 (CALIF. ONLY)
-
9217192171-1973 CLAMP, 8X0.7 (EXCEPT CALIF.)CLAMP, 8X0.7 (EXCEPT CALIF.)
-
9219292192-1085 TUBE, 6X9X620TUBE, 6X9X620
-
92192A92192-1702 TUBE, 6X9X173/35 (EXCEPT CALIF.)TUBE, 6X9X173/35 (EXCEPT CALIF.)
-
92192B92192-1724 TUBE, 7X10.5X480 (EXCEPT CALIF.)TUBE, 7X10.5X480 (EXCEPT CALIF.)
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
