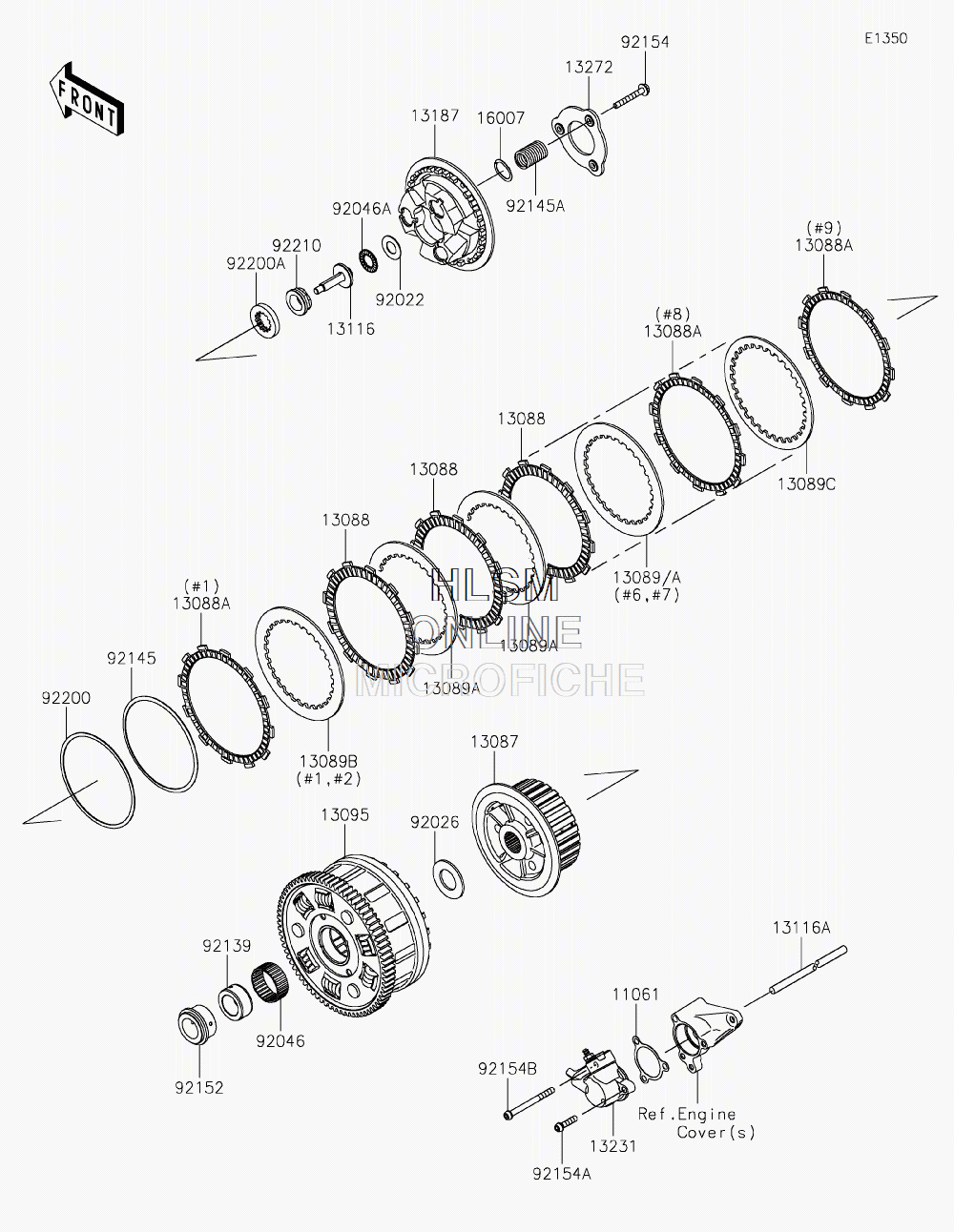

CLUTCH для Kawasaki NINJA H2 SX SE+ (ZX1002DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-1259 GASKET, CLUTCH RELEASEGASKET, CLUTCH RELEASE
-
1308713087-0579 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0575 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0576 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0027 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089A13089-0028 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
13089B13089-0030 PLATE-CLUTCH, T=2.9PLATE-CLUTCH, T=2.9
-
13089C13089-0036 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
1309513095-0593 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0732 ROD-PUSHROD-PUSH
-
13116A13116-0739 ROD-PUSHROD-PUSH
-
1318713187-0028 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323113231-0009 RELEASE-ASSY-CLUTCHRELEASE-ASSY-CLUTCH
-
1327213272-1303 PLATEPLATE
-
1600716007-0736 SEAT-SPRINGSEAT-SPRING
-
9202292022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
9204692046-0041 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
9213992139-0304 BUSHING, 25X38X17.3BUSHING, 25X38X17.3
-
9214592145-1250 SPRINGSPRING
-
92145A92145-1700 SPRINGSPRING
-
9215292152-0866 COLLARCOLLAR
-
9215492154-1909 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
92154A92154-2793 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154B92154-2794 BOLT, SOCKET, 6X70BOLT, SOCKET, 6X70
-
9220092200-1580 WASHER, T=1.2WASHER, T=1.2
-
92200A92200-1833 WASHER, TOOTHED, 38.5X25X6.3WASHER, TOOTHED, 38.5X25X6.3
-
9221092210-0397 NUTNUT
