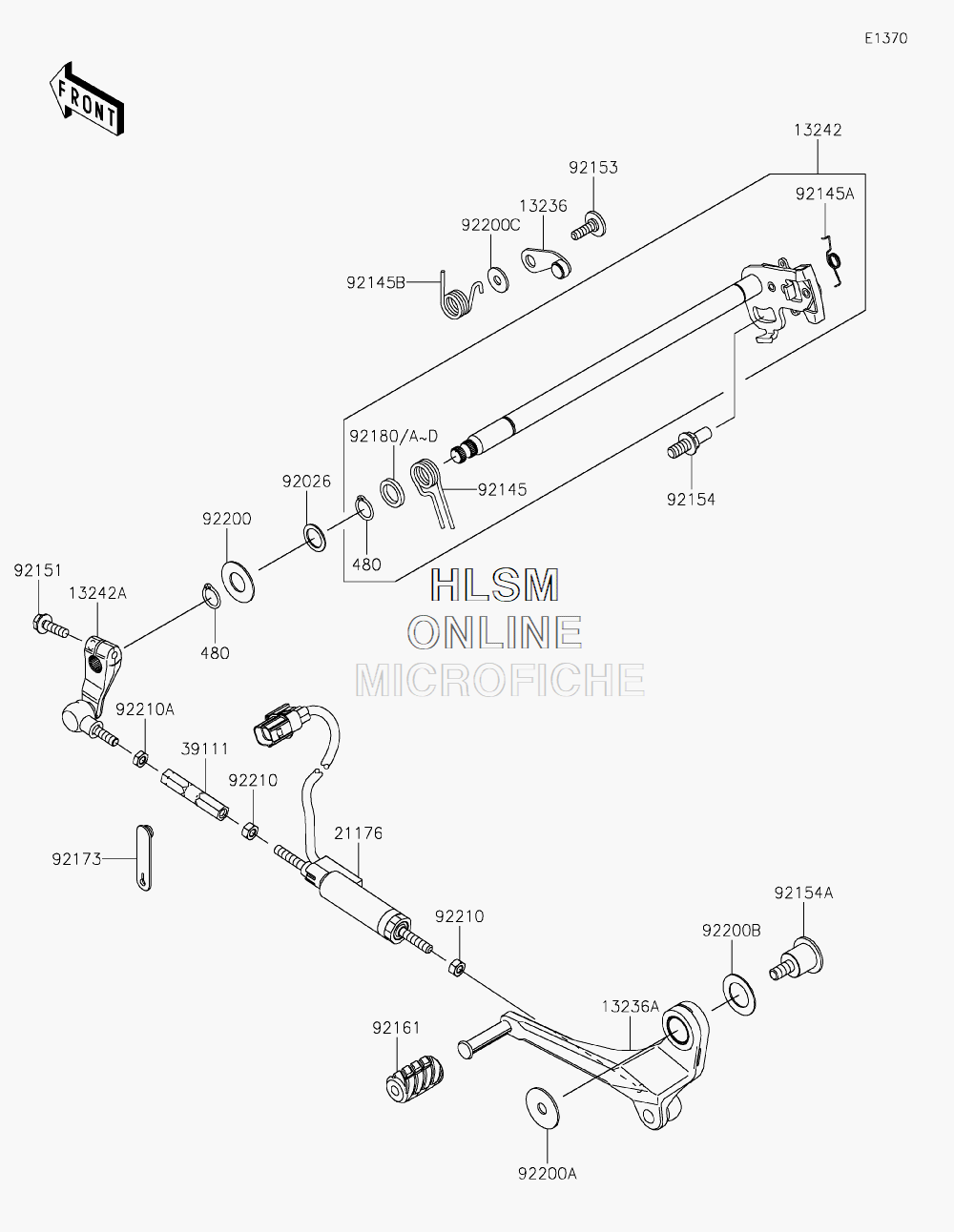

GEAR CHANGE MECHANISM для Kawasaki NINJA H2 SX SE+ (ZX1002DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1323613236-0785 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
13236A13236-0799 LEVER-COMP, CHANGE, PEDALLEVER-COMP, CHANGE, PEDAL
-
1324213242-0138 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
13242A13242-0150 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
2117621176-0865 SENSOR, QUICK SHIFTERSENSOR, QUICK SHIFTER
-
3911139111-0356 ROD-TIEROD-TIE
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
9202692026-1534 SPACER, 14X20X1.0SPACER, 14X20X1.0
-
9214592145-0415 SPRING, RETURNSPRING, RETURN
-
92145A92145-1663 SPRINGSPRING
-
92145B92145-1664 SPRING, POSITION LEVERSPRING, POSITION LEVER
-
9215192151-1226 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9215392153-1505 BOLT, 6X20BOLT, 6X20
-
9215492154-1838 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92154A92154-2822 BOLTBOLT
-
9216192161-1769 DAMPERDAMPER
-
9217392173-1229 CLAMP, RUBBER PLATECLAMP, RUBBER PLATE
-
9218092180-0963 SHIM, T=2.6SHIM, T=2.6
-
92180A92180-0964 SHIM, T=2.8SHIM, T=2.8
-
92180B92180-0965 SHIM, T=3.0SHIM, T=3.0
-
92180C92180-0966 SHIM, T=3.2SHIM, T=3.2
-
92180D92180-0967 SHIM, T=3.4SHIM, T=3.4
-
9220092200-0265 WASHERWASHER
-
92200A92200-0810 WASHER, 8.2X30X1.5WASHER, 8.2X30X1.5
-
92200B92200-0812 WASHER, 18.3X30X1WASHER, 18.3X30X1
-
92200C92200-0996 WASHER, 6.5X18X1.6WASHER, 6.5X18X1.6
-
9221092210-1100 NUT, 6MMNUT, 6MM
-
92210A92210-1101 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
