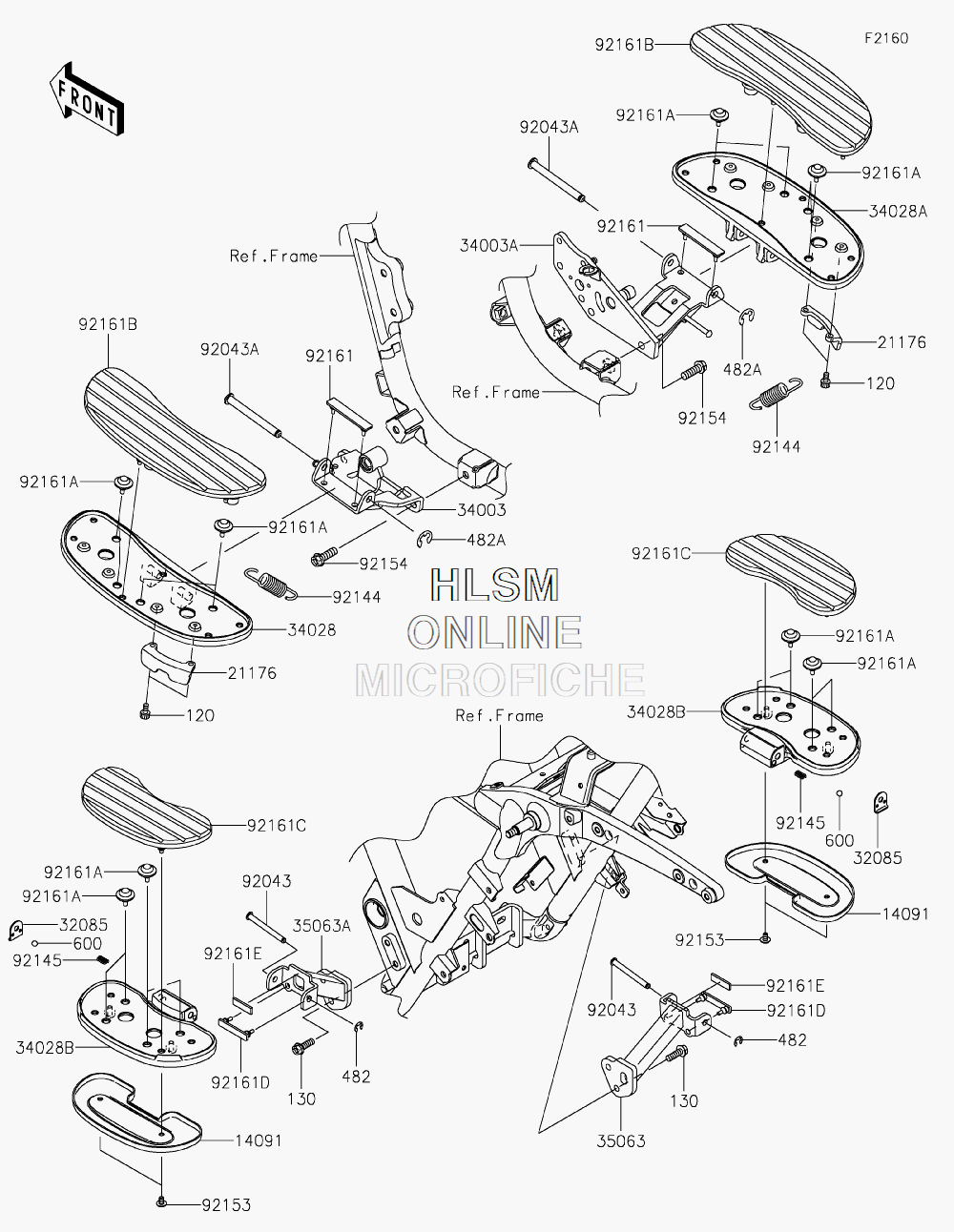

FOOTRESTS для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
120120CB0616 BOLT-SOCKET, 6X16BOLT-SOCKET, 6X16
-
130130BB0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
1409114091-1808 COVER, REAR STEPCOVER, REAR STEP
-
2117621176-0123 SENSOR, BANKSENSOR, BANK
-
3208532085-0045 STOPPER, REAR STEPSTOPPER, REAR STEP
-
3400334003-0102-18R HOLDER-STEP, FRONT, LEFT HAND, (F.S.BLACK)HOLDER-STEP, FRONT, LEFT HAND, (F.S.BLACK)
-
34003A34003-0103-18R HOLDER-STEP, FRONT, RIGHT HAND, (F.S.BLACK)HOLDER-STEP, FRONT, RIGHT HAND, (F.S.BLACK)
-
3402834028-0143 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028A34028-0144 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
34028B34028-0145 STEP, REARSTEP, REAR
-
3506335063-0649-18R STAY, REAR, RIGHT HAND, (F.S.BLACK)STAY, REAR, RIGHT HAND, (F.S.BLACK)
-
35063A35063-0669-18R STAY, REAR, LEFT HAND, (F.S.BLACK)STAY, REAR, LEFT HAND, (F.S.BLACK)
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
482A482EA8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
600600A0800 BALL-STEEL, 1/4BALL-STEEL, 1/4
-
9204392043-0054 PIN, 8X76.5PIN, 8X76.5
-
92043A92043-1707 PIN, 10X98.5PIN, 10X98.5
-
9214492144-1266 SPRINGSPRING
-
9214592145-1319 SPRINGSPRING
-
9215392153-1096 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9215492154-0284 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
9216192161-0746 DAMPER, STEP HOLDERDAMPER, STEP HOLDER
-
92161A92161-0766 DAMPER, STEPDAMPER, STEP
-
92161B92161-0770 DAMPER, FOOT BOARDDAMPER, FOOT BOARD
-
92161C92161-0771 DAMPER, REAR STEPDAMPER, REAR STEP
-
92161D92161-0772 DAMPER, REAR STEPDAMPER, REAR STEP
-
92161E92161-0840 DAMPER, 10X35X3DAMPER, 10X35X3
