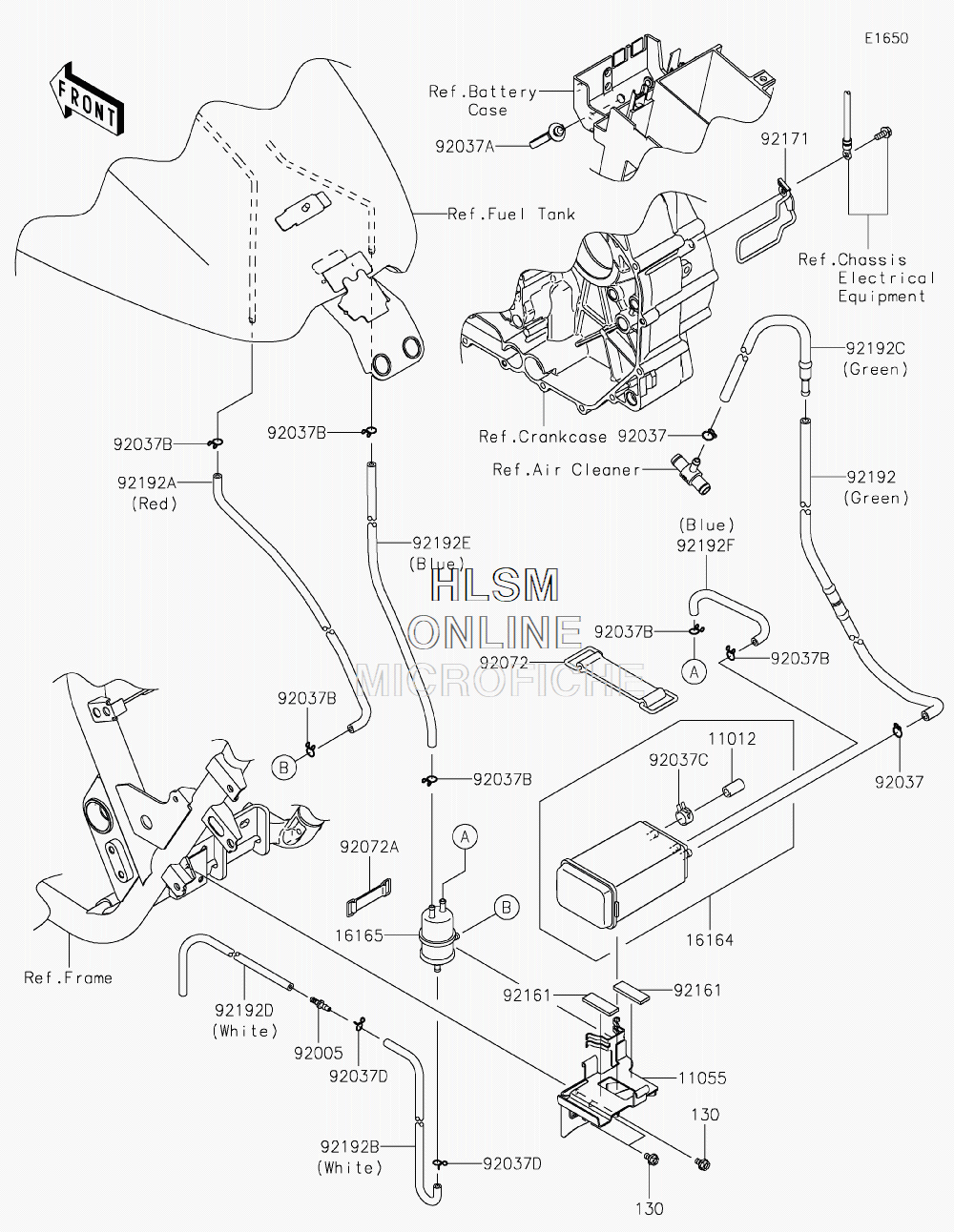

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1105511055-1653 BRACKETBRACKET
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
1616416164-0017 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1206 FITTINGFITTING
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1459 CLAMP, CABLECLAMP, CABLE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037D92037-1712 CLAMPCLAMP
-
9207292072-1384 BANDBAND
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9216192161-0124 DAMPERDAMPER
-
9217192171-1798 CLAMPCLAMP
-
9219292192-0657 TUBE, CANISTER-1ST FTG, GREENTUBE, CANISTER-1ST FTG, GREEN
-
92192A92192-0660 TUBE, SEPARATOR-TANK, REDTUBE, SEPARATOR-TANK, RED
-
92192B92192-0692 TUBE, FITTING-SEP.WHITETUBE, FITTING-SEP.WHITE
-
92192C92192-0760 TUBE, 1ST FTG-2ND FTG, GREENTUBE, 1ST FTG-2ND FTG, GREEN
-
92192D92192-0761 TUBE, THROBO-FITTING, WHITETUBE, THROBO-FITTING, WHITE
-
92192E92192-0799 TUBE, TANK-SEPARATOR, BLUETUBE, TANK-SEPARATOR, BLUE
-
92192F92192-0824 TUBE, CANISTER-SEPARATOR, BLUETUBE, CANISTER-SEPARATOR, BLUE
