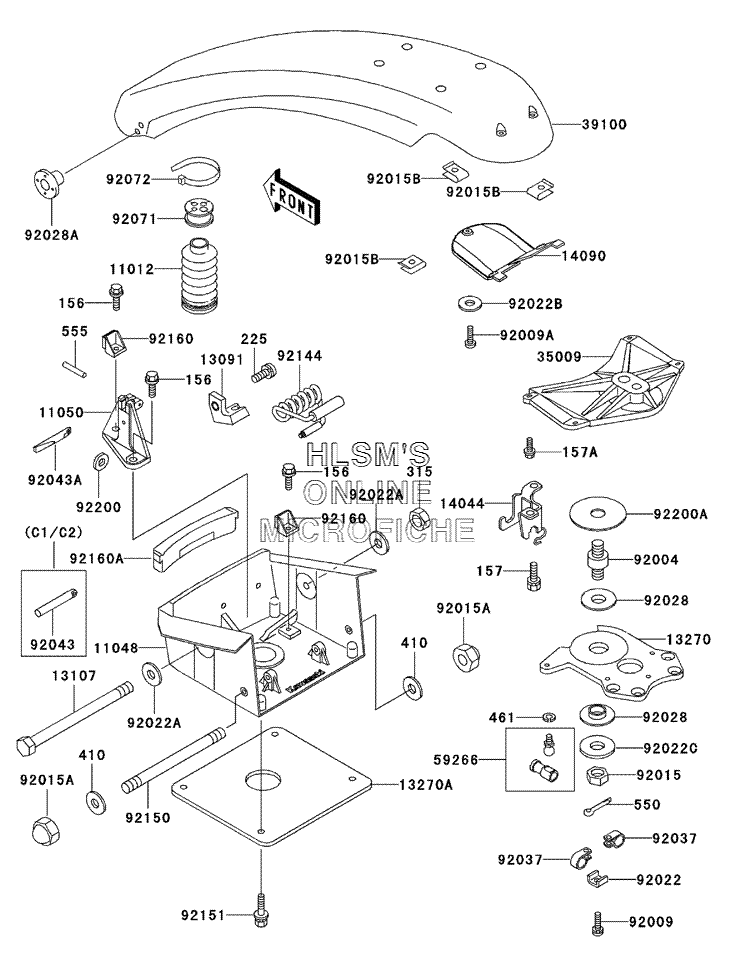

HANDLE POLE для Kawasaki SXI PRO (JS750-C5) - 2002 года выпуска
-
№АртикулНазвание
-
156156R0616 BOLT, WP, 6X16BOLT, WP, 6X16
-
157157R0616 BOLT, WSP, 6X16BOLT, WSP, 6X16
-
157A157R0620 BOLT, WSP, 6X20BOLT, WSP, 6X20
-
225225R0516 SCREW, PAN, WSP, CROS, 5X16SCREW, PAN, WSP, CROS, 5X16
-
1101211012-3754 CAPCAP
-
1104811048-3785-8C BRACKET, PIVOT SHAFT (J.WHITE)BRACKET, PIVOT SHAFT (J.WHITE)
-
1105011050-3733 BRACKETBRACKET
-
1309113091-3774 HOLDERHOLDER
-
1310713107-3725 SHAFT, PIVOTSHAFT, PIVOT
-
1327013270-3805 PLATE, HANDLEBERPLATE, HANDLEBER
-
13270A13270-3890 PLATEPLATE
-
1404414044-3716 HOLDER, CABLEHOLDER, CABLE
-
1409014090-3708-5M COVER, HANDLE POLE (BLACK MICA)COVER, HANDLE POLE (BLACK MICA)
-
3500935009-3707 BRACEBRACE
-
3910039100-3713-5M POLE, COMP, HANDLE (BLACK MICA)POLE, COMP, HANDLE (BLACK MICA)
-
5926659266-3707 JOINT, BALLJOINT, BALL
-
9200492004-3728 STUDSTUD
-
9200992009-3736 SCREW, 5X16SCREW, 5X16
-
92009A92009-3797 SCREW, 5X16SCREW, 5X16
-
9201592015-3006 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
92015A92015-3755 NUT, CAP, 6MMNUT, CAP, 6MM
-
92015B92015-3830 NUT, CLIP, 5MMNUT, CLIP, 5MM
-
9202292022-3014 WASHER, CLAMPWASHER, CLAMP
-
92022A92022-3738 WASHER, 15X34X2.0WASHER, 15X34X2.0
-
92022B92022-567 WASHERWASHER
-
92022C92022-571 WASHERWASHER
-
9202892028-3743 BUSHINGBUSHING
-
92028A92028-3752 BUSHING, STEERINGBUSHING, STEERING
-
9203792037-3007 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
92043A92043-3754 PIN, STOPPERPIN, STOPPER
-
9207192071-3788 GROMMETGROMMET
-
9207292072-3778 BAND, L=201BAND, L=201
-
9214492144-3735 SPRINGSPRING
-
9215092150-3787 BOLT, 6X119BOLT, 6X119
-
9215192151-3767 BOLT, 8X29BOLT, 8X29
-
9216092160-3790 DAMPERDAMPER
-
92160A92160-3846 DAMPERDAMPER
-
9220092200-3723 WASHER, 3.5X12X1WASHER, 3.5X12X1
-
92200A92200-3725 WASHER, 20.5X80X3WASHER, 20.5X80X3
-
315315R1400 NUT, HEX, FINE, 14MMNUT, HEX, FINE, 14MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
461461S0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
550550S4040 PIN, COTTER, 4X40PIN, COTTER, 4X40
-
555555B0325 PIN, SPRING, 3X25PIN, SPRING, 3X25
