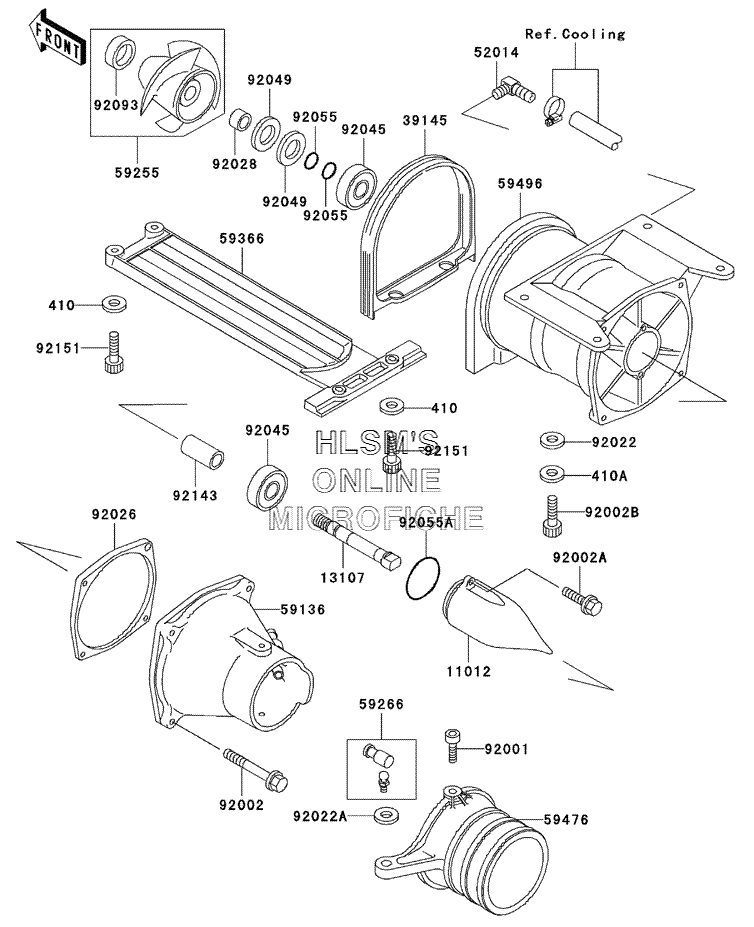

JET PUMP для Kawasaki SXI PRO (JS750-C5) - 2002 года выпуска
-
№АртикулНазвание
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
410A410S0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
1101211012-3712 CAP, JET PUMPCAP, JET PUMP
-
1310713107-3721 SHAFT, JET PUMPSHAFT, JET PUMP
-
3914539145-3735 TRIM, SEALTRIM, SEAL
-
5201452014-3708 ELBOWELBOW
-
5913659136-3730 NOZZLE, PUMPNOZZLE, PUMP
-
5925559255-3706 IMPELLER, COMPIMPELLER, COMP
-
5926659266-3707 JOINT, BALLJOINT, BALL
-
5936659366-3715 GRATEGRATE
-
5947659476-3713 NOZZLE, STRGNOZZLE, STRG
-
5949659496-3726 VANE, GUIDEVANE, GUIDE
-
9200192001-3701 BOLT, SOCKET, 6X11BOLT, SOCKET, 6X11
-
9200292002-3716 BOLT, 6X40BOLT, 6X40
-
92002A92002-3728 BOLT, 6X16BOLT, 6X16
-
92002B92002-3771 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9202292022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
92022A92022-567 WASHERWASHER
-
9202692026-3708 SPACER, JET PUMPSPACER, JET PUMP
-
9202892028-3717 BUSHING, 17X25X15BUSHING, 17X25X15
-
9204592045-3706 BEARING, BALL, #63032RDBEARING, BALL, #63032RD
-
9204992049-3714 SEAL, OIL, TBY25X47X6SEAL, OIL, TBY25X47X6
-
9205592055-1021 O-RING, OIL FILTERO-RING, OIL FILTER
-
92055A92055-3706 O-RINGO-RING
-
9209392093-3739 SEAL, JET PUMPSEAL, JET PUMP
-
9214392143-3708 COLLAR, 17.4X25.4X53COLLAR, 17.4X25.4X53
-
9215192151-3774 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
