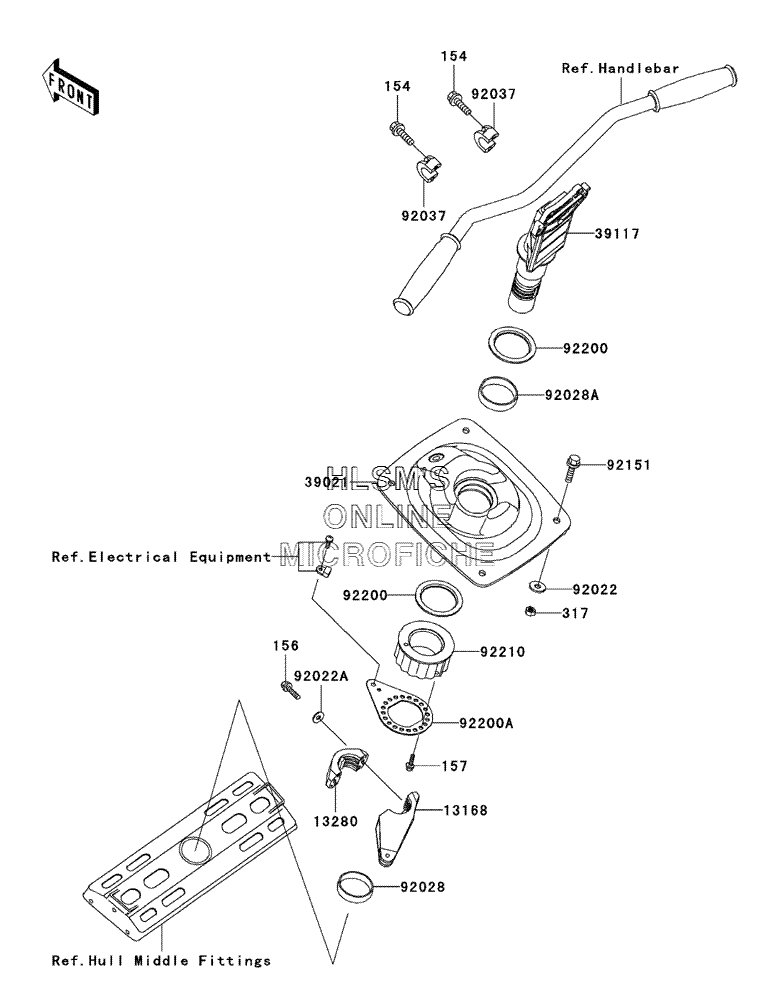

HANDLE POLE для Kawasaki ULTRA 150 (JH1200-B1) - 2003 года выпуска
-
№АртикулНазвание
-
154154R0830 BOLT, WP, SMALL, 8X30BOLT, WP, SMALL, 8X30
-
156156R0625 BOLT, WP, 6X25BOLT, WP, 6X25
-
157157R0518 BOLT, WSP, 5X18BOLT, WSP, 5X18
-
317317R0800 NUT, HEX, SMALLNUT, HEX, SMALL
-
1316813168-3741 LEVERLEVER
-
1328013280-3709 HOLDERHOLDER
-
3902139021-3711 BRACKET, HANDLE POLEBRACKET, HANDLE POLE
-
3911739117-3712 SHAFT, STEERINGSHAFT, STEERING
-
9202292022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
92022A92022-567 WASHERWASHER
-
9202892028-3761 BUSHINGBUSHING
-
92028A92028-3764 BUSHINGBUSHING
-
9203792037-503 CLAMP, HANDLEBARCLAMP, HANDLEBAR
-
9215192151-3771 BOLT, 8X30BOLT, 8X30
-
9220092200-3756 WASHERWASHER
-
92200A92200-3785 WASHERWASHER
-
9221092210-3732 NUTNUT
Все узлы модели:
- BILGE SYSTEM
- CABLES
- CARBURETOR
- CARBURETOR PARTS
- CONTROL
- COOLING
- CRANKCASE
- CRANKSHAFT/PISTON(S)
- CYLINDER HEAD/CYLINDER
- DECALS
- DRIVE SHAFT
- ELECTRICAL EQUIPMENT
- ENGINE COVER(S)
- ENGINE MOUNT
- FLAME ARRESTER
- FUEL TANK
- GENERATOR
- • HANDLE POLE
- HANDLEBAR
- HULL
- HULL FRONT FITTINGS
- HULL MIDDLE FITTINGS
- HULL REAR FITTINGS
- IGNITION SYSTEM
- JET PUMP
- LABELS
- MANUALS
- METERS
- MUFFLER(S)
- OIL PUMP
- OIL TANK
- OPTIONAL PARTS
- OWNER TOOLS
- PADS
- SEAT
- STARTER MOTOR
