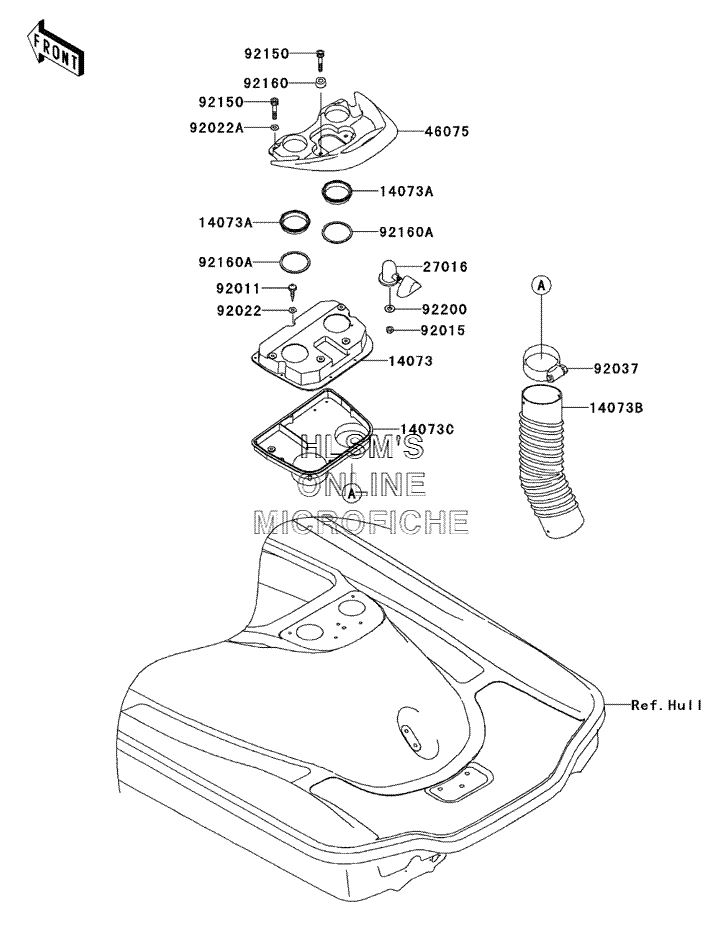

HULL REAR FITTINGS для Kawasaki ULTRA 150 (JH1200-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1407314073-3767 DUCT, REAR, UPPERDUCT, REAR, UPPER
-
14073A14073-3769 DUCTDUCT
-
14073B14073-3771 DUCTDUCT
-
14073C14073-3782 DUCT, REAR, LOWERDUCT, REAR, LOWER
-
2701627016-3744-6Z LOCK, ASSY., SEAT (F.BLACK)LOCK, ASSY., SEAT (F.BLACK)
-
4607546075-3746-6Z GRIP, TAIL (F.BLACK)GRIP, TAIL (F.BLACK)
-
9201192011-562 SCREWSCREW
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-3041 WASHER, 5X16X1.5WASHER, 5X16X1.5
-
92022A92022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9203792037-3733 CLAMP, MAX120.7MMCLAMP, MAX120.7MM
-
9215092150-3822 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9216092160-3738 DAMPERDAMPER
-
92160A92160-3910 DAMPERDAMPER
-
9220092200-3717 WASHER, 8.5X25X1.5WASHER, 8.5X25X1.5
