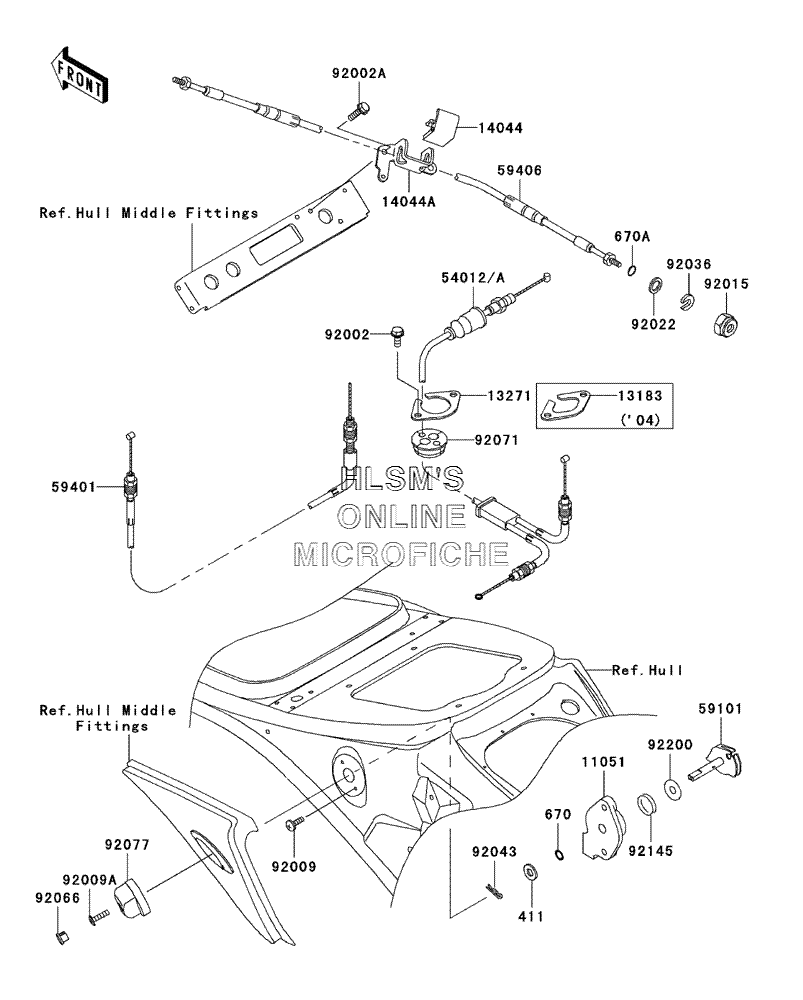

CABLES для Kawasaki 1200 STX-R (JT1200-C1) - 2004 года выпуска
-
№АртикулНазвание
-
411411S0800 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
670670B1508 O-RING, 8MMO-RING, 8MM
-
670A670B2011 O-RING, 11MMO-RING, 11MM
-
1105111051-3744 BRACKET, STARTER CABLEBRACKET, STARTER CABLE
-
1318313183-3810 PLATEPLATE
-
1404414044-3714 HOLDER, CABLE, STEERINGHOLDER, CABLE, STEERING
-
14044A14044-3717 HOLDER, CABLE, STEERINGHOLDER, CABLE, STEERING
-
5401254012-3768 CABLE, THROTTLECABLE, THROTTLE
-
5910159101-3715 REELREEL
-
5940159401-3727 CABLE, CHOKECABLE, CHOKE
-
5940659406-3778 CABLE, STEERINGCABLE, STEERING
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
92002A92002-3755 BOLT, 6X20BOLT, 6X20
-
9200992009-3789 SCREW, 5X16SCREW, 5X16
-
92009A92009-3838 SCREW, 4X12SCREW, 4X12
-
9201592015-526 NUT, 20MMNUT, 20MM
-
9202292022-535 WASHERWASHER
-
9203692036-501 RING, SNAPRING, SNAP
-
9204392043-3752 PINPIN
-
9206692066-3770-6Z PLUG, FUEL AND CHOKE KNOB (F.BLACK)PLUG, FUEL AND CHOKE KNOB (F.BLACK)
-
9207192071-3790 GROMMET, HARNESSGROMMET, HARNESS
-
9207792077-3732-6Z KNOB, FUEL AND CHOKE (F.BLACK)KNOB, FUEL AND CHOKE (F.BLACK)
-
9214592145-3712 SPRINGSPRING
-
9220092200-3770 WASHER, 8.5X34X0.5WASHER, 8.5X34X0.5
