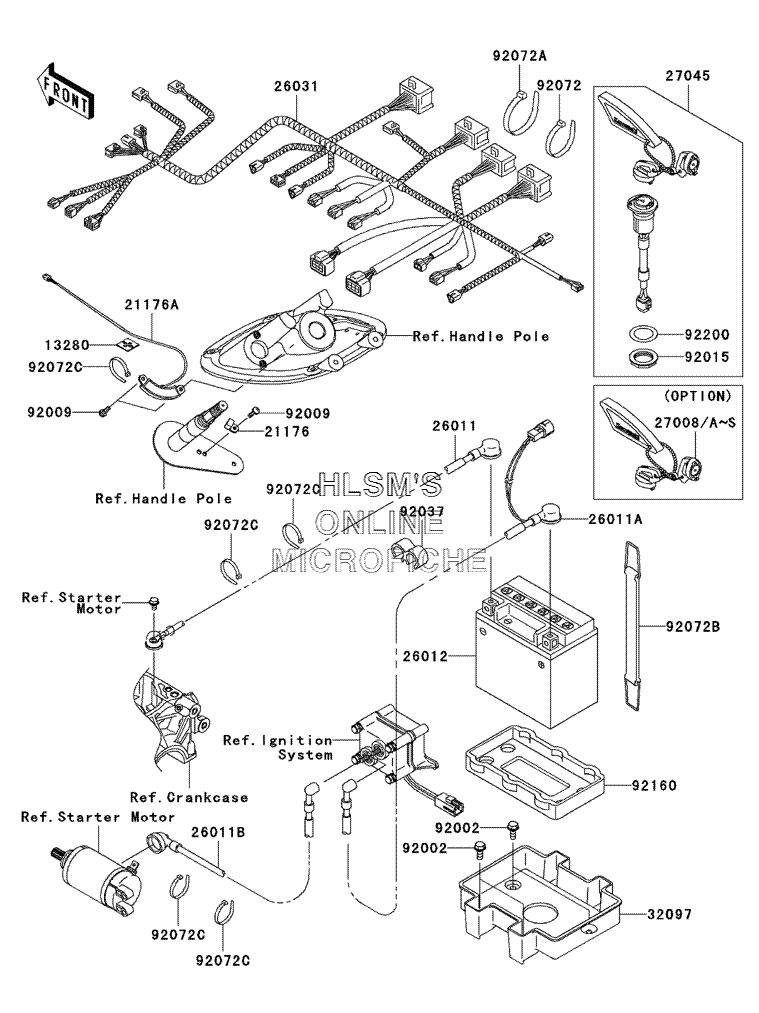

ELECTRICAL EQUIPMENT для Kawasaki 1200 STX-R (JT1200-C1) - 2004 года выпуска
-
№АртикулНазвание
-
1328013280-3739 HOLDERHOLDER
-
2117621176-3746 SENSOR, MAGNETSENSOR, MAGNET
-
21176A21176-3748 SENSOR, HOLE ICSENSOR, HOLE IC
-
2601126011-3876 WIRE, LEAD, BATTERY (-) STARTERWIRE, LEAD, BATTERY (-) STARTER
-
26011A26011-3898 WIRE, LEAD, BATTERY (+) RELAYWIRE, LEAD, BATTERY (+) RELAY
-
26011B26011-3899 WIRE, LEAD, RELAY, STARTERWIRE, LEAD, RELAY, STARTER
-
2601226012-3730 BATTERY, YTX20L, BS, 12V 18AHBATTERY, YTX20L, BS, 12V 18AH
-
2603126031-3708 HARNESS, MAINHARNESS, MAIN
-
2700827008-3745 KEY, LOCK, MAGNETIC SW, #3001 (OPT)KEY, LOCK, MAGNETIC SW, #3001 (OPT)
-
27008A27008-3746 KEY, LOCK, MAGNETIC SW, #3002 (OPT)KEY, LOCK, MAGNETIC SW, #3002 (OPT)
-
27008B27008-3747 KEY, LOCK, MAGNETIC SW, #3003 (OPT)KEY, LOCK, MAGNETIC SW, #3003 (OPT)
-
27008C27008-3748 KEY, LOCK, MAGNETIC SW, #3004 (OPT)KEY, LOCK, MAGNETIC SW, #3004 (OPT)
-
27008D27008-3749 KEY, LOCK, MAGNETIC SW, #3005 (OPT)KEY, LOCK, MAGNETIC SW, #3005 (OPT)
-
27008E27008-3750 KEY, LOCK, MAGNETIC SW, #3006 (OPT)KEY, LOCK, MAGNETIC SW, #3006 (OPT)
-
27008F27008-3751 KEY, LOCK, MAGNETIC SW, #3007 (OPT)KEY, LOCK, MAGNETIC SW, #3007 (OPT)
-
27008G27008-3752 KEY, LOCK, MAGNETIC SW, #3008 (OPT)KEY, LOCK, MAGNETIC SW, #3008 (OPT)
-
27008H27008-3753 KEY, LOCK, MAGNETIC SW, #3009 (OPT)KEY, LOCK, MAGNETIC SW, #3009 (OPT)
-
27008I27008-3754 KEY, LOCK, MAGNETIC SW, #3010 (OPT)KEY, LOCK, MAGNETIC SW, #3010 (OPT)
-
27008J27008-3755 KEY, LOCK, MAGNETIC SW, #3011 (OPT)KEY, LOCK, MAGNETIC SW, #3011 (OPT)
-
27008K27008-3756 KEY, LOCK, MAGNETIC SW, #3012 (OPT)KEY, LOCK, MAGNETIC SW, #3012 (OPT)
-
27008L27008-3757 KEY, LOCK, MAGNETIC SW, #3013 (OPT)KEY, LOCK, MAGNETIC SW, #3013 (OPT)
-
27008M27008-3758 KEY, LOCK, MAGNETIC SW, #3014 (OPT)KEY, LOCK, MAGNETIC SW, #3014 (OPT)
-
27008N27008-3759 KEY, LOCK, MAGNETIC SW, #3015 (OPT)KEY, LOCK, MAGNETIC SW, #3015 (OPT)
-
27008O27008-3760 KEY, LOCK, MAGNETIC SW, #3016 (OPT)KEY, LOCK, MAGNETIC SW, #3016 (OPT)
-
27008P27008-3761 KEY, LOCK, MAGNETIC SW, #3017 (OPT)KEY, LOCK, MAGNETIC SW, #3017 (OPT)
-
27008Q27008-3762 KEY, LOCK, MAGNETIC SW, #3018 (OPT)KEY, LOCK, MAGNETIC SW, #3018 (OPT)
-
27008R27008-3763 KEY, LOCK, MAGNETIC SW, #3019 (OPT)KEY, LOCK, MAGNETIC SW, #3019 (OPT)
-
27008S27008-3764 KEY, LOCK, MAGNETIC SW, #3020 (OPT)KEY, LOCK, MAGNETIC SW, #3020 (OPT)
-
2704527045-3723 SWITCH, ASSY., MAINSWITCH, ASSY., MAIN
-
3209732097-3703 CASE, BATTERYCASE, BATTERY
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200992009-3868 SCREW, 5X16SCREW, 5X16
-
9201592015-3848 NUTNUT
-
9203792037-1603 CLAMP, HOSECLAMP, HOSE
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3509 BAND, L=292.1BAND, L=292.1
-
92072B92072-3805 BAND, 340X22BAND, 340X22
-
92072C92072-3871 BAND, L=99BAND, L=99
-
9216092160-3929 DAMPERDAMPER
-
9220092200-3736 WASHERWASHER
