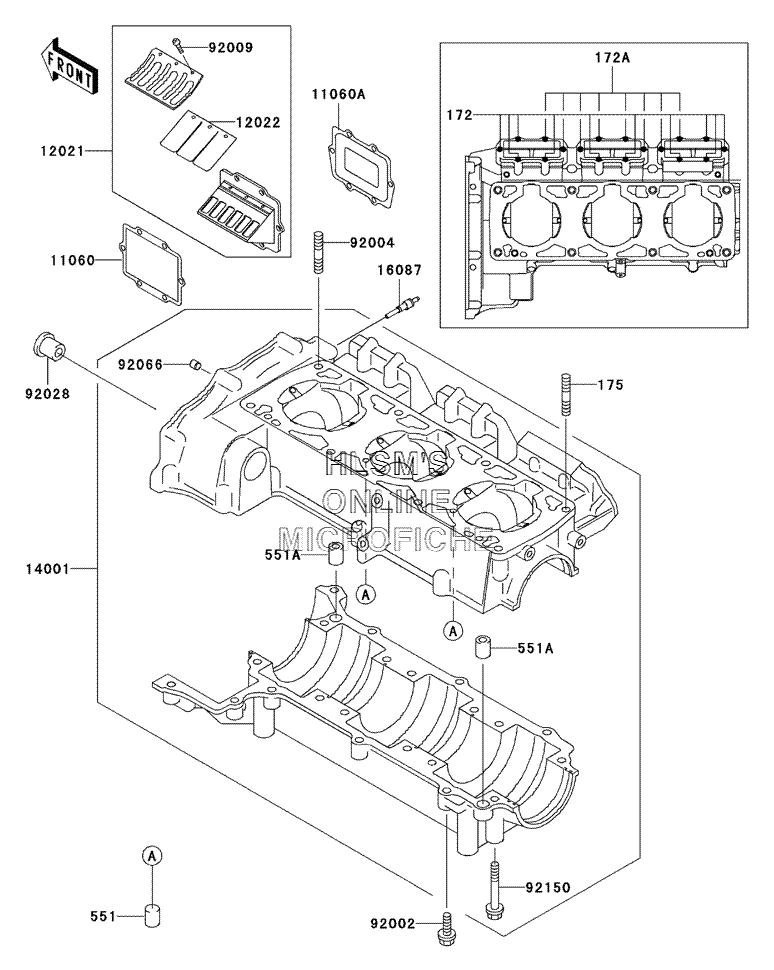

CRANKCASE для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
172172R0620 BOLT, STUDBOLT, STUD
-
172A172R0630 BOLT, STUDBOLT, STUD
-
175175R1035 BOLT, STUD, FINEBOLT, STUD, FINE
-
551551R0612 PIN, DOWELPIN, DOWEL
-
551A551R1012 PIN, DOWELPIN, DOWEL
-
1106011060-3717 GASKET, REED VALVEGASKET, REED VALVE
-
11060A11060-3757 GASKET, REED VALVEGASKET, REED VALVE
-
1202112021-3713 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1202212022-3711 VALVE, REEDVALVE, REED
-
1400114001-5385 SET, CRANKCASESET, CRANKCASE
-
1608716087-3713 VALVE, CHECKVALVE, CHECK
-
9200292002-3726 BOLT, 6X30BOLT, 6X30
-
9200492004-3752 STUD, CRANK CASESTUD, CRANK CASE
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9202892028-3718 BUSHINGBUSHING
-
9206692066-1213 PLUGPLUG
-
9215092150-3708 BOLT, 8X65BOLT, 8X65
