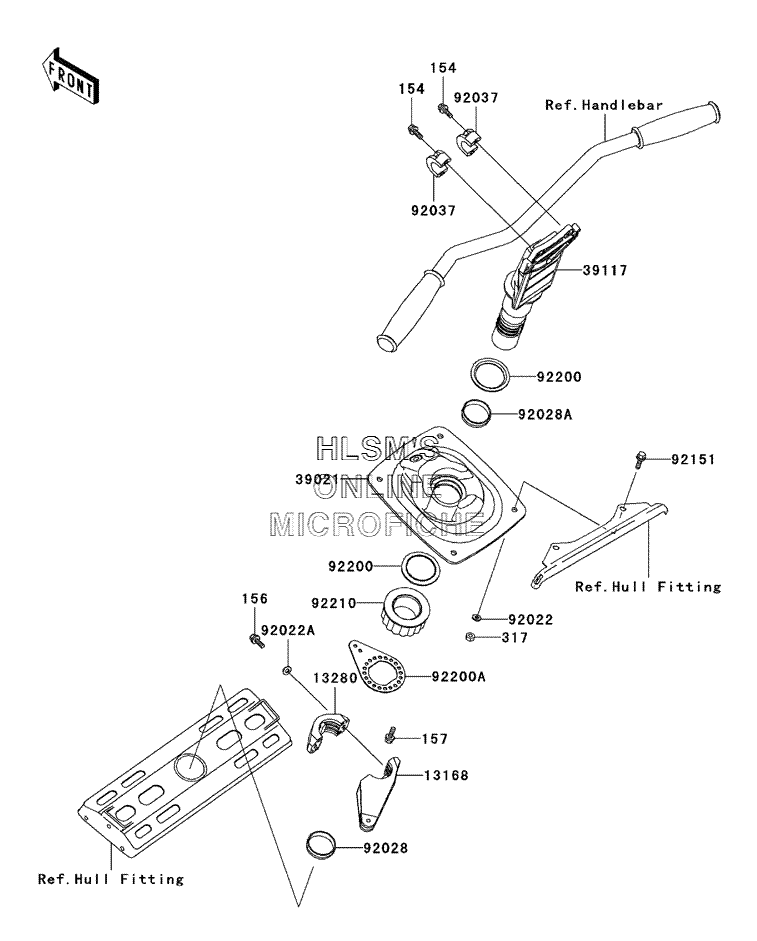

HANDLE POLE для Kawasaki ULTRA 130 (JH1100-B4) - 2004 года выпуска
-
№АртикулНазвание
-
154154R0830 BOLT, WP, SMALL, 8X30BOLT, WP, SMALL, 8X30
-
156156R0625 BOLT, WP, 6X25BOLT, WP, 6X25
-
157157R0518 BOLT, WSP, 5X18BOLT, WSP, 5X18
-
317317R0800 NUT, HEX, SMALLNUT, HEX, SMALL
-
1316813168-3741 LEVERLEVER
-
1328013280-3709 HOLDERHOLDER
-
3902139021-3711 BRACKET, HANDLE POLEBRACKET, HANDLE POLE
-
3911739117-3712 SHAFT, STRGSHAFT, STRG
-
9202292022-3744 WASHER, 8.4X23X2.5WASHER, 8.4X23X2.5
-
92022A92022-567 WASHERWASHER
-
9202892028-3761 BUSHINGBUSHING
-
92028A92028-3764 BUSHINGBUSHING
-
9203792037-503 CLAMP, HANDLEBARCLAMP, HANDLEBAR
-
9215192151-3771 BOLT, 8X30BOLT, 8X30
-
9220092200-3756 WASHERWASHER
-
92200A92200-3785 WASHERWASHER
-
9221092210-3732 NUTNUT
